Shadertoy tutorial

Shadertoy.com is a site that gathers user contributed GL shaders. It is a great resource for finding shader code and inspiration. In this tutorial we will take a shader from Shadertoy and make it run in Defold. Some basic understanding of shaders is assumed. If you need to read up, the Shader manual is a good place to start.

The shader we will use is Star Nest by Pablo Andrioli (user “Kali” on Shadertoy). It is a purely procedural mathematical black magic fragment shader that renders a really cool star field effect.

Star Nest

The shader is just 65 lines of quite complicated GLSL code, but don’t worry. We’re gonna treat it as a black box that does its thing based on a few simple inputs. Our job here is to modify the shader so it interfaces with Defold instead of Shadertoy.

Something to texture

The Star Nest shader is a pure fragment shader, so we only need something for the shader to texture. There are a number of options: a sprite, a tilemap, a GUI or a model. For this tutorial we are going to use a simple 3D model. The reason is that we can easily make the model rendering into a full screen effect—something we need to do if we want to do visual post processing, for example.

We can start from an empty project.

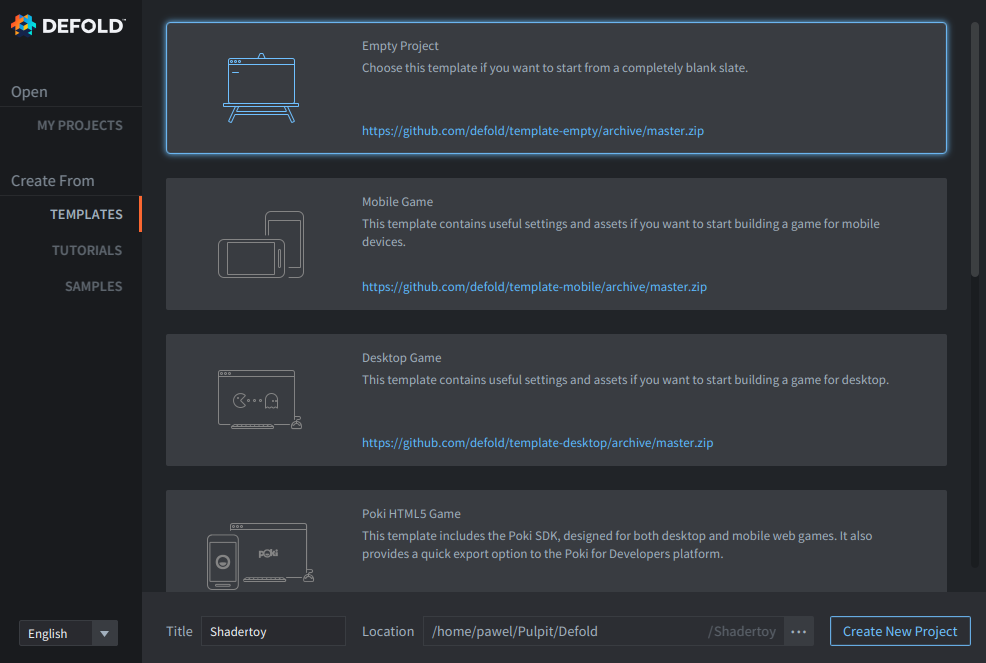

Open Defold and select Create From Templates.
Select Empty Project.
Set the Title and selection Location on your disk.
Click Create New Project.

start

You can use a built-in built-in quad.gltf mesh from builtins/assets/meshes.

Optionally, you can also create a quadratic plane mesh in Blender, or any other 3D modelling program — for convenience the 4 vertex coordinates are at -1 and 1 on the X-axis and -1 and 1 on the Y axis. Blender has the Z-axis up by default so you need to rotate the mesh 90° around the X-axis. You should also make sure that you generate correct UV-coordinates for the mesh. In Blender, enter Edit Mode with the mesh selected, then select Mesh ▸ UV unwrap... ▸ Unwrap.

Blender is a free, open-source 3D software which can be downloaded from blender.org.

quad in Blender

Open your “main.collection” file in Defold and create a new game object “star-nest”.
Add a Model component to the “star-nest” game object.
Set the Mesh property to our quad.gltf.
We need to set the material for the model, so for now select the built-in model.material.

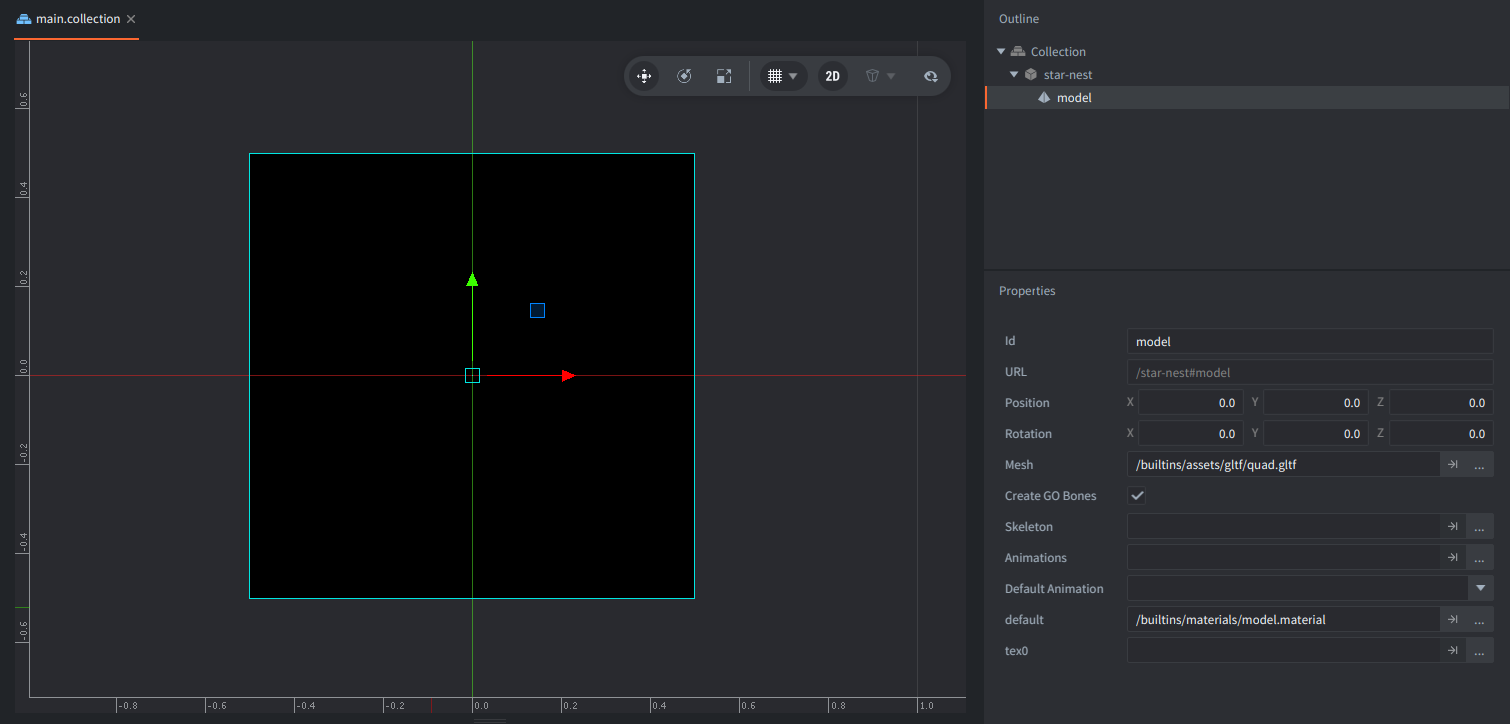

The model should appear in the scene editor, but it is rendered all black. That is because it has no texture set yet:

quad in Defold

Creating the material

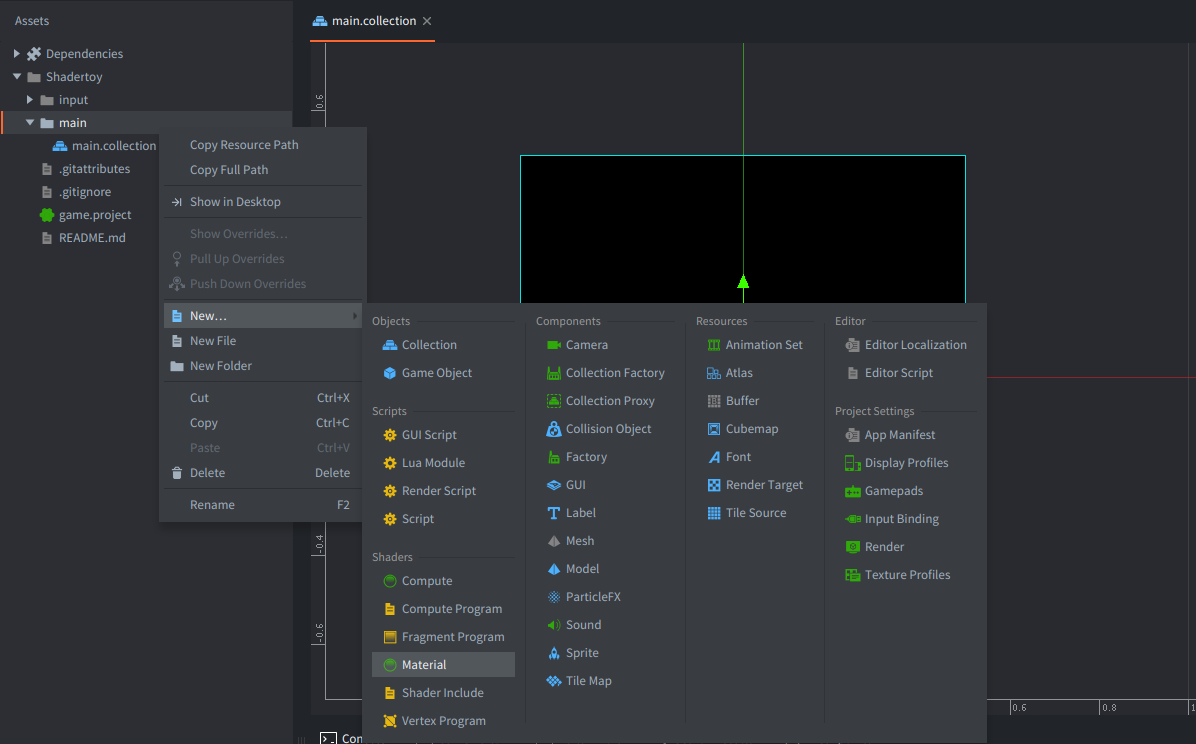

Create a new material file star-nest.material by clicking Right Mouse Button on the main folder in the Assets pane and selecting New->Material and naming it star-nest.

material

In the same way create a vertex shader program star-nest.vp and a fragment shader program star-nest.fp:
Open the star-nest.material.
Set the Vertex Program to star-nest.vp.
Set the Fragment Program to star-nest.fp.
Add a Vertex Constant and name it “view_proj” of type Viewproj (for “view projection”).
Add a tag “tile” to the Tags. This is so that the quad is included in the render pass when sprites and tiles are drawn.

material

Vertex program

Open the vertex shader program file star-nest.vp. It should contain the following code:

 #version 140

 // positions are in world space
 in vec4 position;
 in vec2 texcoord0;

 out vec2 var_texcoord0;

 uniform vertex_inputs
 {
     mat4 view_proj;
 };

 void main()
 {
     gl_Position = view_proj * vec4(position.xyz, 1.0);
     var_texcoord0 = texcoord0;
 }

Fragment program

Open the fragment shader program file star-nest.fp and modify the code so the fragment color is set based on the X and Y coordinates of the UV coordinates (var_texcoord0). We do this to make sure we have the model set up correctly:
```
 #version 140

 in vec2 var_texcoord0;

 out vec4 out_fragColor;

 void main()
 {
     out_fragColor = vec4(var_texcoord0.xy, 0.0, 1.0);
 }
```
Set the Material property to our newly created star-nest material on the model component in the star-nest game object in the main.collection.

Now the editor should render the model with the new shader and we can clearly see if the UV coordinates are correct; the bottom left corner should have black color (0, 0, 0), the top left corner green color (0, 1, 0), the top right corner yellow color (1, 1, 0) and the bottom right corner should have red color (1, 0, 0):

quad in Defold

Camera

We can now run our project (Project->Build or shortcut Ctrl/Cmd + B), but we will see a black screen (well, almost, except maybe one tiny pixel in the bottom left corner). This is because there is no camera, and default render script uses a simple fallback, that is showing a huge 2D space, while our model is in (0,0,0) position with only 1 width.

Let’s add a game object with a camera component to define what we’ll see in the game.

Add a game object named camera with position (0,0,1). (It’s important to set Z coordinate to 1, so that this game object is in front of our model, as Z axis is pointing now, in the default 2D setup, towards us).

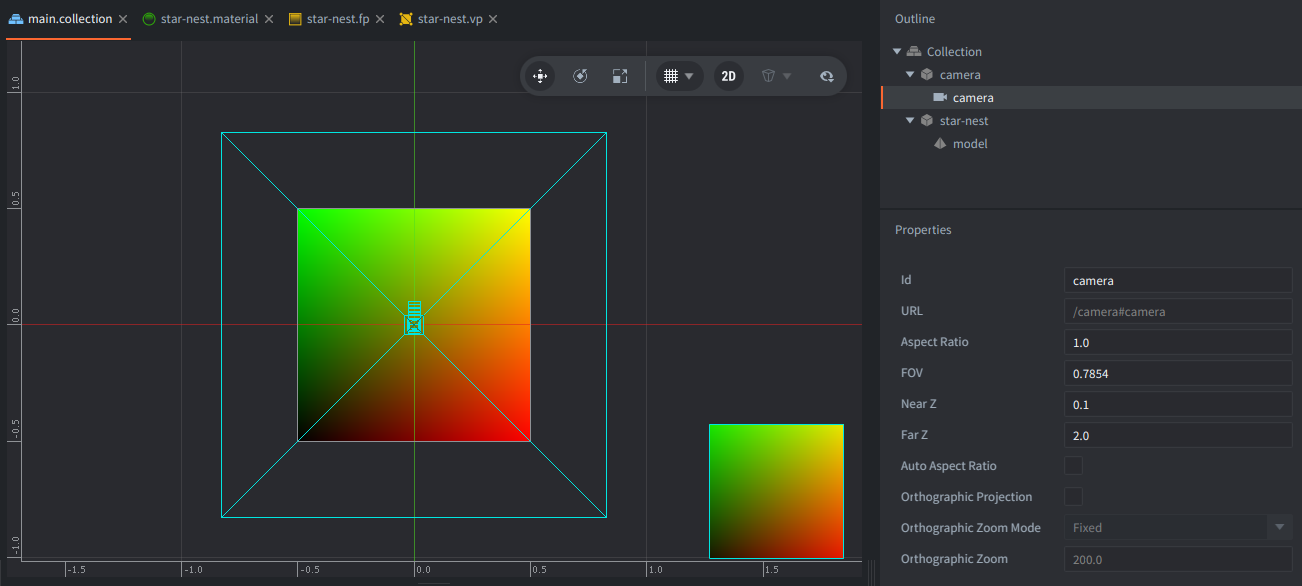

Add a Camera component and you’ll see a camera preview with our quad inside. With the default properties we are fortunate enough in such a setting to not need to change anything and we should already see the correct result, except only one thing - we don’t need such a huge camera view frustum, so we can reduce the Far Z to 2.

camera

Optionally, we can change the camera type by setting Orthographic Projection to true, and then also adjust the Orthographic Zoom to something like 600, but in this case we won’t have an automatic aspect ratio, so our model won’t fill our screen.

The star nest shader

Now everything is in place let’s start working on the actual shader code. Let’s first take a look at the original code. It consists of a few sections:

Star Nest shader code

We will use a modern pipeline with GLSL in version 140 - to do so, we’ll declare the version on top of the file with #version 140.

Lines 5–18 defines a bunch of constants. We can leave these as is. They are plain GLSL constants and do not depend on Shadertoy or Defold specifically.
Lines 21 and 63 contains the input fragment X and Y screen space texture coordinates (in vec2 fragCoord), and output fragment color (out vec4 fragColor).

Defold passes texture coordinates from the vertex shader to the fragment shader through an interpolated variable as UV coordinates (in the range 0–1). In our vertex shader this is declared with an out qualifier:
```
 // in star-nest.vp
 out vec2 var_texcoord0;
```
In the fragment shader the same value is received with an in qualifier:
```
 // in star-nest.fp
 in vec2 var_texcoord0;
```
Then, in GLSL 140, we declare an explicit fragment output with out qualifier:
```
 // in star-nest.fp
 out vec4 out_fragColor;
```
So where the original Shadertoy code writes to fragColor, our Defold shader writes to out_fragColor.
Lines 23–27 sets up the dimensions of the texture as well as movement direction and scaled time. In Shadertoy, the shader receives the pixel position through fragCoord and the viewport resolution of the viewport/texture is passed to the shader as uniform vec3 iResolution. The shader calculates UV style coordinates with the right aspect ratio from the fragment coordinates and the resolution. Some resolution offsetting is also done to get a nicer framing.

In Defold, we do not start from pixel coordinates. Instead, we already receive normalized UV coordinates from the vertex shader through var_texcoord0. These coordinates are in the 0.0 to 1.0 range across the rendered quad.

The Defold version needs to alter these calculations to use the UV coordinates from var_texcoord0. A typical conversion looks like this:
```
 vec2 uv = var_texcoord0.xy;
 uv = uv * 2.0 - 1.0;
 uv.x *= aspect;
```
The exact aspect value depends on how the example is set up. If the effect is rendered on a full-screen quad with a known display size, the aspect ratio can be hardcoded for the tutorial. If the effect needs to support arbitrary window sizes, pass the resolution as a fragment constant and place it inside a GLSL 140 uniform block.

Time is also set up here. It is passed to the shader as uniform float iGlobalTime. Defold (since 1.12.3) provides time to shaders via a special Time constant that we’ll use.

In modern Defold, non-opaque uniforms are declared inside uniform blocks. In the fragment shader we declare it like this:
```
 uniform fragment_inputs
 {
     vec4 time;
 };
```
Then, in the star-nest.material, we will add a Fragment Constant named time and set its type to Time.

The value can then be used like this:
```
 float iGlobalTime = time.x;
 float dt = time.y;
```
where time.x is the time since engine start, and time.y is the delta time from the previous frame.
Lines 29–39 sets up the rotation of the volumetric rendering, with mouse position affecting the rotation. The mouse coordinates are passed to the shader as uniform vec4 iMouse.

For this tutorial we are going to skip mouse input.
Lines 41–62 is the core of the shader. We can leave this code as is.

The modified star nest shader

Going through the sections above and doing the necessary changes results in the following shader code. It has been cleaned up a little for better readability. The differences between the Defold and Shadertoy versions are noted:

#version 140 // <1>

// Star Nest by Pablo Román Andrioli
// This content is under the MIT License.

#define iterations 17
#define formuparam 0.53

#define volsteps 20
#define stepsize 0.1

#define zoom   0.800
#define tile   0.850
#define speed  0.010

#define brightness 0.0015
#define darkmatter 0.300
#define distfading 0.730
#define saturation 0.850

in vec2 var_texcoord0; // <2>

out vec4 out_fragColor; // <3>

uniform fragment_inputs // <4>
{
	vec4 time;
};

void main() // <5>
{
	// get coords and direction
	vec2 res = vec2(1.0, 1.0); // <6>
	vec2 uv = var_texcoord0.xy * res.xy - 0.5;
	vec3 dir = vec3(uv * zoom, 1.0);

	float iGlobalTime = time.x; // <7>
	float shader_time = iGlobalTime * speed;

	float a1 = 0.5; // <8>
	float a2 = 0.8;
	mat2 rot1 = mat2(cos(a1), sin(a1), -sin(a1), cos(a1));
	mat2 rot2 = mat2(cos(a2), sin(a2), -sin(a2), cos(a2));

	dir.xz *= rot1;
	dir.xy *= rot2;

	vec3 from = vec3(1.0, 0.5, 0.5);
	from += vec3(shader_time * 2.0, shader_time, -2.0);
	from.xz *= rot1;
	from.xy *= rot2;

	// volumetric rendering
	float s = 0.1;
	float fade = 1.0;
	vec3 v = vec3(0.0);

	for (int r = 0; r < volsteps; r++) {
		vec3 p = from + s * dir * 0.5;

		// tiling fold
		p = abs(vec3(tile) - mod(p, vec3(tile * 2.0)));

		float pa = 0.0;
		float a = 0.0;

		for (int i = 0; i < iterations; i++) {
			// the magic formula
			p = abs(p) / dot(p, p) - formuparam;

			// absolute sum of average change
			a += abs(length(p) - pa);
			pa = length(p);
		}

		// dark matter
		float dm = max(0.0, darkmatter - a * a * 0.001);

		a *= a * a;

		// dark matter, don't render near
		if (r > 6) {
			fade *= 1.0 - dm;
		}

		v += fade;

		// coloring based on distance
		v += vec3(s, s * s, s * s * s * s) * a * brightness * fade;

		fade *= distfading;
		s += stepsize;
	}

	// color adjust
	v = mix(vec3(length(v)), v, saturation);

	out_fragColor = vec4(v * 0.01, 1.0); // <9>
}

We declare #version 140 at the top of the file to use Defold’s modern GLSL pipeline. Then we leave the defines as is.
The vertex shader passes UV coordinates to the fragment shader through var_texcoord0. In GLSL 140, the fragment shader receives this interpolated value with the in qualifier.
In GLSL 140, the fragment shader should declare an explicit output variable instead of writing to gl_FragColor. Here we use out vec4 out_fragColor.
Defold’s Time material constant is exposed to the shader through a uniform block. In star-nest.material, add a Fragment Constant named time and set its type to Time.
Shadertoy uses mainImage(out vec4 fragColor, in vec2 fragCoord). In Defold we use the normal void main() entry point, read the interpolated UV coordinates from var_texcoord0, and write the final color to out_fragColor.
For this tutorial we define a static resolution/aspect value for the rendering. Currently the model is square, so we can use vec2 res = vec2(1.0, 1.0);. With a rectangular model of size 1280×720, we could instead use vec2 res = vec2(1.78, 1.0); and multiply the UV coordinates with that to preserve the correct aspect ratio.
The original Shadertoy shader uses iGlobalTime. In this Defold version, time.x contains the time since engine start, so we assign it to a local iGlobalTime variable and use it to animate the camera movement through the star field.
We keep this tutorial simple by removing the iMouse values altogether. The rotation itself is still kept, because it reduces visual symmetry in the volumetric rendering.
Finally, the shader writes the resulting fragment color to out_fragColor.

Save the fragment shader program. The model should now be nicely textured with a star field in the Scene editor and in runtime:

quad with starnest

Animation

The final piece of the puzzle is the introduction of time to make the stars move. Defold (since 1.12.3) provides this automatically through a fragment constant of type Time.

Open star-nest.material.
Add a Fragment Constant and name it “time”.
Set its Type to Time.

time constant

And that’s it! We already handle this time in the fragment shader. We are done!

Exercises

A fun continuation exercise is to add the original mouse movement input to the shader. You will need to create a new Fragment Constant, this time of type User and update it in on_input in some script that is detecting mouse movement using the go.set() function and setting the input coordinates to the new constant.
