Beginner

Snake

This tutorial walks you through the process of creating one of the most common classic games you can attempt to recreate. There are a lot of variations on this game, this one features a snake that eats “food” and that only grows when it eats. This snake also crawls on a playfield that contains obstacles.

What you’ll learn here?

In this tutorial you’ll learn how to:

• create a game from scratch in Defold
• set up and handle inputs
• create tilemaps and modify them in runtime
• write scripts in Lua

A note for beginners

This tutorial is designed for the beginners, but if you are completely new to Defold and the game development, we recommend reading some of the introductory manuals first, especially about Defold’s Building Blocks and the Glossary. If you don’t have Defold downloaded yet, check the Installation manual. It’s also recommended to check the Editor’s overview, to quickly dive into the Editor itself, but we also provide here screenshots for each step.

Creating the project

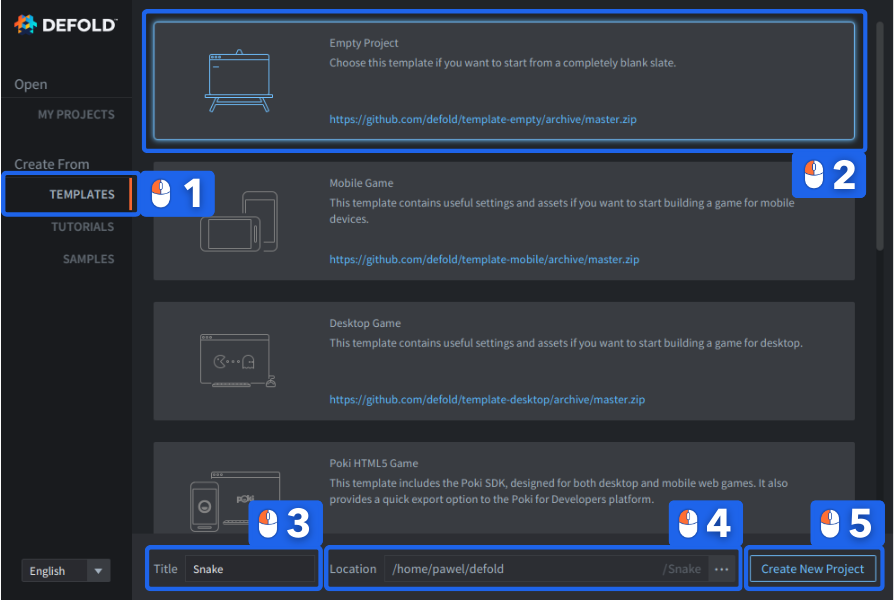

Start Defold and:

1. Select Create From ▸ Templates on the left side.
2. Select Empty Project.
3. Type a project name in Title.
4. Select a Location for the project.
5. Click Create New Project.

Done!

Project settings

We’ll start with defining the resolution of the game.

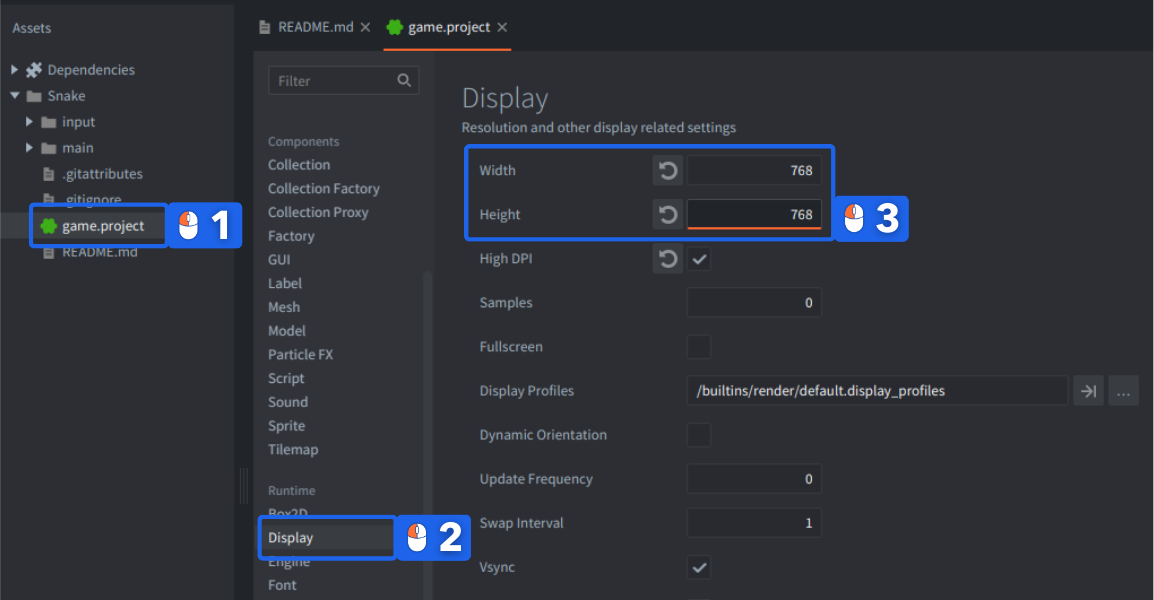

1. When the Editor is opened, search for the game.project file, on the left side, in the Assets pane. Double click on it to open.
2. Go to the Display section of the game.project file.
3. Set the dimensions of the game (Width and Height) to 768⨉768 or some other multiple of 16.

The reason why you want to do this is because the game will be drawn on a grid where each segment is going to be 16x16 pixels, and this way the game screen won’t cut off any partial segments. This game.project file contains all important settings of the projects - you can read about all of them in the Project Settings manual.

Done!

Creating new folders in Assets pane

Very little is needed in terms of graphics for a minimalist Snake clone. One 16⨉16 green segment for the snake, one white block for the obstacles and one, smaller red block representing the food.

First, create a directory for the assets in the Defold Editor:

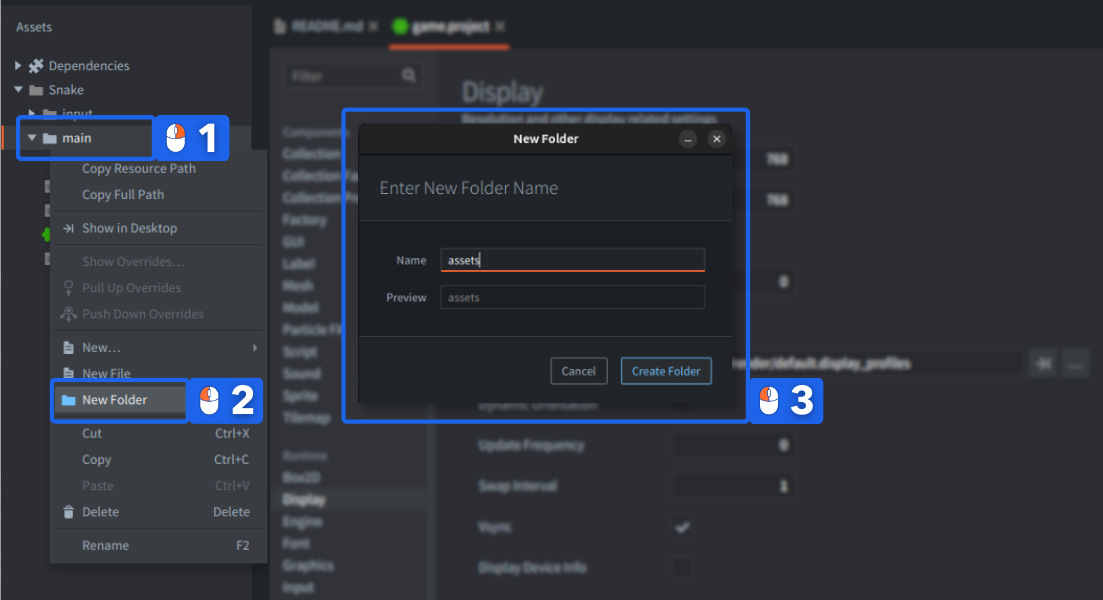

1. Right click on the main folder
2. Select New Folder.
3. A popup asking for a name will appear - type assets and click Create Folder.

Done!

Adding graphics to the game

This image below is the only asset you need:

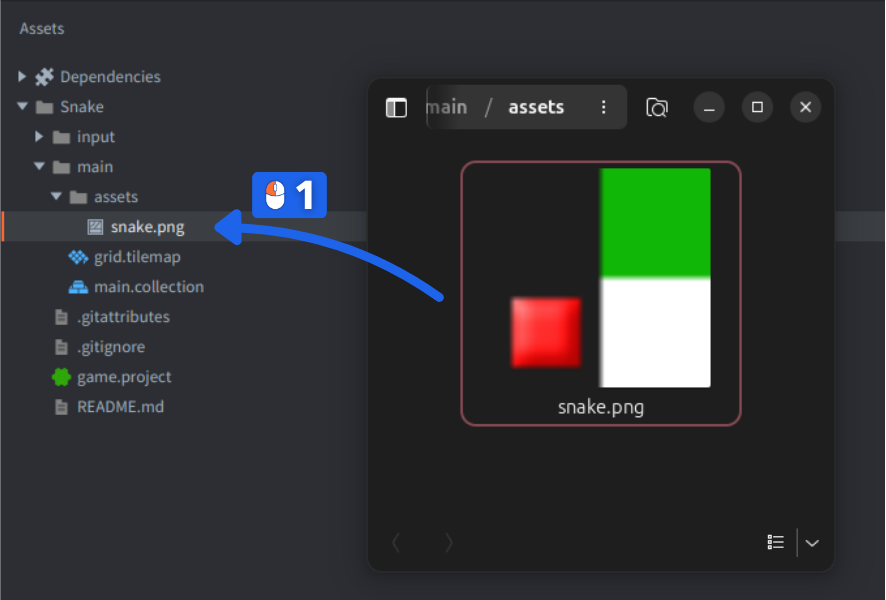

1. Right click the image above and save it to your local disk. Then, drag and drop (or copy + paste) the downloaded image to the new location in the project folder, that you just created.

You can also read more details about importing assets here.

Done!

Adding Tile Source

Defold provides a built-in Tilemap component that you will use to create the playfield consisting of the tiles aligned in a grid. A tilemap allows you to set and read individual tiles, which suits this game perfectly. Since tilemaps fetch their graphics from a Tilesource, you need to create one:

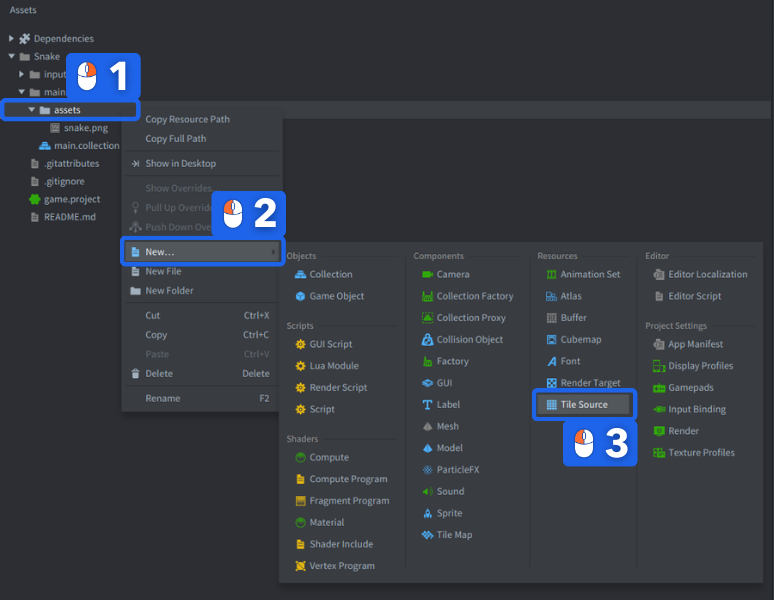

1. Right click the assets folder.
2. Select New ▸ Tile Source in the “Resources” section.
3. Name the new file “snake” (the editor will save the file as snake.tilesource).

The tilesource will open in a dedicated Tilesource Editor for this type of file, and you’ll be asked to provide an image for it, that is necessary. On the right side you can find a Properties pane:

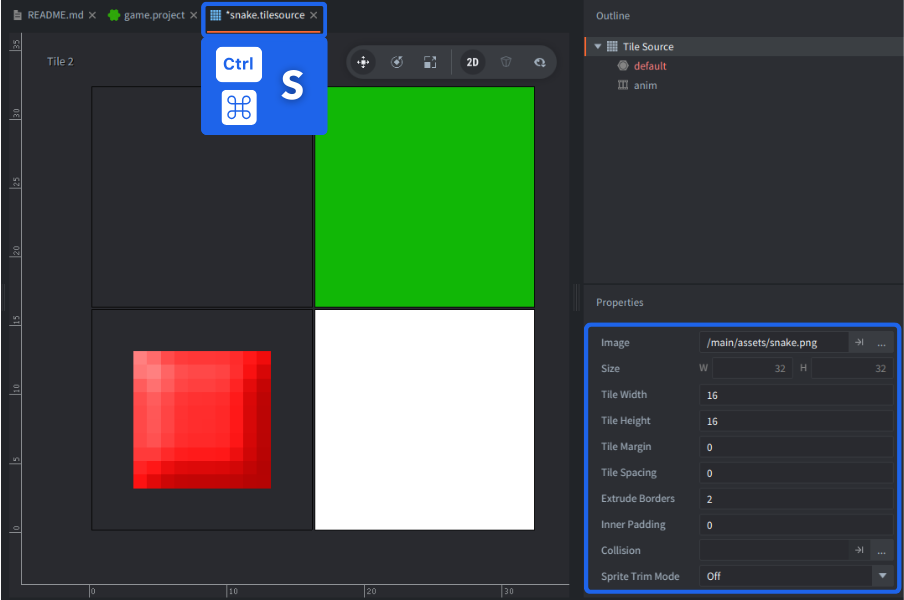

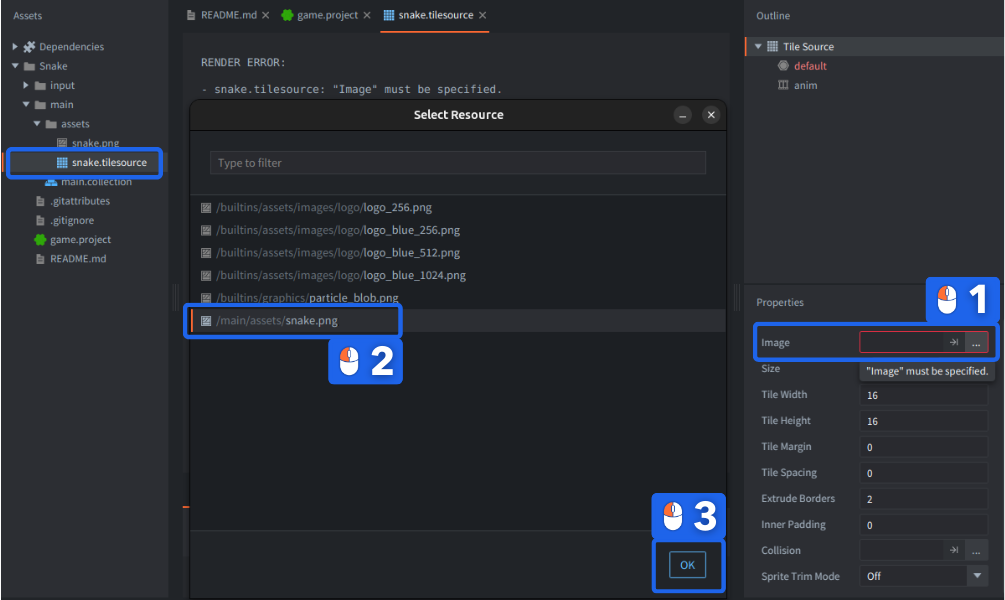

1. Set the Image property to the graphics file you just imported.

2. The Width and Height properties should be kept at 16 (default value). This will split the 32⨉32 pixel image into 4 tiles, numbered 1–4.

Note that the Extrude Borders property is set to 2 pixels. This is to prevent visual artifacts around the tiles that have graphics all the way out to the edge.

If you make any changes to a file an asterisk mark * appears next to its name on its tab. Select File ▸ Save All or use shortcut `Ctrl+S (⌘Cmd + S on Mac) to save all files.

Done!

Creating the playfield tilemap

Now you have a tilesource ready for use, so it’s time to create the playfield tilemap component:

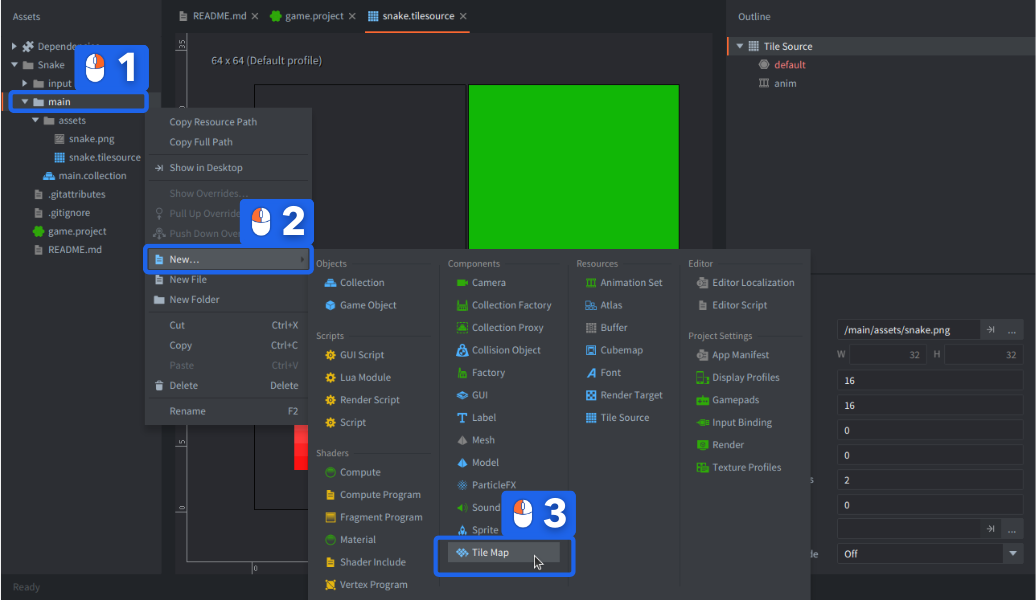

1. Right click the main folder and select New ▸ Tile Map in the “Components” section. Name the new file “grid” (the editor will save the file as “grid.tilemap”).

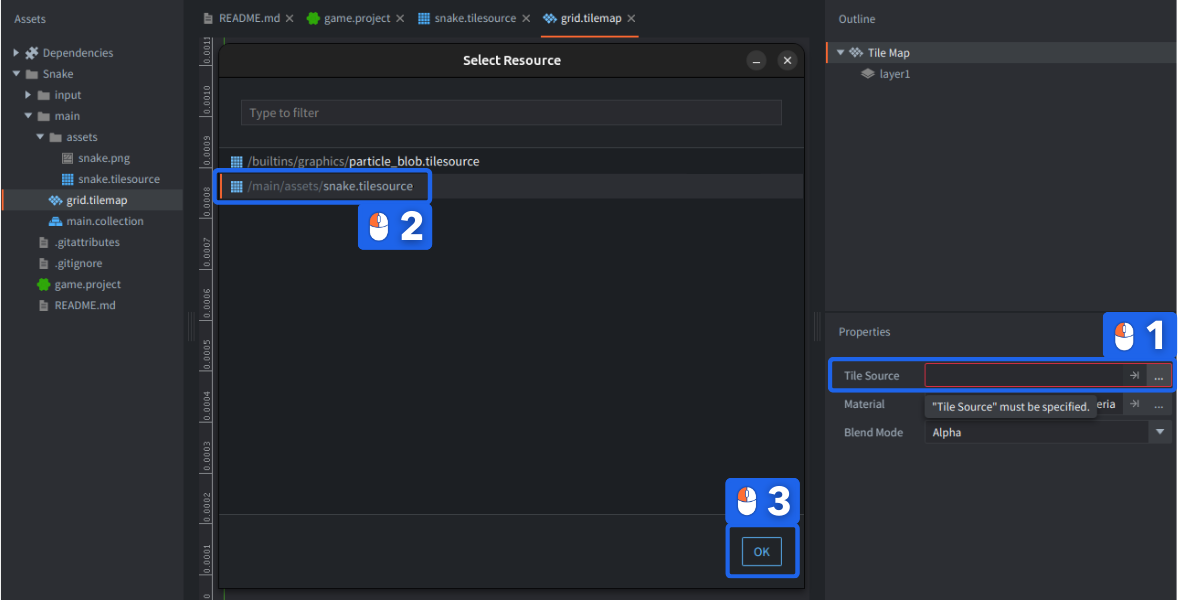

2. It will open in a Tilemap Editor, and highlight that it needs a Tile Source, so set the Tile Source property to the previously created “snake.tilesource”.

Done!

Drawing tiles in the tilemap

Defold only stores the area of the tilemap that is actually used so you need to add enough tiles to fill the boundaries of the screen.

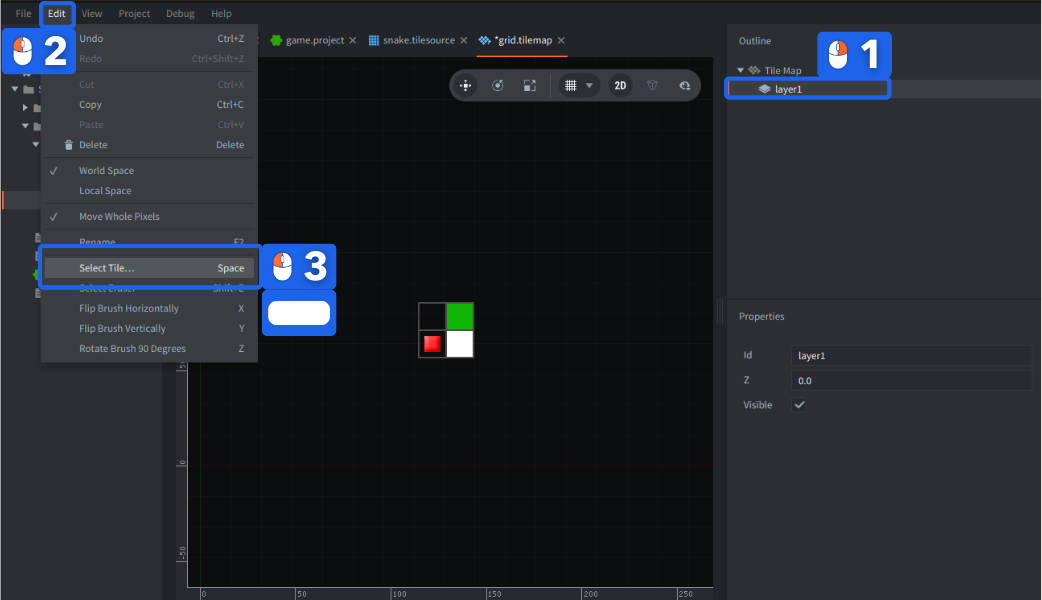

1. Select the layer1 layer in the Outline pane on the right side.

2. Choose the menu option Edit ▸ Select Tile... or shortcut Space to display the tile palette, then click the tile you want to use when painting.

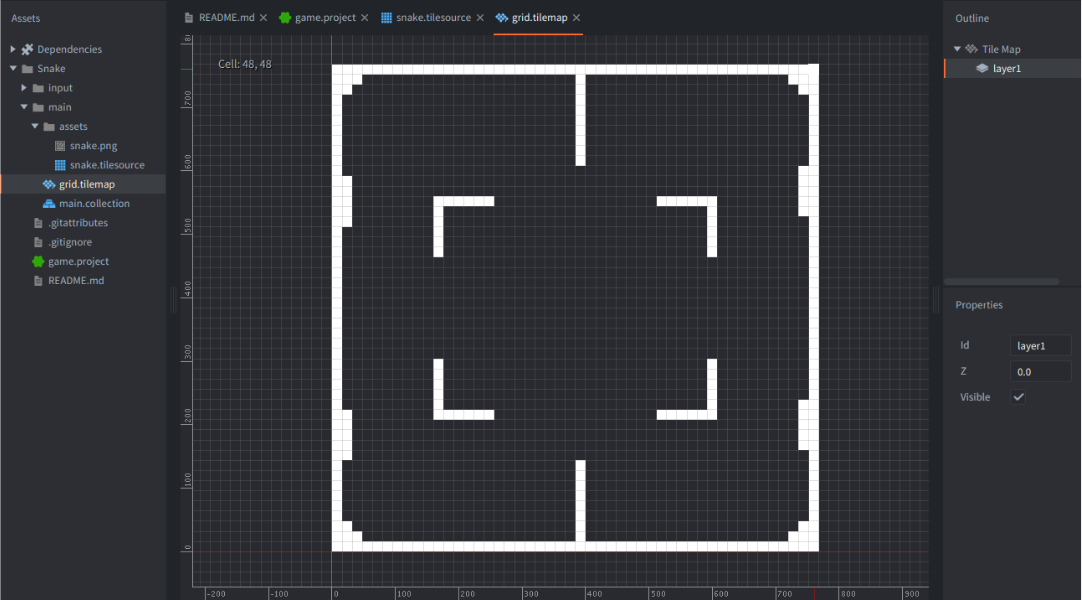

3. Paint a border around the edge of the screen and some obstacles.

You will need a tilemap of size 48x48 tiles (because our display is 768 and we have 16px tiles, so 768/16 = 48) to fill our game screen.

Save the tilemap when you are done.

Done!

Adding the tilemap to the game

Now we need to add our tilemap to the game. If you are familiar with Defold Building Blocks, components are part of Game Objects and game objects can be defined in the Collections.

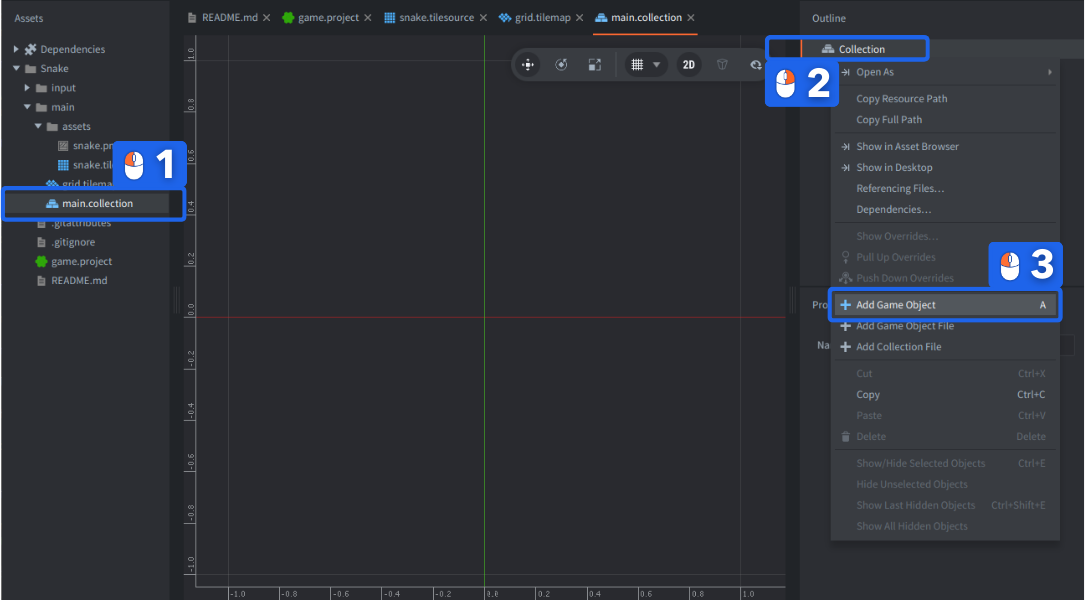

1. Open main.collection by double-clicking on it in the Assets pane. This is, in the Empty Project template by default, the bootstrap collection that is loaded on engine start.

2. Right click the root in the Outline and select Add Game Object which creates a new game object in the collection that is loaded when the game starts.

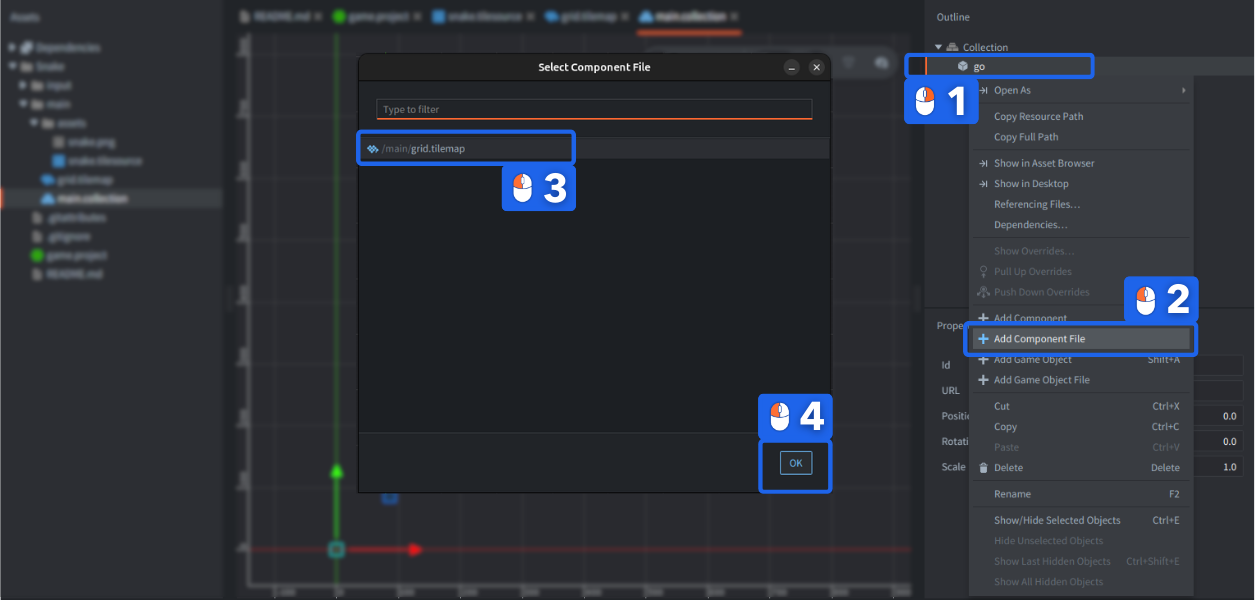

3. Right click the new game object and select Add Component File. Choose the file “grid.tilemap” that you just created.

Right now we have a tilemap in our game collection. It should be visible, when you run the game from the Editor.

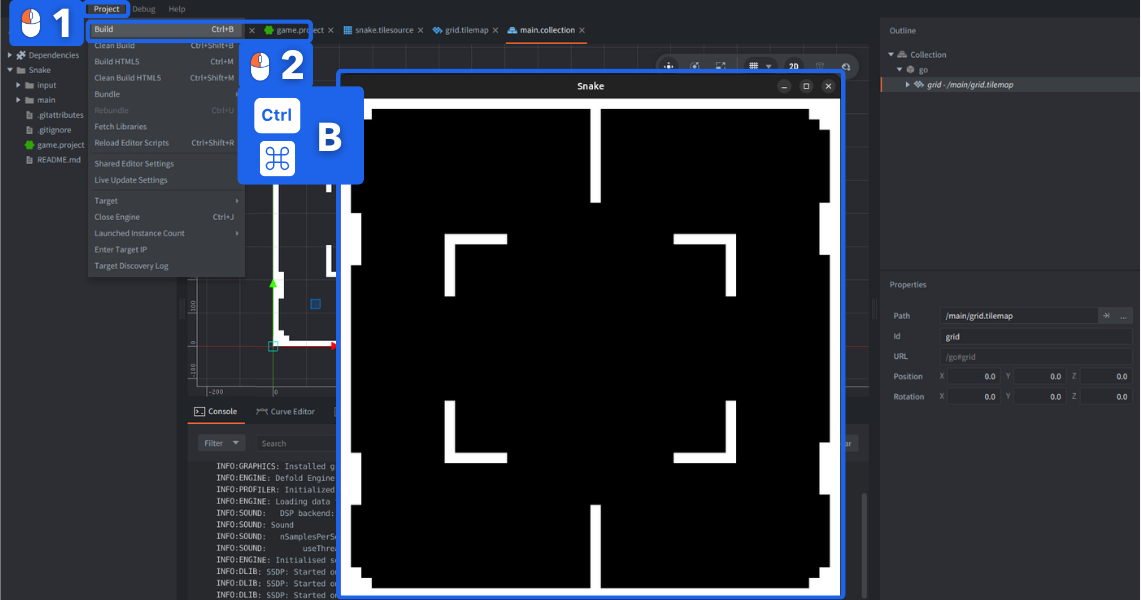

1. Select Project ▸ Build or shortcut Ctrl + B (⌘Cmd + B on Mac).

Done!

Adding a script to the game

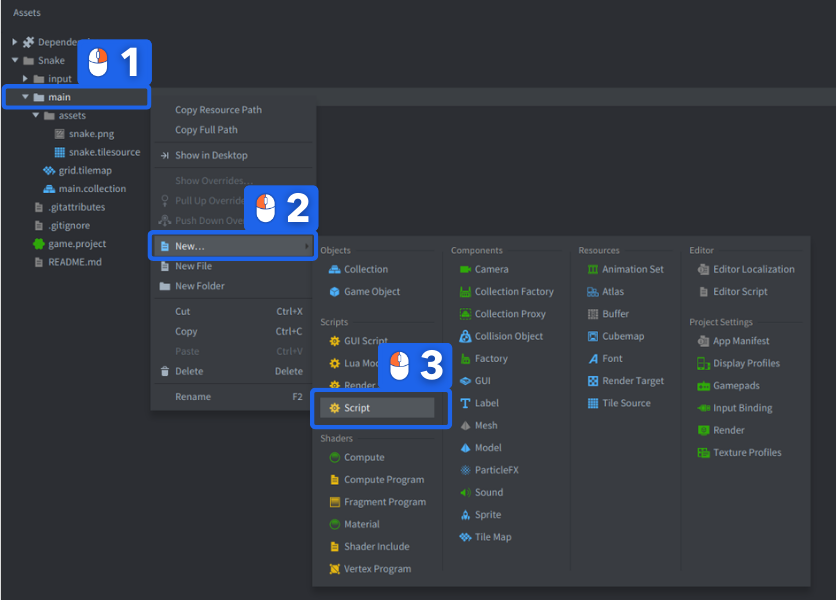

1. Right click the folder main in the Assets browser and select New ▸ Script in the Scripts section. Name the new script file “snake” (it will be saved as “snake.script”). This file will hold all the logic for the game.

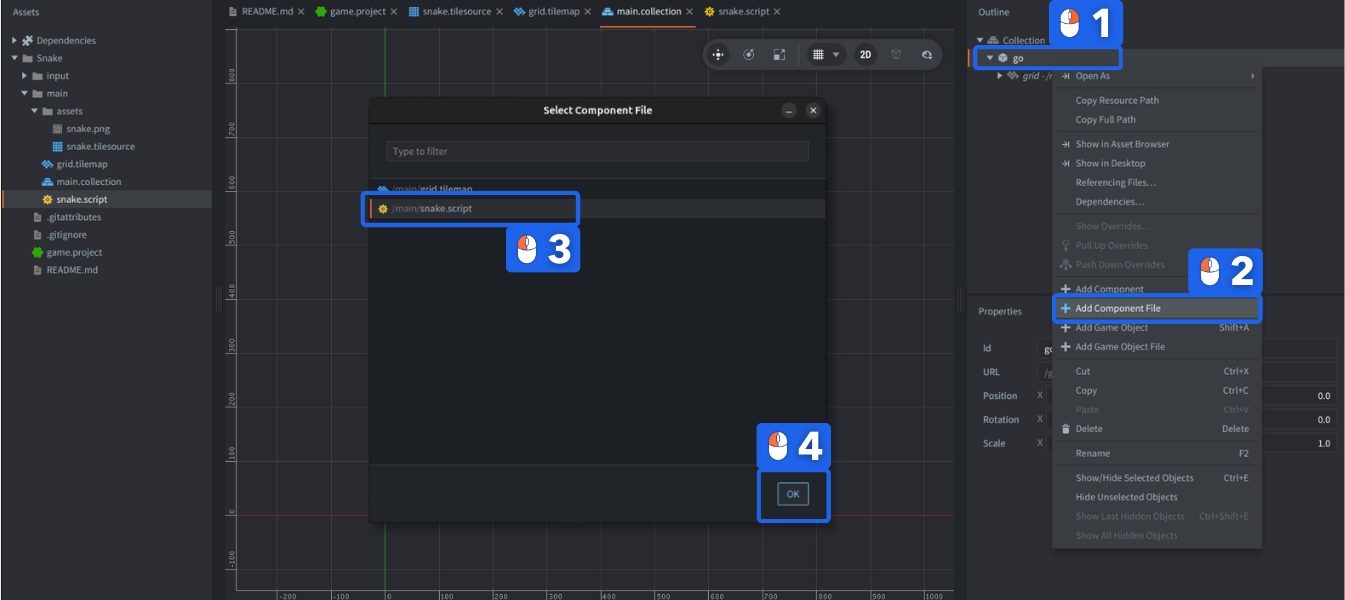

2. Go back to main.collection and right click the game object holding the tilemap. Select Add Component File and choose the file “snake.script”.

Now you have the tilemap component and the script in place.

Done!

The game script

The script you are going to write will drive all of the game. We will be adding features one by one.

Simple movement algorithm

The idea for how that is going to work is the following:

1. The script keeps a list of tile positions that the snake currently occupies.
2. If the player presses a directional key, store the direction the snake should be moving.
3. At a regular interval, move the snake one step in the current movement direction.

Initialization

Open snake.script and locate the init() function. This function is called by the engine when the script is initialized on game start. Change the code to the following:

function init(self)
    self.segments = { -- <1>
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0} -- <2>
    self.speed = 7.0 -- <3>
    self.time = 0 -- <4>
end

In this code we:

1. Store the segments of the snake as a Lua table named self.segments containing a list of tables, each holding a X and Y position for a segment.
2. Store the current direction as a table named self.dir holding an X and Y direction.
3. Store the current movement speed in self.speed, expressed as tiles per second.
4. Store a timer value in self.time that will be used to keep track of movement speed.

The script code above is written in the Lua language. There are a few things to note about the code, but if you won’t yet understand any of the below, don’t worry about it. Just tag along, experiment and give it time — you will get it eventually. For now, you can remember in init() we just initialized the variables that we will be using.

• Defold reserves a set of built-in callback functions that are called during the lifetime of a script component. These are not methods but plain functions.
• The runtime passes a reference to the current script component instance through the parameter self. The self reference is used to store instance data.
• The self reference can be used as a Lua table that you can store data in. Just use the dot notation as you would with any other table: self.data = "value". The reference is valid throughout the lifetime of the script, in this case from game start until you quit it.
• Lua table literals are written surrounded with curly braces {}.
• Table entries can be key/value pairs ({x = 10, y = 20}), nested Lua tables ({ {a = 1}, {b = 2} }) or other data types.

Done!

Update

The init() function is called exactly once, when the script component is instantiated into the running game. The function update(), however, is called once each frame, so 60 times a second by default. That makes the function ideal for real-time game logic.

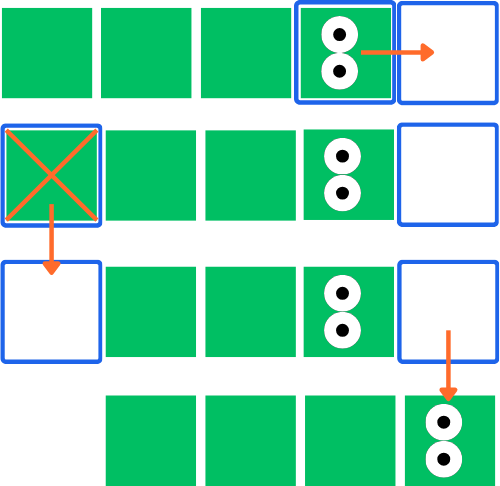

The idea for the update is this: at some set interval do the following:

1. Find where the head of the snake is, then make a new head in the position next to it that is offset by the current movement direction. So, if the snake is moving by X=1 and Y=0 and the current head is at location X=0 and Y=0, then the new head should be at X=1 and Y=0.
2. Save the new head position in the list of segments that constitutes the snake.
3. Get the position of the tail from the segment table.
4. Clear the tail tile at this position.
5. Draw all the snake segments (tiles) at positions from the table.

:::sidenote Keep in mind that our head of the snake is at the end of the table, and the tail is at the beginning. :::

1. Find the update() function in snake.script and change the code to the following:

function update(self, dt)
    self.time = self.time + dt -- <1>
    if self.time >= 1.0 / self.speed then -- <2>
        local head = self.segments[#self.segments] -- <3>

        local newhead = {
            x = head.x + self.dir.x,
            y = head.y + self.dir.y
        } -- <4>

        table.insert(self.segments, newhead) -- <5>

        local tail = table.remove(self.segments, 1) -- <6>

        tilemap.set_tile("#grid", "layer1", tail.x, tail.y, 0) -- <7>

        for i, s in ipairs(self.segments) do -- <8>
            tilemap.set_tile("#grid", "layer1", s.x, s.y, 2) -- <9>
        end

        self.time = 0 -- <10>
    end
end

In this code we:

1. Advance the timer with the time difference (in seconds) since the last time update() was invoked — so-called “delta time”, or dt.
2. If the timer has advanced enough:
3. Get the current head’s position. # is the operator used to get the length of a table given that it is used as an array, which it is in our case — all the segments are table values with no key specified.
4. Create a new head segment based on the current head location and the movement direction (self.dir).
5. Add the new head to the (end of the) segments table.
6. Pop the tail from the beginning of the segments table.
7. Clear the tile at the position of the removed tail. Our tilemap #grid has only 1 layer named layer1.
8. Loop through the elements in the segments table. Each iteration will have i set to the position in the table (starting from 1) and s set to the current segment.
9. Set the tile at the position of the segment to the value 2 (which is the tile with the green snake color).
10. When done, reset the timer to zero.

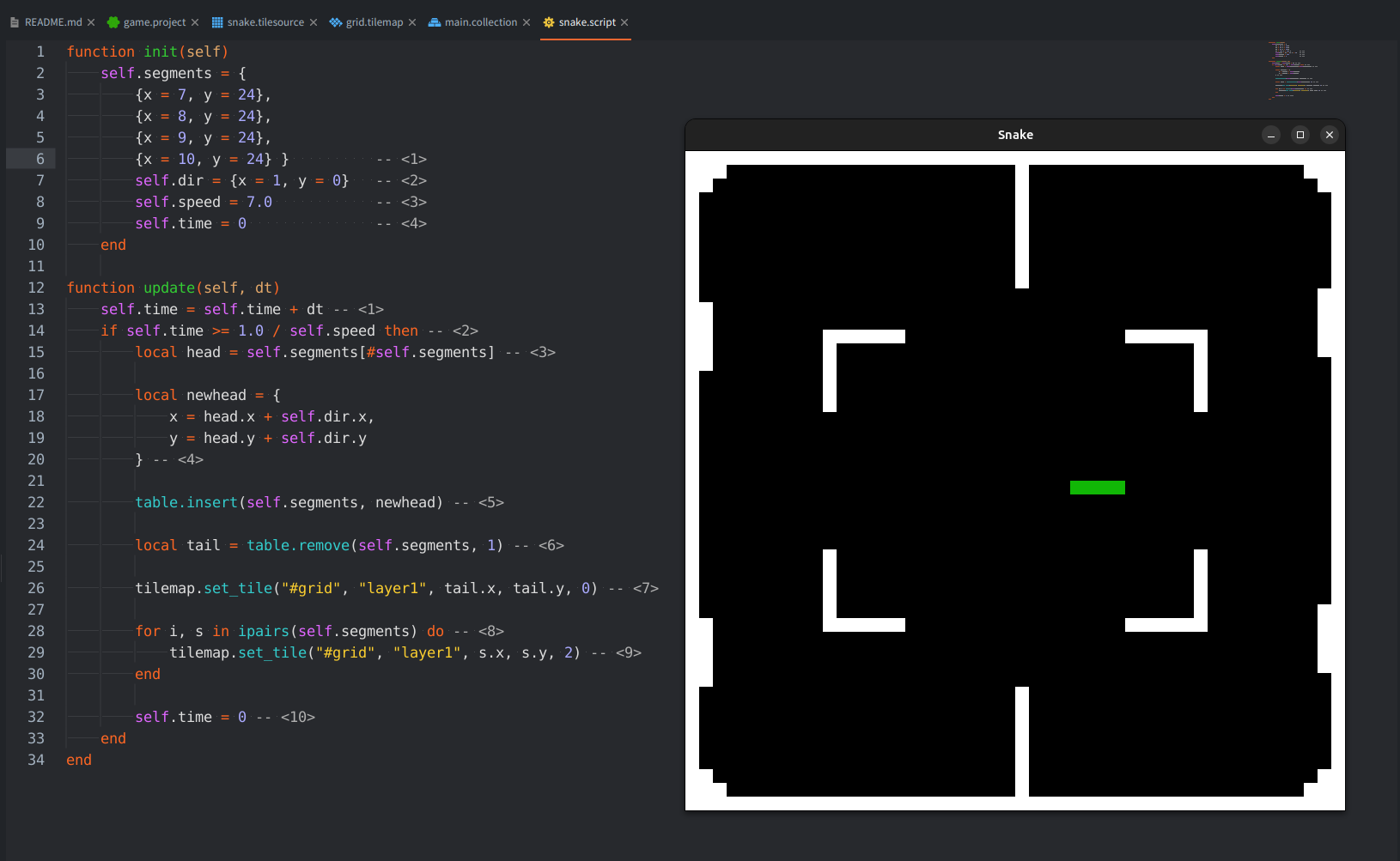

If you run the game now you should see the 4-segment-long snake crawl from left to right over the play field.

Done!

Player input

Before you add a code to react to the player input, you need to set up the input connections.

Input bindings

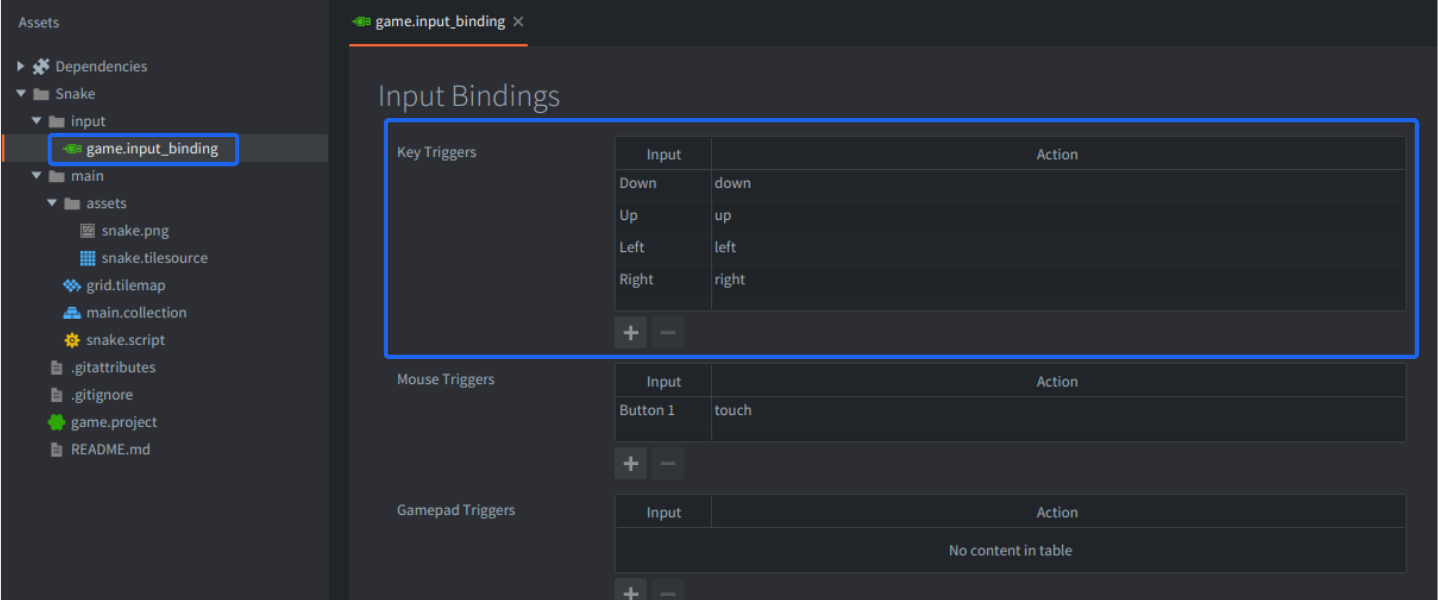

1. Find in the input folder the file game.input_binding and double click to open it.
2. Add a set of Key Trigger bindings for movement up, down, left and right. In the Input column select keyboard keys and in the Action columns type action names.

The input binding file maps actual user input (keys, mouse movements etc) to action names that are fed to scripts that have requested input.

Done!

Acquiring input focus

With bindings in place, open snake.script and add the following line at the beginning of the init() function:

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>

    self.segments = {
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0}
    self.speed = 7.0
    self.time = 0
end

The added line:

1. Send a message to the current game object (“.” is shorthand for the current game object) telling it to start receiving input from the engine.

Then find on_input function and type the following code:

function on_input(self, action_id, action)
    if action_id == hash("up") and action.pressed then -- <1>
        self.dir.x = 0 -- <2>
        self.dir.y = 1
    elseif action_id == hash("down") and action.pressed then
        self.dir.x = 0
        self.dir.y = -1
    elseif action_id == hash("left") and action.pressed then
        self.dir.x = -1
        self.dir.y = 0
    elseif action_id == hash("right") and action.pressed then
        self.dir.x = 1
        self.dir.y = 0
    end
end

These if...elseif... branches do the following:

1. If the input action “up” is received, as set up in the input bindings, and the action table has the pressed field set to true (player pressed the key) then:
2. Set the movement direction.

Run the game again and check that you are able to steer the snake.

Done!

Improving input handling

Now, notice that if you press two keys simultaneously, that will result in two calls to on_input(), one for each press. As the code is written above, only the call that happens last will have an effect on the snake’s direction since subsequent calls to on_input() will overwrite the values in self.dir.

Also note that if the snake moves left and you press the right key, the snake will steer into itself. The apparently obvious fix to this problem is by adding an additional condition to the if clauses in on_input():

if action_id == hash("up") and self.dir.y ~= -1 and action.pressed then
    ...
elseif action_id == hash("down") and self.dir.y ~= 1 and action.pressed then
    ...

However, if the snake is moving left and the player quickly presses first up, then right before the next movement step happens, only the right press will have an effect and the snake will move into itself. With the conditions added to the if clauses shown above, the input will be ignored. Not good!

A proper solution to this problem is to store the input in a queue and pull entries from that queue as the snake moves:

function init(self)
    msg.post(".", "acquire_input_focus")

    self.segments = {
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0}
    self.speed = 7.0
    self.time = 0

    self.dirqueue = {} -- <1>
end

This time, we:

1. Added a variable self.dirqueue that is initialized as an empty table.

In the update() function add:

function update(self, dt)
    self.time = self.time + dt
    if self.time >= 1.0 / self.speed then
        local newdir = table.remove(self.dirqueue, 1) -- <1>
        if newdir then
            local opposite = newdir.x == -self.dir.x or newdir.y == -self.dir.y -- <2>
            if not opposite then
                self.dir = newdir -- <3>
            end
        end

        local head = self.segments[#self.segments]
        local newhead = {x = head.x + self.dir.x, y = head.y + self.dir.y}

        table.insert(self.segments, newhead)

        local tail = table.remove(self.segments, 1)
        tilemap.set_tile("#grid", "layer1", tail.x, tail.y, 0)

        for i, s in ipairs(self.segments) do
            tilemap.set_tile("#grid", "layer1", s.x, s.y, 2)
        end

        self.time = 0
    end
end

1. Pull the first item from the direction queue.
2. If there is an item (newdir is not null) then check if newdir is pointing opposite to self.dir.
3. Only set new direction if it does not point opposite.

And modify on_input to store current input in the queue instead:

function on_input(self, action_id, action)
    if action_id == hash("up") and action.pressed then
        table.insert(self.dirqueue, {x = 0, y = 1}) -- <1>
    elseif action_id == hash("down") and action.pressed then
        table.insert(self.dirqueue, {x = 0, y = -1})
    elseif action_id == hash("left") and action.pressed then
        table.insert(self.dirqueue, {x = -1, y = 0})
    elseif action_id == hash("right") and action.pressed then
        table.insert(self.dirqueue, {x = 1, y = 0})
    end
end

1. Add input direction to the direction queue instead of setting self.dir directly.

Start the game and check that it plays as expected.

Done!

Food and collision with obstacles

The snake needs food on the map so it can grow long and fast. Let’s add that!

Spawning the food

Above the init() function add a new function:

local function put_food(self) -- <1>
    self.food = {x = math.random(2, 47), y = math.random(2, 47)} -- <2>
    tilemap.set_tile("#grid", "layer1", self.food.x, self.food.y, 3) -- <3>
end

In this function we:

1. Declare a new function called put_food() that puts a piece of food on the map.
2. Store a random X and Y position in a variable called self.food.
3. Set the tile at position X and Y to the value 3, which is the tile graphics for the food.

Then call it at the end of the init() function:

function init(self)
    msg.post(".", "acquire_input_focus")

    self.segments = {
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0}
    self.dirqueue = {}
    self.speed = 7.0
    self.time = 0

    math.randomseed(socket.gettime()) -- <1>
    put_food(self) -- <2>
end

1. Before starting to pull random values with math.random(), set the random seed, otherwise the same series of random values will be generated. This seed should only be set once.
2. Call the function put_food() at game start so the player begins with a food item on the map.

Done!

Eating the food

Now, detecting if the snake has collided with something is just a matter of looking at what’s on the tilemap where snake is heading and react.

Add a variable that keeps track of whether the snake is alive or not:

function init(self)
    msg.post(".", "acquire_input_focus")

    self.segments = {
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0}
    self.dirqueue = {}
    self.speed = 7.0
    self.time = 0

    self.alive = true -- <1>

    math.randomseed(socket.gettime())
    put_food(self)
end

1. A flag telling if the snake is alive or not.

Then add logic that tests for collision with wall/obstacle and food:

function update(self, dt)
    self.time = self.time + dt
    if self.time >= 1.0 / self.speed and self.alive then -- <1>
        local newdir = table.remove(self.dirqueue, 1)

        if newdir then
            local opposite = newdir.x == -self.dir.x or newdir.y == -self.dir.y
            if not opposite then
                self.dir = newdir
            end
        end

        local head = self.segments[#self.segments]
        local newhead = {x = head.x + self.dir.x, y = head.y + self.dir.y}

        table.insert(self.segments, newhead)

        local tile = tilemap.get_tile("#grid", "layer1", newhead.x, newhead.y) -- <2>

        if tile == 2 or tile == 4 then
            self.alive = false -- <3>
        elseif tile == 3 then
            self.speed = self.speed + 1 -- <4>
            put_food(self)
        else
            local tail = table.remove(self.segments, 1) -- <5>
            tilemap.set_tile("#grid", "layer1", tail.x, tail.y, 1)
        end

        for i, s in ipairs(self.segments) do
            tilemap.set_tile("#grid", "layer1", s.x, s.y, 2)
        end

        self.time = 0
    end
end

1. Only advance the snake if it’s alive.
2. Before drawing to the tilemap, read what’s at the position where the new snake head will be.
3. If the tile is an obstacle or another part of the snake, game over!
4. If the tile is food, increase the speed, then put out a new food item.
5. Note that the removal of the tail only happens if there is no collision. This means that if the player eats food, the snake will grow by one segment since no tail is removed on that move.

Now try the game and make sure it plays well!

This concludes the tutorial but please continue experimenting with the game and work through some of the exercises below!

Done!

The complete script

Here is the complete script code for reference:

local function put_food(self)
    self.food = {x = math.random(2, 47), y = math.random(2, 47)}
    tilemap.set_tile("#grid", "layer1", self.food.x, self.food.y, 3)
end

function init(self)
    msg.post(".", "acquire_input_focus")

    self.segments = {
        {x = 7, y = 24},
        {x = 8, y = 24},
        {x = 9, y = 24},
        {x = 10, y = 24}
    }
    self.dir = {x = 1, y = 0}
    self.dirqueue = {}
    self.speed = 7.0
    self.time = 0

    self.alive = true

    math.randomseed(socket.gettime())
    put_food(self)
end

function update(self, dt)
    self.time = self.time + dt
    if self.time >= 1.0 / self.speed and self.alive then
        local newdir = table.remove(self.dirqueue, 1)

        if newdir then
            local opposite = newdir.x == -self.dir.x or newdir.y == -self.dir.y
            if not opposite then
                self.dir = newdir
            end
        end

        local head = self.segments[#self.segments]
        local newhead = {x = head.x + self.dir.x, y = head.y + self.dir.y}

        table.insert(self.segments, newhead)

        local tile = tilemap.get_tile("#grid", "layer1", newhead.x, newhead.y)

        if tile == 2 or tile == 4 then
            self.alive = false
        elseif tile == 3 then
            self.speed = self.speed + 1
            put_food(self)
        else
            local tail = table.remove(self.segments, 1)
            tilemap.set_tile("#grid", "layer1", tail.x, tail.y, 1)
        end

        for i, s in ipairs(self.segments) do
            tilemap.set_tile("#grid", "layer1", s.x, s.y, 2)
        end

        self.time = 0
    end
end

function on_input(self, action_id, action)
    if action_id == hash("up") and action.pressed then
        table.insert(self.dirqueue, {x = 0, y = 1})
    elseif action_id == hash("down") and action.pressed then
        table.insert(self.dirqueue, {x = 0, y = -1})
    elseif action_id == hash("left") and action.pressed then
        table.insert(self.dirqueue, {x = -1, y = 0})
    elseif action_id == hash("right") and action.pressed then
        table.insert(self.dirqueue, {x = 1, y = 0})
    end
end

Exercises

It’s a good exercise to try implementing these improvements:

1. Add a key input handling to restart the game, when it’s over.
2. Add scoring and a score counter, be it using just a label component (easier) or a whole gui.
3. The put_food() function doesn’t account for the snake’s position or any obstacles. Fix it, so it only spawns on free spots.
4. When the game is over, show a “Game Over” message and allow the player to try again.
5. Extra credit: add a second player-controlled snake.
