Automating the Defold editor

The Defold Editor opens up a special server for automated actions. HTTP API controls the opened project. Use it for editor commands, builds, project resources, previews, preferences, console output, documentation search, or editor-script integrations. To inspect or control the running game instead, use the engine service or a runtime automation API.

Starting the editor from an external tool

An external tool needs the editor executable and the absolute path to the project’s game.project file.

Installed Defold versions can be located through installations.json, as described in the Editor manual. Its launcherPath field contains the executable to start. Pass the game.project path as the first positional argument to open that project directly.

The optional --port or -p argument selects the editor server port. Omitting it lets Defold choose an available port and is usually preferable when several projects may be open.

# Linux
/path/to/Defold/Defold --port 8181 /absolute/path/to/project/game.project

# macOS
/path/to/Defold.app/Contents/MacOS/Defold --port 8181 /absolute/path/to/project/game.project

# Windows
C:\path\to\Defold\Defold.exe --port 8181 C:\absolute\path\to\project\game.project

The editor is a graphical desktop application. Start it in an interactive user session with access to the display. Use Bob when a graphical session is unavailable, such as in headless CI, or for creating standalone bundles. An open editor also supports compile-only automation through /command/compile.

After starting the editor, wait until the project has opened and .internal/editor.port exists. Then poll /openapi.json until it returns a valid document. Do not assume that creating the process means the project is ready.

Locating the editor server

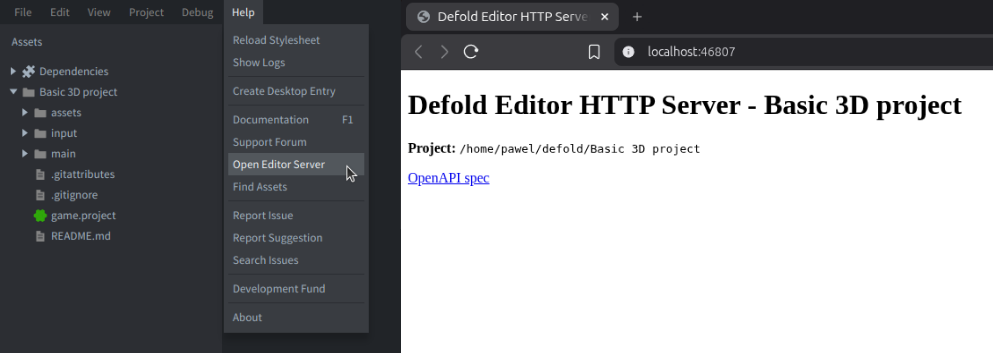

The editor starts a local HTTP server while a project is open. Select Help ▸ Open Editor Server to open its home page in the default browser:

The selected port is written inside the project to:

.internal/editor.port

The examples and commands in this manual will from now on refer to these shell variables:

PORT="$(cat .internal/editor.port)"
BASE_URL="http://127.0.0.1:$PORT"

The port file belongs to the current editor session. Read it again after restarting the editor.

Discovering operations through OpenAPI

The only Defold-specific bootstrap information an external tool should need is the editor port and the OpenAPI document:

curl -sS "http://127.0.0.1:$(cat .internal/editor.port)/openapi.json"

The returned OpenAPI 3.0.3 document describes the operations supported by the running editor version, including paths, methods, parameters, command names, request formats, responses, status codes, and authentication requirements.

List the documented paths:

curl -sS "$BASE_URL/openapi.json" |
  jq -r '.paths | keys[]'

List the documented editor command paths:

curl -sS "$BASE_URL/openapi.json" |
  jq -r '.paths | keys[] | select(startswith("/command/"))'

In Defold 1.13.2 and later, each command has its own path in the OpenAPI document. Earlier versions describe commands through a /command/{command} path and a command-name enum.

A version-aware integration should verify each required operation and configure requests from the returned schema. We advise against maintaining a supposedly exhaustive copy of endpoint or command names, as this can get outdated.

Project-defined routes also appear in /openapi.json when their editor scripts provide an OpenAPI operation description.

Executing editor commands

Invoke editor commands by sending a POST request to the command’s documented path, for example:

POST /command/compile
POST /command/run

To compile the project without running it:

curl -sS \
  -X POST \
  "$BASE_URL/command/compile" |
  jq

To compile and run the project:

curl -sS \
  -X POST \
  "$BASE_URL/command/run" |
  jq

These pipelines display the response body. In automation scripts, also check the HTTP status and success, using the pattern in Building HTML5.

A successful compile returns HTTP status 200 with a structured result:

{
  "success": true,
  "issues": []
}

A failed build returns HTTP status 422 with issues such as:

{
  "success": false,
  "issues": [
    {
      "message": "Example compiler message",
      "severity": "error",
      "resource": "/main/player.script",
      "range": {
        "start": {
          "line": 12,
          "character": 4
        },
        "end": {
          "line": 12,
          "character": 17
        }
      }
    }
  ]
}

The available fields depend on the error. Use the resource path and source range when present, but also handle issues that contain only a message.

Commonly useful commands, when listed by the running editor, include:

compile

Compile the project without running it.

run

Compile and run the project.

clean-build

Clear the build cache, then compile and run. Use this only when an ordinary build behaves inconsistently or appears to miss changes.

build-html5

Build the project for HTML5 and make the output available through the editor server.

fetch-libraries

Download and reload project dependencies.

hot-reload

Reload modified resources into a running game.

reload-extensions

Reload editor scripts.

debugger-start, debugger-stop, and the debugger step commands

Control a debug session and the running project.

Exact names and availability depend on the editor version and current editor state; discover them from /openapi.json.

Commands that operate on project resources synchronize external file changes before execution.

Command responses and asynchronous work

Responses depend on the command. In Defold 1.13.2 and later, compile, run, clean-build, build-html5, debugger-start, and hot-reload wait for command completion and return a structured result with success and issues, as shown above. A successful result returns HTTP 200; a build or validation failure returns 422.

Other commands can still return 202, for example debugger-break. Inspect the operation in the current OpenAPI schema and handle the actual HTTP response status:

An HTTP 202 response is not proof that the requested result exists. Wait for the relevant output, resource, console marker, or served URL and enforce a timeout.

Building HTML5

If the current OpenAPI document lists /command/build-html5, invoke it through that path. In a shell script, capture the HTTP status separately from the response body and stop on a failed request or build:

build_response_file="$(mktemp)" || exit 1
if ! build_http_status="$(curl -sS \
  -X POST \
  -o "$build_response_file" \
  -w '%{http_code}' \
  "$BASE_URL/command/build-html5")"; then
  cat "$build_response_file"
  rm -f "$build_response_file"
  exit 1
fi

cat "$build_response_file"
if [ "$build_http_status" != "200" ] ||
   ! jq -e '.success == true' "$build_response_file" > /dev/null; then
  rm -f "$build_response_file"
  exit 1
fi
rm -f "$build_response_file"

In Defold 1.13.2 and later, this request waits for the build to finish and returns a structured result. The example prints the response body, including any build issues, and proceeds only on HTTP 200 with success: true. After a successful build, the editor opens the game in a browser and serves it at:

http://127.0.0.1:<editor-port>/html5/

A completed build does not mean that the game has finished loading in the browser. Wait for the canvas and application readiness before sending input or checking gameplay. See Browser tests for HTML5 for more details.

Searching API documentation

When present in /openapi.json, the /ref operation searches API documentation included with the running editor version. It provides names and signatures that match that version.

For example, to search for a function, use:

curl -sS \
  --get \
  --data-urlencode "q=go.animate" \
  "$BASE_URL/ref" |
  jq

Filter by environment and language:

curl -sS \
  --get \
  --data-urlencode "environment=runtime" \
  --data-urlencode "language=Lua" \
  --data-urlencode "q=collision message|raycast" \
  "$BASE_URL/ref" |
  jq

The search parameters are:

environment

editor, runtime, or comma-separated values.

language

Lua, C, C++, or comma-separated values.

q

A case-insensitive expression. Whitespace represents AND, while | represents OR.

The are also condensed documentation resources: LLM documentation index links to official manuals, API namespaces, and examples and the full LLM documentation lists complete documentation to support offline search and local indexing.

AI agents should prefer though specified searches instead of retrieving an entire reference when only one API or message is needed, in order to save on tokens and have a better prepared and clean context for a given task.

Reading console output

Read the editor console as JSON:

curl -sS "$BASE_URL/console" | jq

The response contains console text in lines and semantic regions in regions, including errors, evaluation results, and resource references.

To follow console output continuously, use:

curl -N "$BASE_URL/console/stream"

The stream includes existing console lines and then remains open for new output. Close it after receiving a completion marker or error, detecting process termination, or reaching a timeout or line limit.

For test-result framing and failure classification, see Automated testing and verification.

Rendering scene previews

The Defold editor (since 1.13.1) can render a supported scene resource “screenshot” to PNG through command /preview/{path}:

mkdir -p build/automation

curl -sS \
  "$BASE_URL/preview/main/main.collection?width=1280&height=720" \
  --output build/automation/main-preview.png

This renders the main collection from the open Basic 3D template project in a default initial view:

You can use render to get previews of resources that utilise the visual scene editor, for example one can render a model component in the same way, that allows to verify it’s look or e.g. shader correctness:

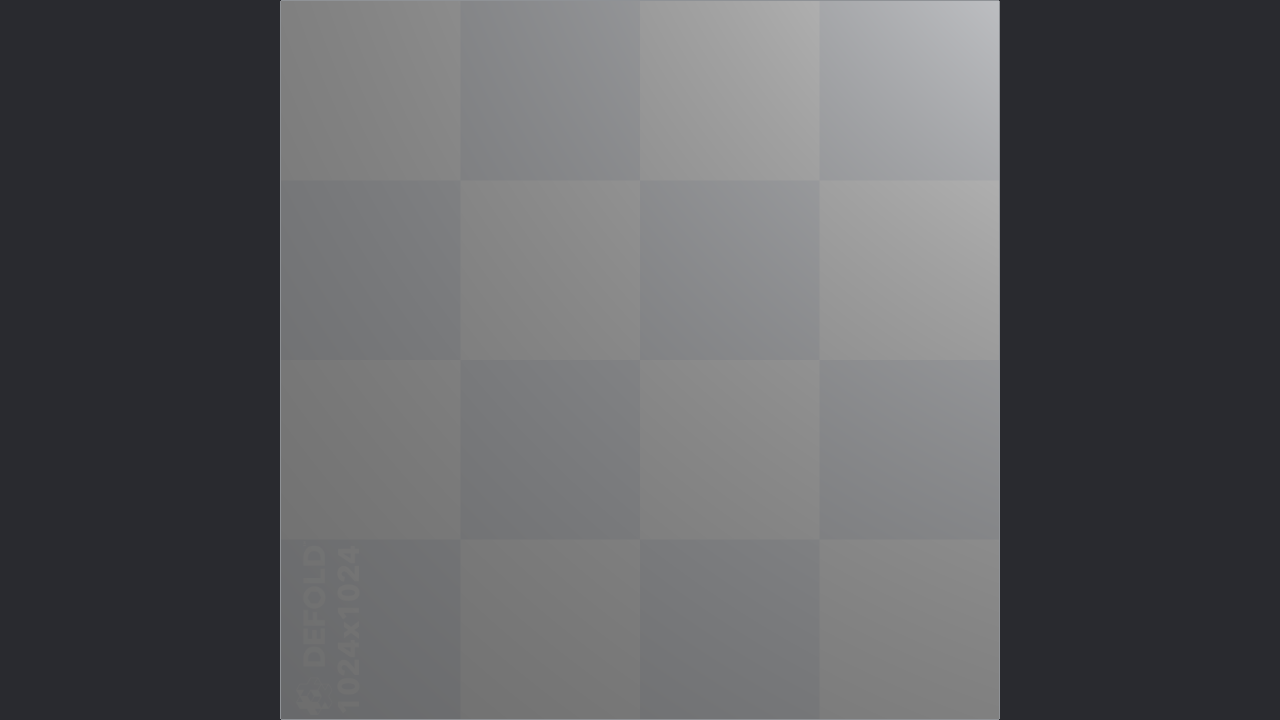

curl -sS \
  "$BASE_URL/preview/assets/models/cube.model?width=1280&height=720" \
  --output build/automation/cube-preview.png

The path after /preview/ does not include a leading slash. The optional dimensions default to the project display size and must be between 1 and 4096.

Previews might be very useful for visual analysis of the project - checking level layouts, GUI layouts, shader and lighting setup, visual regressions, or create documentation thumbnails.

Executing editor Lua

The authenticated POST /eval operation executes Lua in the editor extension environment. The per-session bearer token is stored in:

.internal/editor.token

Read the token and execute code:

TOKEN="$(cat .internal/editor.token)"

curl -sS \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: text/plain" \
  --data-binary 'print(editor.version) return editor.platform' \
  "$BASE_URL/eval"

Printed output and return values are returned as text. Typical responses are:

A client may retry after 503, but it should use a bounded number of attempts. Correct the code before repeating a request that returned 422.

Evaluated code can use the Editor API and the editor scripting environment. It cannot use game runtime APIs such as go.* to manipulate a running game. Use a runtime test, debugger, browser test, or runtime automation API for gameplay.

Modifying resources and files

Many Defold source resources use text formats and can be edited via any text editing tool. For modifying Defold project structured resources prefer editor transactions.

Inspect a resource before changing it:

curl -sS \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: text/plain" \
  --data-binary '
    local path = "/game.project"
    pprint(editor.properties(path))
    return editor.get(path, "path")
  ' \
  "$BASE_URL/eval"

Check editor.can_get(), editor.can_set(), and the other editor.can_*() functions before performing a transaction.

Use editor.execute() in editor Lua to run a formatter, validator, or generator:

local output = editor.execute(
  "python3",
  "scripts/generate_levels.py",
  {
    out = "capture"
  }
)

print(output)

When the command does not modify project resources, set reload_resources = false to avoid an unnecessary reload.

Preferences

Editor preferences can be read and written through the path documented in OpenAPI, currently /prefs/{path}.

You can for example read the configured code font size:

curl -sS "$BASE_URL/prefs/code/font/size" | jq

Or set it to e.g. 16:

curl -sS \
  -X POST \
  -H "Content-Type: application/json" \
  --data '16' \
  "$BASE_URL/prefs/code/font/size"

The editor validates the value against its preference schema. An invalid path or value returns HTTP 400.

Preferences are persistent user or project-user settings, not project configuration stored in game.project. If automation needs to change a preference temporarily, save the previous value and restore it afterward.

Project-defined routes

Editor scripts can define additional routes with get_http_server_routes(). An optional OpenAPI operation table exposes a route through the same /openapi.json document as built-in operations.

Project-defined routes can provide content generation, validation, reports, localization checks, resource analysis, project-specific tests, or a smaller interface for an IDE or external controller.

A good route should perform one clearly named operation, validate its input, return a structured result, be idempotent where possible, and limit expensive work.

Project-defined routes are not automatically protected by the /eval token. Add project-specific authentication and safety checks when a route performs sensitive operations.

Lifecycle hooks

Hooks are functions that can be run before and after builds, before and after bundle creation, and when a game process starts or terminates. A project can contain one hooks.editor_script file in its root. Only the root hook file receives these events, giving the project one place to define their order.

local M = {}

local function validate_project()
  print(editor.execute(
    "python3",
    "scripts/validate_project.py",
    {
      out = "capture",
      reload_resources = false
    }
  ))
end

function M.on_build_started(opts)
  validate_project()
end

function M.on_build_finished(opts)
  print("Build successful:", opts.success)
end

return M

An error raised from on_build_started() stops the editor build. Lifecycle hooks run only in the editor; put shared validation and generation logic in standalone scripts that can also be invoked from CI.

Security and compatibility

Treat the entire editor server as a trusted local interface:

• Do not expose the port access publicly.
• Protect .internal/editor.token; it authorizes /eval for the current session.
• Do not give outside unrestricted /eval access.
• Keep the token in the local integration layer rather than prompts, reports, or logs.
• Remember that project-defined routes do not inherit /eval authentication.
• Use up-to-date /openapi.json.
• Use bounded waits for asynchronous automatic commands and for editor startup.

Engine Server

The editor server belongs to the editor process. A running game has a different port and different responsibilities, described in the engine service and runtime HTTP API manual.
