Euler Rotation

Setup

This example rotates a spinner sprite continuously by tweening one Euler angle. It uses the Z axis because that is the axis pointing out of the screen in a 2D scene.

What You’ll Learn

• How to animate a game object’s Euler rotation
• Why euler.z is the useful axis for 2D rotation
• How looping playback and linear easing create constant motion

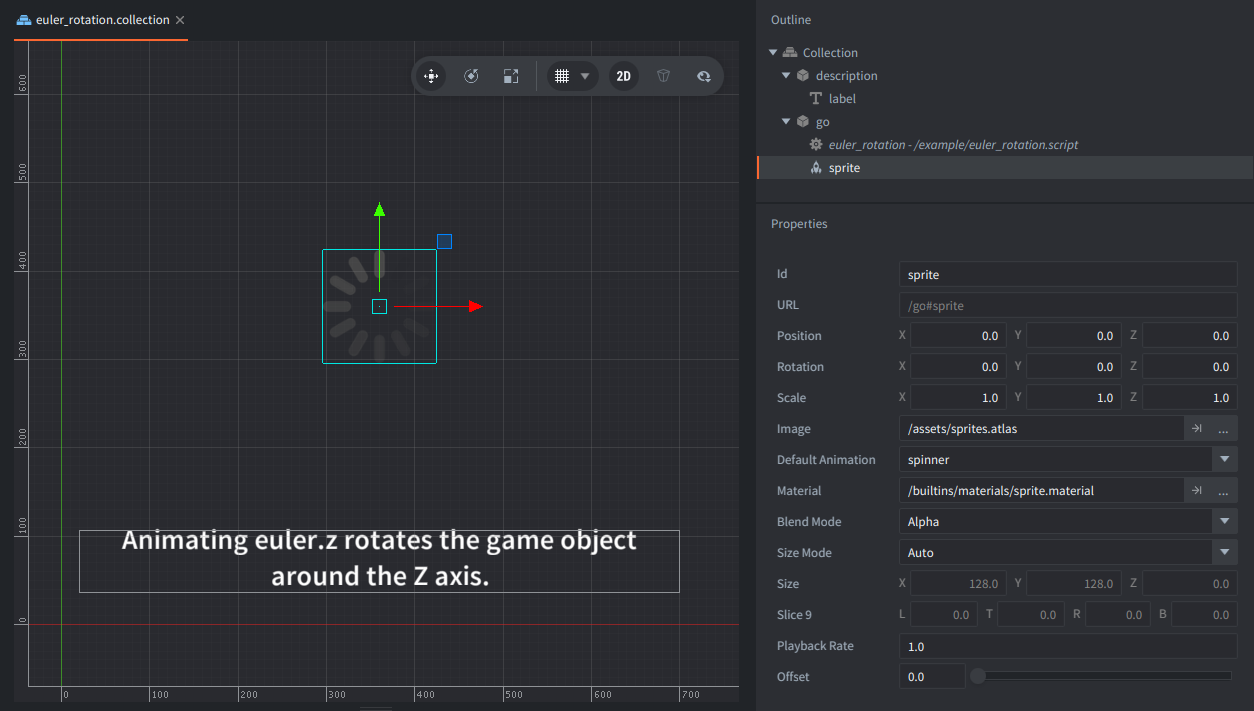

Setup

The collection contains two game objects:

go

Contains the sprite and euler_rotation.script. The sprite uses the spinner image from sprites.atlas, and the script animates only the game object’s euler.z property.

description

Contains the bottom description label. The label uses /assets/text32.font, a 32 px distance-field font, with /builtins/fonts/label-df.material.

How It Works

go.animate() can animate numeric game object properties and sub-properties. Here it targets ".", the current game object, and "euler.z", the Z component of the Euler rotation vector.

Euler angles are expressed in degrees, so the target value -360 is one full clockwise turn. go.PLAYBACK_LOOP_FORWARD restarts the same two-second linear tween every time it finishes, keeping the spinner rotating at a constant speed.

Scripts

euler_rotation.script

function init(self)
    go.animate(".", "euler.z", go.PLAYBACK_LOOP_FORWARD, -360, go.EASING_LINEAR, 2) -- <1>
end

--[[
1. Animate the current game object's `euler.z` sub-property from its starting rotation to -360 degrees. The forward looping playback repeats the two-second linear tween, so the sprite keeps rotating clockwise.
]]
