Proxy


Setup

The setup consists of several collections and game objects.

proxy

proxy.collection
This is the bootstrap collection specified in game.project. Contains:
  • A Script that handles loading and unloading of collection proxies
  • Four Collection proxies referencing a menu collection and three level collections.

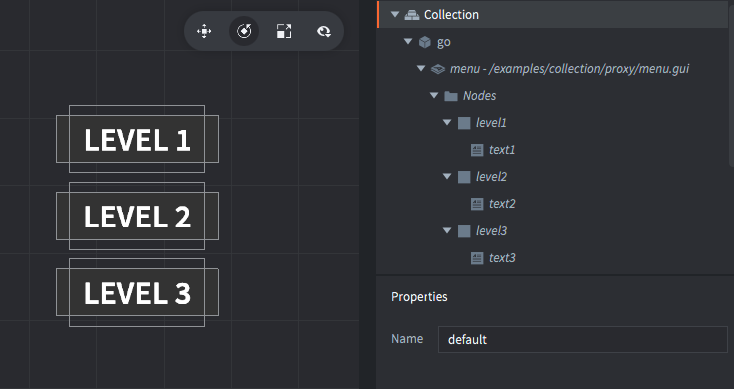

menu

menu.collection
This collection contains a menu. Contains:
  • A GUI with some box and text nodes that acts as buttons.
  • A GUI script that handles the logic of clicking on the buttons and sending messages back to the proxy.collection.

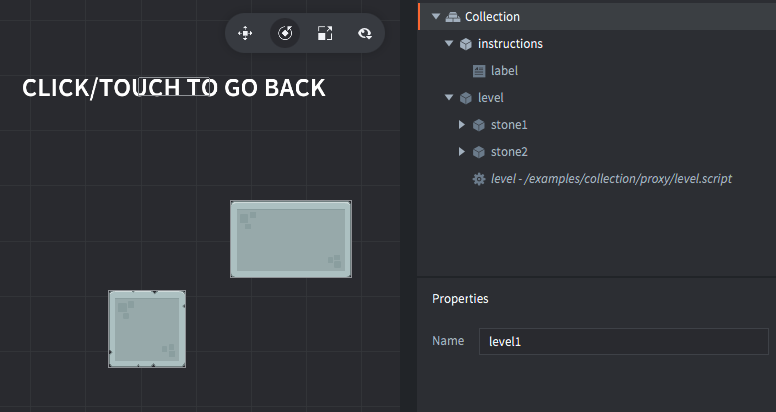

level

level1-3.collection
Collections representing the levels of a game. Contains:
  • Script with logic to send a message back to the proxy.collection to show the menu again.

Scripts

controller.script

local function show(self, proxy) -- <5>
    if self.current_proxy then -- <6>
        msg.post(self.current_proxy, "unload") -- <7>
        self.current_proxy = nil
    end
    msg.post(proxy, "async_load") -- <8>
end

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>
    self.current_proxy = nil -- <2>
    msg.post("#", "show_menu") -- <3>
end

function on_message(self, message_id, message, sender)
    if message_id == hash("show_menu") then -- <4>
        show(self, "#menuproxy")
    elseif message_id == hash("show_level1") then
        show(self, "#level1proxy")
    elseif message_id == hash("show_level2") then
        show(self, "#level2proxy")
    elseif message_id == hash("show_level3") then
        show(self, "#level3proxy")
    elseif message_id == hash("proxy_loaded") then -- <9>
        self.current_proxy = sender -- <10>
        msg.post(sender, "enable") -- <11>
    elseif message_id == hash("proxy_unloaded") then
        print("Unloaded", sender)
    end
end

--[[
1. Acquire input focus for this game object. This is required for input to be able to propagate into any of the collection proxies on the same game object as this script.
2. Create a variable `current_proxy` to track which collection proxy that is loaded.
3. Post a `show_menu` message to the `on_message` function of this script. This load and show the first screen.
4. Message handler that will react to `show_menu`, `show_level1`, `show_level2` and `show_level3` messages and load the appropriate collection proxy.
5. A helper function to unload any currently loaded collection proxy and load a new collection proxy.
6. Check if a collection proxy is loaded.
7. Send an `unload` message to the currently loaded collection proxy. This will immediately unload the proxy and all of its resources. A `proxy_unloaded` message will be sent when it has been unloaded.
8. Send an `async_load` message to the collection proxy that should be loaded. This will start loading the collection proxy and all of its resources. A `proxy_loaded` message will be sent when it has been loaded.
9. Handle the `proxy_loaded` message. This is sent when a collection proxy has finished loading. The collection and all resources will be loaded but no game objects or components will be active/enabled.
10. Store the url of the proxy that was loaded. This is used in the helper function to unload it when showing another collection proxy.
11. Enable the loaded collection proxy. This will activate/enable all game objects and components within the collection.
--]]

menu.gui_script

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>
end

function on_input(self, action_id, action)
    if action_id == hash("touch") and action.released then -- <2>
        if gui.pick_node(gui.get_node("level1"), action.x, action.y) then -- <3>
            msg.post("proxy:/controller#controller", "show_level1") -- <4>
        elseif gui.pick_node(gui.get_node("level2"), action.x, action.y) then
            msg.post("proxy:/controller#controller", "show_level2")
        elseif gui.pick_node(gui.get_node("level3"), action.x, action.y) then
            msg.post("proxy:/controller#controller", "show_level3")
        end
    end
end

--[[
1. Acquire input focus for this script.
2. Check if a mouse click/screen touch is released.
3. Check if the mouse click/screen touch happened on top of any of the buttons.
4. Send a `show_level1` message to the controller script component in the `proxy` collection.
--]]

level.script

function init(self)
    msg.post(".", "acquire_input_focus")
end

function on_input(self, action_id, action)
    if action_id == hash("touch") and action.released then
        msg.post("proxy:/controller", "show_menu")
    end
end

If you want to play with these examples, you can get the project on Github.

Do you want to see more examples? Why not write a few yourself and submit a pull request? We love contributions.
