Load texture

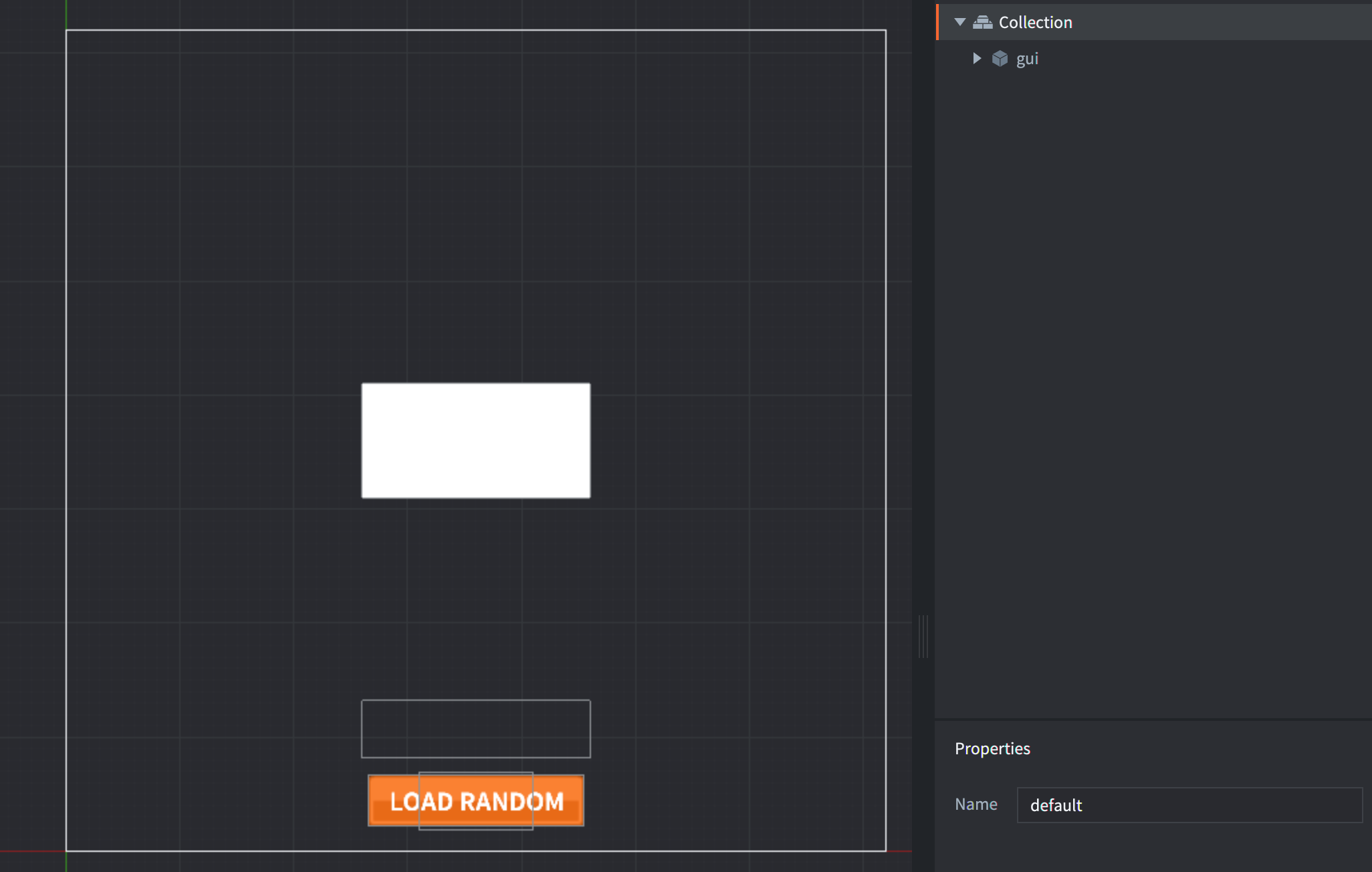

Setup

button

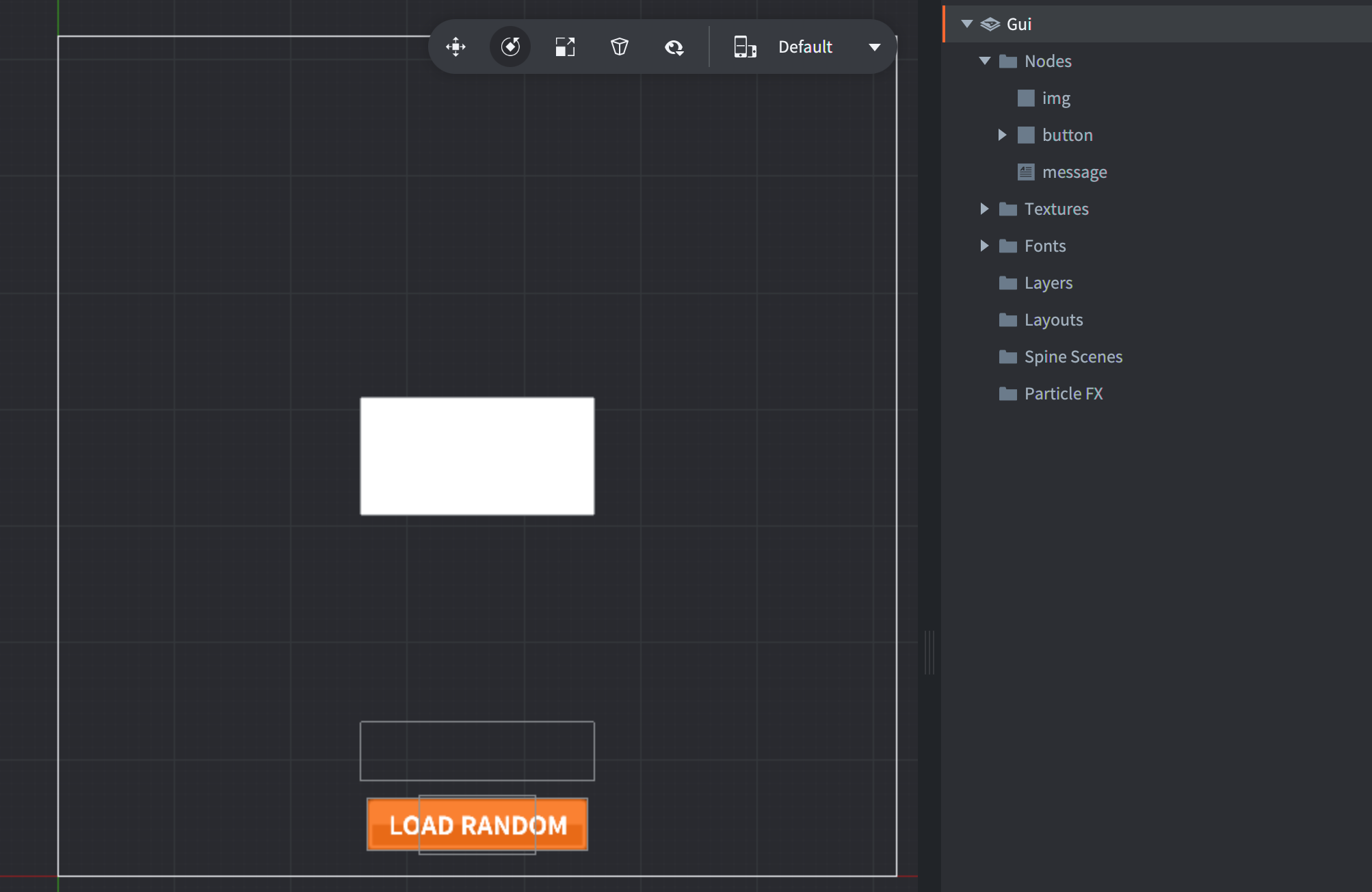

The “gui” game object contains a GUI component stored in the file load_texture.gui. The GUI contains the setup with the “button” box node for the button image, the “text” text node for the button label text and the “img” box node for loaded images.

load_texture.gui has a script attached to it, called load_texture.gui_script, which contains the button logic and logic for loading images.

button gui

Scripts

load_texture.gui_script

local function set_message(text)
    gui.set_text(gui.get_node("message"), text) -- <11>
end

local function set_image(self, texture_id, image_data)
    if self.texture_id then -- <8>
        gui.delete_texture(self.texture_id)
        self.texture_id = nil
    end

    local img = image.load(image_data) -- <9>
    if not img then
        set_message("Unable to load image")
        return
    end

    if gui.new_texture(texture_id, img.width, img.height, img.type, img.buffer) then -- <10>
        self.texture_id = texture_id -- <11>
        gui.set_texture(gui.get_node("img"), texture_id) -- <12>
        set_message("Set new texture")
    else
        set_message("Unable to create texture")
    end
end


local load_image
load_image = function(url)
    http.request(url, "GET", function(self, id, res)  -- <6>
        -- redirect?
        if res.status == 302 or res.status == 301 then -- <7>
            set_message("Redirect: " .. res.headers.location)
            load_image(res.headers.location)
        -- ok or cached?
        elseif res.status == 200 or res.status == 304 then -- <7>
            set_image(self, url, res.response)
        -- error
        else
            set_message("Unable to get image: " .. res.response)
        end
    end)
end

local function load_random(self)
    local url = "https://picsum.photos/id/"..math.random(1, 10).."/200/300.jpg" -- <3>
    set_message("Loading...") -- <4>
    load_image(url) -- <5>
end

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>
    load_random(self)    -- <2>
end

function on_input(self, action_id, action)
    if action_id == hash("touch") and action.pressed then
        if gui.pick_node(gui.get_node("button"), action.x, action.y) then -- <13>
            load_random(self) -- <2>
        end
    end
end

--[[
1. Tell the engine that this game object wants to receive input.
2. Start loading random image
3. Generate a URL to a random image
4. Change the label text.
5. Call function load image from URL
6. Make an HTTP request and handle redirects
7. Check server response
8. Remove previous texture if any
9. Create an image resource from loaded image data
10. Create a new texture using image resource
11. Save the texture id
12. Set new texture as node texture
13. Check if the click position (`action.x` and `action.y`) is within the boundaries of
   the button node.
--]]

If you want to play with these examples, you can get the project on Github.

Do you want to see more examples? Why not write a few yourself and submit a pull request? We love contributions.
