Finite State Machines

Setup

You can control the example in two ways:

Use the keyboard: Left/Right arrow keys, Space, X, and C
Click or touch the on-screen buttons: idle, run, turn, jump, attack, and crouch

The keyboard C key is a held crouch input. The GUI crouch button toggles crouch on and off.

This example shows how to build a small Finite State Machine (FSM) Lua module and use it in more than one place:

animation states in knight.script
locomotion states (idle, run) in control.gui_script
posture states (standing, crouching) in control.gui_script

What You’ll Learn

What Finite State Machines are
How to create generic FSM logic in a reusable Lua module
How to use multiple smaller FSMs for different control concerns
How to combine several control states into one animation target
How to insert intermediate animation states automatically

Finite State Machines

A Finite-State Machine is a model with a finite set of possible states, one active state at a time, and explicit rules for moving from one state to another. FSMs are used in digital logic, software, and AI because they make behavior depend on clear state and transition rules.

Check also:

Setup

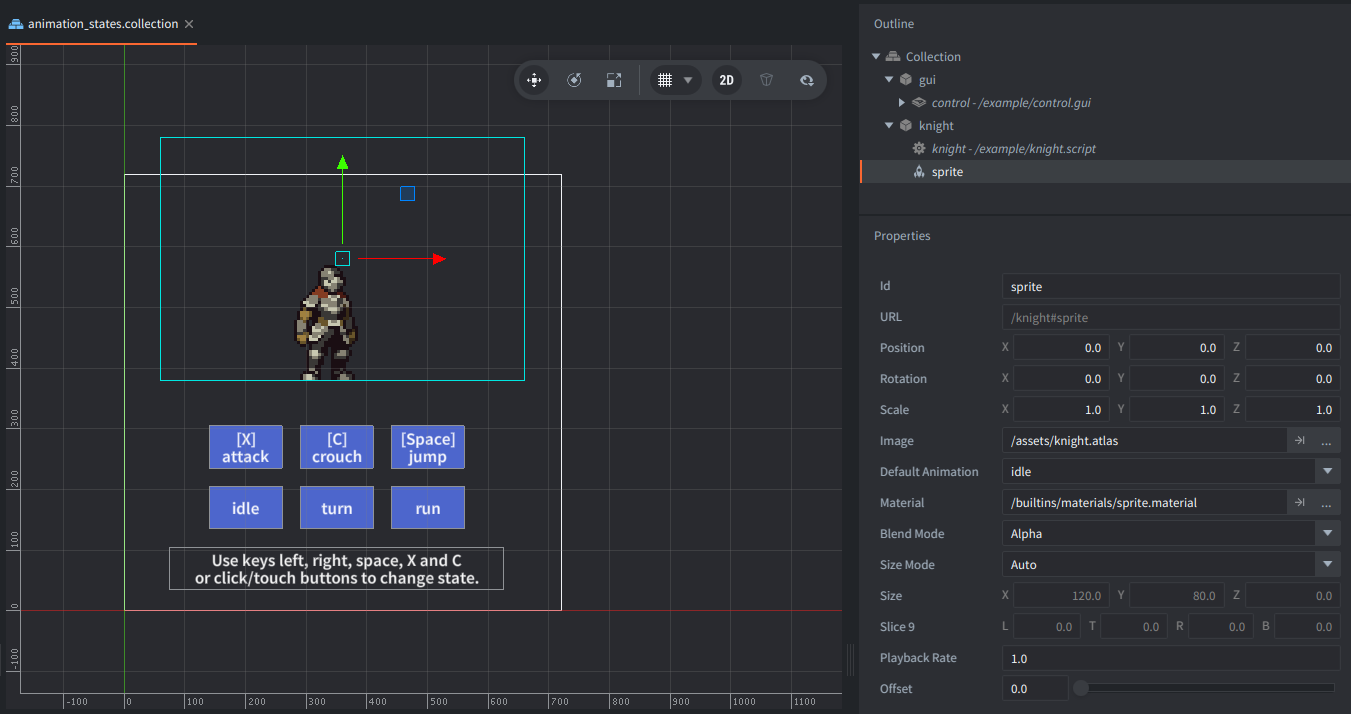

The collection contains two game objects:

gui: Contains control.gui and control.gui_script. This script owns input focus, handles keyboard and pointer input, and uses two FSMs: one for locomotion (idle / run) and one for posture (standing / crouching).
knight: Contains the sprite and knight.script. This script owns the animation FSM. It stores the current animation state, validates transitions with the reusable FSM module, plays flipbooks, and notifies the GUI whenever the active animation changes.

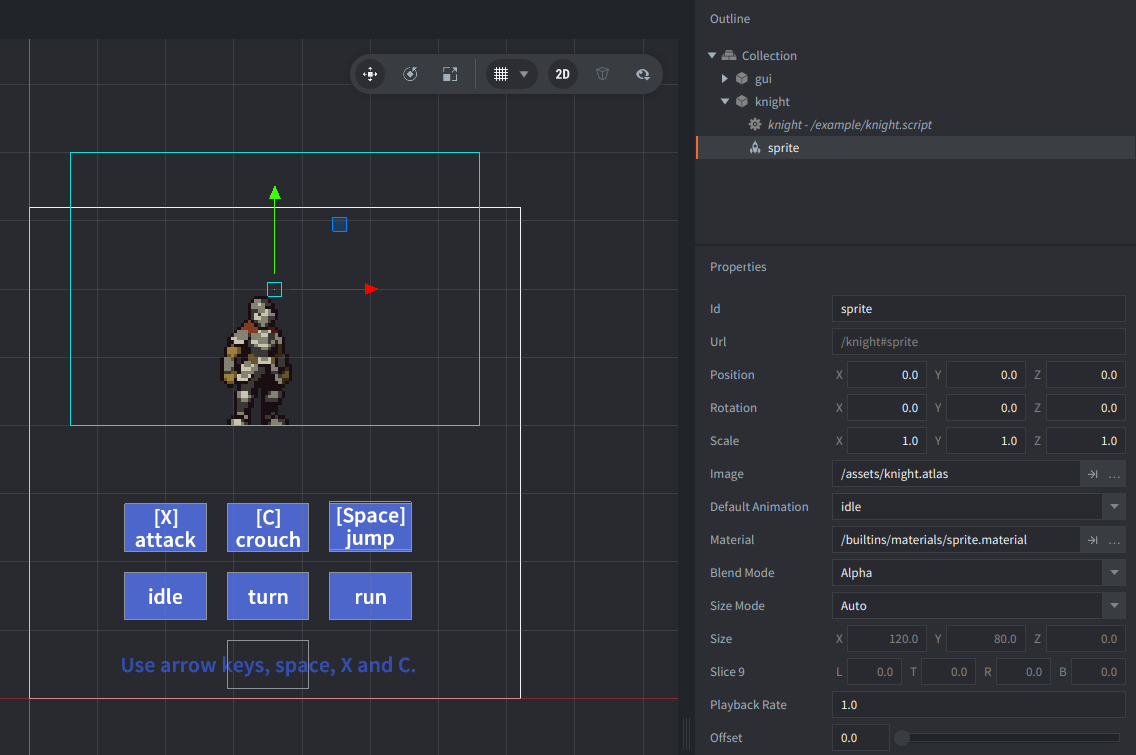

animation_states_collection

Input

The GUI stores raw input intent, then the locomotion and posture FSMs turn that intent into stable control states:

locomotion FSM: idle or run
posture FSM: standing or crouching

For keyboard movement, the most recently pressed direction key wins. That lets the turn animation finish and continue into a run as long as one movement key is still held.

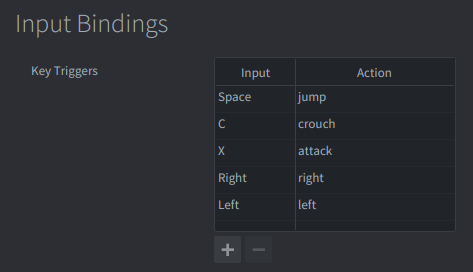

The example uses these input bindings:

Key Triggers:

Space - jump
C - crouch
X - attack
Right - right
Left - left

Mouse Triggers:

Button left -touch (for left mouse clicks and touch input)

input_bindings

How It Works

The example separates three different jobs:

Reusable FSM module

fsm.lua contains the generic part:

create a machine with new()
read state with get_state_name() and get_state()
perform direct transitions with set_state()
find multi-step routes with find_path()

This keeps the reusable code small and focused.

Animation FSM

The knight owns one animation FSM with states such as:

standing_idle
standing_run
standing_jump
standing_turn
crouching_idle
crouching_run
to_crouch
to_standing

When the requested animation is not directly reachable, the knight asks fsm.find_path() for a legal route and automatically inserts intermediate animation states. This keeps the controller states simple while still allowing animated transitions such as standing up or crouching down.

For example:

standing_idle → crouching_run becomes standing_idle → to_crouch → crouching_run
crouching_run → standing_idle becomes crouching_run → to_standing → standing_idle

Control FSMs

The GUI owns two simpler FSMs:

locomotion FSM: idle / run
posture FSM: standing / crouching

These smaller machines are easier to understand than one larger controller state containing every combination directly.

The GUI combines them into one animation target for the knight:

standing + idle -> standing_idle
standing + run -> standing_run
crouching + idle -> crouching_idle
crouching + run -> crouching_run

The GUI sends stable looping targets with set_target_state. One-shot actions such as jump, attack, and turn are sent separately with trigger_state.

Why Split It Like This?

Using several small FSMs keeps each machine focused on one question:

locomotion asks: “idle or run?”
posture asks: “standing or crouching?”
animation asks: “which exact animation state should play now?”

That is often easier to read and maintain than one large state table that tries to represent every control and animation concern at once.

Animation Atlas

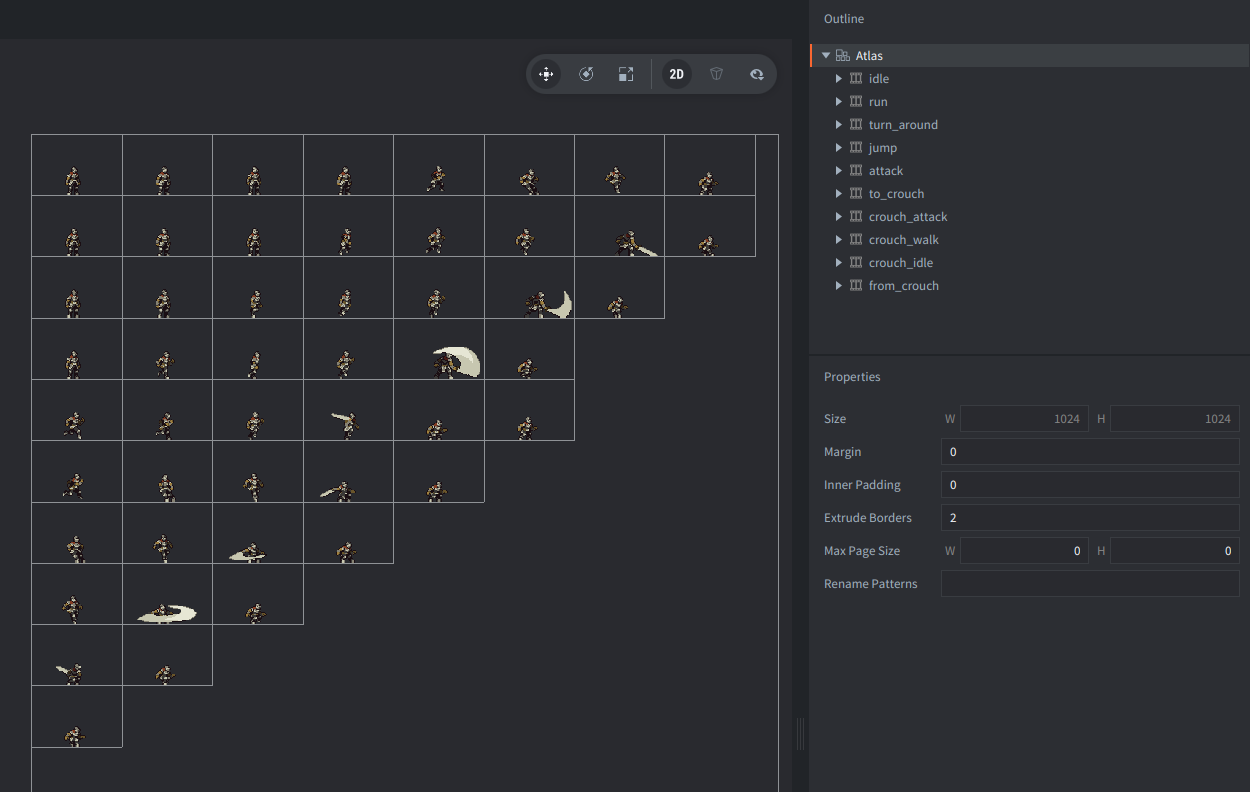

The sprite component uses a flipbook atlas with the standing, crouching, attack, jump, and transition animations for the knight character.

This example uses the Free Knight Character by Nauris “aamatniekss”: https://aamatniekss.itch.io/fantasy-knight-free-pixelart-animated-character

atlas

Scripts

knight.script

local fsm = require("example.fsm")

local SET_TARGET_STATE = hash("set_target_state")
local TRIGGER_STATE = hash("trigger_state")
local ANIMATION_DONE = hash("animation_done")
local ANIMATION_STATE_CHANGED = hash("animation_state_changed")

local GUI_URL = "/gui#control"

-- <1>
local ANIMATION_STATES = {
    standing_idle = {
        animation = hash("idle"),
        loop = true
    },
    standing_run = {
        animation = hash("run"),
        loop = true
    },
    standing_jump = {
        animation = hash("jump"),
        loop = false
    },
    standing_attack = {
        animation = hash("attack"),
        loop = false
    },
    standing_turn = {
        animation = hash("turn_around"),
        loop = false
    },
    crouching_idle = {
        animation = hash("crouch_idle"),
        loop = true
    },
    crouching_run = {
        animation = hash("crouch_walk"),
        loop = true
    },
    crouching_attack = {
        animation = hash("crouch_attack"),
        loop = false
    },
    to_crouch = {
        animation = hash("to_crouch"),
        loop = false
    },
    to_standing = {
        animation = hash("from_crouch"),
        loop = false
    }
}

-- <2>
local ANIMATION_TRANSITIONS = {
    standing_idle = { "standing_run", "standing_jump", "standing_attack", "standing_turn", "to_crouch" },
    standing_run = { "standing_idle", "standing_jump", "standing_attack", "standing_turn", "to_crouch" },
    standing_jump = { "standing_idle", "standing_run", "standing_attack", "standing_turn", "to_crouch" },
    standing_attack = { "standing_idle", "standing_run", "standing_jump", "standing_turn", "to_crouch" },
    standing_turn = { "standing_idle", "standing_run", "standing_jump", "standing_attack", "to_crouch" },
    crouching_idle = { "crouching_run", "crouching_attack", "to_standing" },
    crouching_run = { "crouching_idle", "crouching_attack", "to_standing" },
    crouching_attack = { "crouching_idle", "crouching_run", "to_standing" },
    to_crouch = { "crouching_idle", "crouching_run", "crouching_attack" },
    to_standing = { "standing_idle", "standing_run", "standing_jump", "standing_attack", "standing_turn" }
}

-- <3>
local function get_animation_state_name(self)
    return fsm.get_state_name(self.animation_fsm)
end

-- <4>
local function get_animation_state(self)
    return fsm.get_state(self.animation_fsm)
end

-- <5>
local function stop_jump_effect(self)
    local position = go.get_position()
    go.cancel_animations(".", "position.y")
    go.set_position(vmath.vector3(position.x, self.ground_y, position.z))
end

-- <6>
local function start_jump_effect(self)
    stop_jump_effect(self)
    go.animate(".", "position.y", go.PLAYBACK_ONCE_PINGPONG, self.ground_y + 50, go.EASING_INOUTCUBIC, 0.6)
end

-- <7>
local function apply_facing(self)
    self.facing_left = self.desired_facing_left
    sprite.set_hflip("#sprite", self.facing_left)
end

-- <8>
local function refresh_visuals(self, previous_state_name)
    local state = get_animation_state(self)
    local current_state_name = get_animation_state_name(self)

    -- <9>
    if not state or not current_state_name then
        return
    end

    -- <10>
    if previous_state_name == "standing_jump" and current_state_name ~= "standing_jump" then
        stop_jump_effect(self)
    end

    -- <11>
    if current_state_name ~= "standing_turn" then
        apply_facing(self)
    end

    -- <12>
    sprite.play_flipbook("#sprite", state.animation)

    -- <13>
    if current_state_name == "standing_jump" then
        start_jump_effect(self)
    end

    -- <14>
    msg.post(GUI_URL, ANIMATION_STATE_CHANGED, { state = current_state_name })
end

-- <15>
local function enter_animation_state(self, next_state_name)
    local previous_state_name = get_animation_state_name(self)

    -- <16>
    if previous_state_name == next_state_name then
        if next_state_name ~= "standing_turn" then
            apply_facing(self)
        end

        return
    end

    -- <17>
    if not fsm.set_state(self.animation_fsm, next_state_name) then
        return
    end

    refresh_visuals(self, previous_state_name)
end

-- <18>
local function advance_animation_fsm(self, allow_from_finished_state)
    local requested_state = self.trigger_state or self.target_state
    local current_state = get_animation_state(self)

    -- <19>
    if not requested_state then
        return
    end

    -- <20>
    if not allow_from_finished_state and current_state and not current_state.loop then
        return
    end

    -- <21>
    if requested_state == get_animation_state_name(self) then
        enter_animation_state(self, requested_state)
        return
    end

    local path = fsm.find_path(self.animation_fsm, requested_state)

    -- <22>
    if not path then
        return
    end

    -- <23>
    for _, next_state_name in ipairs(path) do
        enter_animation_state(self, next_state_name)

        if not get_animation_state(self).loop then
            return
        end
    end
end

function init(self)
    -- <24>
    self.animation_fsm = fsm.new({
        states = ANIMATION_STATES,
        transitions = ANIMATION_TRANSITIONS
    })

    self.target_state = "standing_idle"
    self.trigger_state = nil
    self.facing_left = false
    self.desired_facing_left = false
    self.ground_y = go.get_position().y

    -- <25>
    enter_animation_state(self, self.target_state)
end

function on_message(self, message_id, message)
    -- <26>
    if message_id == SET_TARGET_STATE then
        self.target_state = message.state
        self.desired_facing_left = message.facing_left
        advance_animation_fsm(self)

    -- <27>
    elseif message_id == TRIGGER_STATE then
        self.trigger_state = message.state
        self.desired_facing_left = message.facing_left
        advance_animation_fsm(self)

    -- <28>
    elseif message_id == ANIMATION_DONE then
        if get_animation_state_name(self) == "standing_turn" then
            apply_facing(self)
        end

        -- <29>
        if self.trigger_state == get_animation_state_name(self) then
            self.trigger_state = nil
        end

        -- <30>
        advance_animation_fsm(self, true)
    end
end

--[[
1. `ANIMATION_STATES` is the data table for the knight animation FSM. Each state only stores the animation id and whether the state loops.
2. `ANIMATION_TRANSITIONS` is the animation graph. The knight may only move along these legal transitions.
3. `get_animation_state_name()` reads the current animation state id from the reusable FSM module.
4. `get_animation_state()` reads the current animation state's data table from the reusable FSM module.
5. `stop_jump_effect()` clears the extra Y movement used to visualize a jump and snaps the knight back to the ground height.
6. `start_jump_effect()` starts the temporary Y animation for the jump. This can stay simple because jump is not cancelable in this example.
7. `apply_facing()` updates the sprite horizontal flip from the direction requested by the GUI controller.
8. `refresh_visuals()` handles the visual side effects of entering a state. It does not choose the next state; it only updates how the current state looks.
9. This guard leaves the helper idle if it is called before the FSM has an active state.
10. When the FSM leaves `standing_jump`, the jump offset is removed so the knight returns to ground level.
11. `standing_turn` is special because the knight should keep the old facing until the turn animation finishes.
12. Every animation state plays its own configured flipbook on the sprite.
13. Entering `standing_jump` also starts the extra Y movement so the jump is easier to see.
14. The knight reports the active animation state to the GUI so the control panel can highlight the correct buttons.
15. `enter_animation_state()` is the one place where the knight animation FSM actually changes state.
16. Re-entering the same state does not restart the flipbook; it only applies a facing change when the state allows immediate facing updates.
17. `fsm.set_state()` performs one legal direct transition. If the transition is invalid, the function stops there.
18. `advance_animation_fsm()` is the main stepper for the animation FSM. It moves the knight toward the latest requested state.
19. If nothing has been requested, there is nothing for the animation FSM to do.
20. If a non-looping state is still playing, the knight waits for `animation_done` before continuing.
21. If the requested state is already active, the knight only needs to apply same-state side effects such as facing.
22. If the reusable FSM module cannot find a legal path, the knight ignores that request.
23. The animation FSM walks along the path until it reaches a non-looping state that must finish before the next step can happen.
24. The knight creates one reusable FSM instance for its animation logic.
25. The knight starts by entering `standing_idle` through the same helper used for all later state changes.
26. `set_target_state` updates the stable looping state the knight should eventually settle into.
27. `trigger_state` starts a one-shot state such as jump, attack, or turn.
28. Because `sprite.play_flipbook()` is called without a completion callback, Defold sends `animation_done` when a non-looping flipbook finishes.
29. After a one-shot trigger finishes, the trigger request is cleared so the knight can continue toward the latest stable target.
30. Passing `true` here allows the FSM to continue from the finished non-looping state instead of stopping on it.
--]]

control.gui_script

local fsm = require("example.fsm")

local SET_TARGET_STATE = hash("set_target_state")
local TRIGGER_STATE = hash("trigger_state")
local ANIMATION_STATE_CHANGED = hash("animation_state_changed")

local KNIGHT_URL = "/knight#knight"

-- <1>
local INPUT = {
    TOUCH = hash("touch"),
    LEFT = hash("left"),
    RIGHT = hash("right"),
    JUMP = hash("jump"),
    ATTACK = hash("attack"),
    CROUCH = hash("crouch")
}

local DEFAULT_COLOR = vmath.vector4(0.3, 0.4, 0.8, 1.0)
local ACTIVE_COLOR = vmath.vector4(0.4, 0.5, 0.9, 1.0)

-- <2>
local LOCOMOTION_STATES = {
    idle = {},
    run = {}
}

-- <3>
local LOCOMOTION_TRANSITIONS = {
    idle = { "run" },
    run = { "idle" }
}

-- <4>
local POSTURE_STATES = {
    standing = {},
    crouching = {}
}

-- <5>
local POSTURE_TRANSITIONS = {
    standing = { "crouching" },
    crouching = { "standing" }
}

-- <6>
local STATE_HIGHLIGHTS = {
    standing_idle = { "idle" },
    standing_run = { "run" },
    standing_jump = { "jump" },
    standing_attack = { "attack" },
    standing_turn = { "turn_around" },
    crouching_idle = { "crouch" },
    crouching_run = { "run", "crouch" },
    crouching_attack = { "attack", "crouch" },
    to_crouch = { "crouch" },
    to_standing = { "crouch" }
}

-- <7>
local function get_locomotion_state(self)
    return fsm.get_state_name(self.locomotion_fsm)
end

-- <8>
local function get_posture_state(self)
    return fsm.get_state_name(self.posture_fsm)
end

-- <9>
local function update_button_visual(node, is_active)
    gui.set_color(node, is_active and ACTIVE_COLOR or DEFAULT_COLOR)
end

-- <10>
local function refresh_buttons(self, state_name)
    for _, node in pairs(self.buttons) do
        update_button_visual(node, false)
    end

    for _, node_id in ipairs(STATE_HIGHLIGHTS[state_name] or {}) do
        update_button_visual(self.buttons[node_id], true)
    end
end

-- <11>
local function is_keyboard_running(self)
    return self.keyboard_direction_left ~= nil
end

-- <12>
local function refresh_keyboard_direction(self)
    if self.left_down and not self.right_down then
        self.keyboard_direction_left = true
    elseif self.right_down and not self.left_down then
        self.keyboard_direction_left = false
    elseif not self.left_down and not self.right_down then
        self.keyboard_direction_left = nil
    end
end

-- <13>
local function get_requested_direction(self)
    if self.keyboard_direction_left ~= nil then
        return self.keyboard_direction_left
    end

    return self.direction_left
end

-- <14>
local function update_control_fsms(self)
    local next_locomotion_state = "idle"
    local next_posture_state = "standing"

    if self.run_requested or is_keyboard_running(self) then
        next_locomotion_state = "run"
    end

    if self.crouch_toggled or self.crouch_down then
        next_posture_state = "crouching"
    end

    if next_locomotion_state ~= get_locomotion_state(self) then
        fsm.set_state(self.locomotion_fsm, next_locomotion_state)
    end

    if next_posture_state ~= get_posture_state(self) then
        fsm.set_state(self.posture_fsm, next_posture_state)
    end
end

-- <15>
local function get_base_state(self)
    local locomotion_state = get_locomotion_state(self)
    local posture_state = get_posture_state(self)

    if posture_state == "crouching" then
        return locomotion_state == "run" and "crouching_run" or "crouching_idle"
    end

    return locomotion_state == "run" and "standing_run" or "standing_idle"
end

-- <16>
local function send_base_state(self)
    msg.post(KNIGHT_URL, SET_TARGET_STATE, {
        state = get_base_state(self),
        facing_left = self.direction_left
    })
end

-- <17>
local function send_trigger_state(self, state_name)
    msg.post(KNIGHT_URL, TRIGGER_STATE, {
        state = state_name,
        facing_left = self.direction_left
    })
end

-- <18>
local function sync_knight(self, play_turn_animation)
    local previous_direction_left = self.direction_left

    self.direction_left = get_requested_direction(self)
    update_control_fsms(self)

    -- <19>
    if play_turn_animation and previous_direction_left ~= self.direction_left and get_posture_state(self) == "standing" then
        send_trigger_state(self, "standing_turn")
    end

    send_base_state(self)
end

-- <20>
local function request_idle(self)
    self.run_requested = false
    sync_knight(self)
end

-- <21>
local function request_run(self)
    self.run_requested = true
    sync_knight(self)
end

-- <22>
local function request_turn(self)
    self.direction_left = not get_requested_direction(self)

    if get_posture_state(self) == "standing" then
        send_trigger_state(self, "standing_turn")
    end

    send_base_state(self)
end

-- <23>
local function request_jump(self)
    if get_posture_state(self) == "crouching" then
        return
    end

    send_trigger_state(self, "standing_jump")
end

-- <24>
local function request_attack(self)
    local attack_state = get_posture_state(self) == "crouching" and "crouching_attack" or "standing_attack"
    send_trigger_state(self, attack_state)
end

-- <25>
local function request_crouch_toggle(self)
    self.crouch_toggled = not self.crouch_toggled
    sync_knight(self)
end

-- <26>
local function press_button(self, node_id)
    if node_id == "idle" then
        request_idle(self)
    elseif node_id == "run" then
        request_run(self)
    elseif node_id == "turn_around" then
        request_turn(self)
    elseif node_id == "jump" then
        request_jump(self)
    elseif node_id == "attack" then
        request_attack(self)
    elseif node_id == "crouch" then
        request_crouch_toggle(self)
    end
end

-- <27>
local function pick_button(self, x, y)
    for node_id, node in pairs(self.buttons) do
        if gui.pick_node(node, x, y) then
            return node_id
        end
    end

    return nil
end

function init(self)
    -- <28>
    self.buttons = {
        idle = gui.get_node("idle"),
        run = gui.get_node("run"),
        turn_around = gui.get_node("turn_around"),
        jump = gui.get_node("jump"),
        attack = gui.get_node("attack"),
        crouch = gui.get_node("crouch")
    }

    -- <29>
    self.locomotion_fsm = fsm.new({
        states = LOCOMOTION_STATES,
        transitions = LOCOMOTION_TRANSITIONS,
        initial_state = "idle"
    })

    self.posture_fsm = fsm.new({
        states = POSTURE_STATES,
        transitions = POSTURE_TRANSITIONS,
        initial_state = "standing"
    })

    self.left_down = false
    self.right_down = false
    self.keyboard_direction_left = nil
    self.crouch_down = false
    self.crouch_toggled = false
    self.run_requested = false
    self.direction_left = false

    refresh_buttons(self, "standing_idle")

    -- <30>
    msg.post(".", "acquire_input_focus")
    send_base_state(self)
end

function on_input(self, action_id, action)
    -- <31>
    if action_id == INPUT.LEFT then
        if action.pressed then
            self.left_down = true
            self.keyboard_direction_left = true
            sync_knight(self, true)
        elseif action.released then
            self.left_down = false
            refresh_keyboard_direction(self)
            sync_knight(self)
        end

    -- <32>
    elseif action_id == INPUT.RIGHT then
        if action.pressed then
            self.right_down = true
            self.keyboard_direction_left = false
            sync_knight(self, true)
        elseif action.released then
            self.right_down = false
            refresh_keyboard_direction(self)
            sync_knight(self)
        end

    -- <33>
    elseif action_id == INPUT.CROUCH then
        if action.pressed then
            self.crouch_down = true
            sync_knight(self)
        elseif action.released then
            self.crouch_down = false
            sync_knight(self)
        end

    -- <34>
    elseif action_id == INPUT.JUMP and action.pressed then
        request_jump(self)

    -- <35>
    elseif action_id == INPUT.ATTACK and action.pressed then
        request_attack(self)

    -- <36>
    elseif action_id == INPUT.TOUCH and action.pressed then
        local node_id = pick_button(self, action.x, action.y)

        if node_id then
            press_button(self, node_id)
            return true
        end
    end
end

function on_message(self, message_id, message)
    -- <37>
    if message_id == ANIMATION_STATE_CHANGED then
        refresh_buttons(self, message.state)
    end
end

--[[
1. `INPUT` stores the action hashes used by the GUI controller.
2. `LOCOMOTION_STATES` defines one small control FSM with the states `idle` and `run`.
3. `LOCOMOTION_TRANSITIONS` says that locomotion may move back and forth between `idle` and `run`.
4. `POSTURE_STATES` defines another control FSM with the states `standing` and `crouching`.
5. `POSTURE_TRANSITIONS` says that posture may move back and forth between `standing` and `crouching`.
6. `STATE_HIGHLIGHTS` maps animation states to the GUI buttons that should be highlighted.
7. `get_locomotion_state()` reads the current state of the locomotion FSM.
8. `get_posture_state()` reads the current state of the posture FSM.
9. `update_button_visual()` changes one button between its default and active color.
10. `refresh_buttons()` redraws the whole control panel from the animation state reported by the knight.
11. Keyboard running stays active while at least one direction key is held.
12. `refresh_keyboard_direction()` keeps the most recently active keyboard direction and clears it only when both direction keys are released.
13. `get_requested_direction()` uses the active keyboard direction when present, otherwise it keeps the direction remembered from GUI controls.
14. `update_control_fsms()` derives the locomotion and posture states from the stored run and crouch input flags.
15. `get_base_state()` combines the two control FSM states into one stable looping animation target for the knight.
16. `send_base_state()` tells the knight which looping animation state it should settle into next.
17. `send_trigger_state()` starts one-shot states such as jump, attack, or turn.
18. `sync_knight()` is the main controller helper. It updates direction, advances the two control FSMs, and then sends the correct animation requests.
19. A standing direction change can play the dedicated turn animation, but crouching just changes facing immediately because there is no crouch turn state.
20. Clicking the idle button clears the stored run request.
21. Clicking the run button sets the stored run request.
22. Clicking the turn button flips direction but keeps the current locomotion and posture states.
23. Jump is only requested while the posture FSM is in the `standing` state.
24. Attack chooses the standing or crouching attack from the current posture FSM state.
25. Toggling crouch changes the raw crouch intent, and then the two controller FSMs derive the correct stable states from it.
26. `press_button()` translates GUI node names into controller actions.
27. `pick_button()` checks which on-screen button was clicked.
28. `init()` caches the GUI nodes used by the control panel.
29. The GUI creates two reusable FSM instances: one for locomotion and one for posture.
30. The GUI script owns input focus, then sends the initial idle target to the knight.
31. Left key input updates both the raw held-key state and the active keyboard direction.
32. Right key input works the same way as left key input.
33. Keyboard crouch behaves like a held input, so pressing and releasing it directly updates the raw crouch flag.
34. Jump input sends a one-shot jump request.
35. Attack input sends a one-shot attack request.
36. The mouse or single-touch action uses `gui.pick_node()` so the on-screen buttons work as controls.
37. The GUI only changes its highlights when the knight reports a new active animation state.
--]]

fsm.lua

---@alias FsmStateName string
---@alias FsmStateData table<string, any>
---@alias FsmStateMap table<FsmStateName, FsmStateData>
---@alias FsmTransitionMap table<FsmStateName, FsmStateName[]>

---@class FsmDefinition
---@field states FsmStateMap
---@field transitions FsmTransitionMap|nil
---@field initial_state FsmStateName|nil

---@class FsmMachine
---@field states FsmStateMap
---@field transitions FsmTransitionMap
---@field state FsmStateName|nil

local M = {}

-- <1>
---@param definition FsmDefinition
---@return FsmMachine
function M.new(definition)
    return {
        states = definition.states,
        transitions = definition.transitions or {},
        state = definition.initial_state
    }
end

-- <2>
---@param machine FsmMachine
---@return FsmStateName|nil
function M.get_state_name(machine)
    return machine.state
end

-- <3>
---@param machine FsmMachine
---@return FsmStateData|nil
function M.get_state(machine)
    if not machine.state then
        return nil
    end

    return machine.states[machine.state]
end

-- <4>
---@param machine FsmMachine
---@param next_state FsmStateName
---@return boolean
function M.can_transition(machine, next_state)
    -- <5>
    if machine.states[next_state] == nil then
        return false
    end

    -- <6>
    if machine.state == nil or machine.state == next_state then
        return true
    end

    -- <7>
    for _, candidate in ipairs(machine.transitions[machine.state] or {}) do
        if candidate == next_state then
            return true
        end
    end

    return false
end

-- <8>
---@param machine FsmMachine
---@param next_state FsmStateName
---@return boolean
function M.set_state(machine, next_state)
    if not M.can_transition(machine, next_state) then
        return false
    end

    -- <9>
    machine.state = next_state
    return true
end

-- <10>
---@param machine FsmMachine
---@param target_state FsmStateName
---@return FsmStateName[]|nil
function M.find_path(machine, target_state)
    -- <11>
    if machine.states[target_state] == nil then
        return nil
    end

    -- <12>
    if machine.state == nil then
        return { target_state }
    end

    -- <13>
    if machine.state == target_state then
        return {}
    end

    -- <14>
    local queue = { machine.state }
    local head = 1
    ---@type table<FsmStateName, FsmStateName|false>
    local previous = { [machine.state] = false }

    while head <= #queue do
        local current_state = queue[head]
        head = head + 1

        -- <15>
        for _, next_state in ipairs(machine.transitions[current_state] or {}) do
            if previous[next_state] == nil then
                previous[next_state] = current_state

                -- <16>
                if next_state == target_state then
                    local path = { target_state }
                    local cursor = current_state

                    -- <17>
                    while cursor ~= machine.state do
                        table.insert(path, 1, cursor)
                        cursor = previous[cursor] --[[@as FsmStateName]]
                    end

                    return path
                end

                -- <18>
                queue[#queue + 1] = next_state
            end
        end
    end

    return nil
end

return M

--[[
1. `new()` creates one machine instance from a definition table. The module is reusable because each caller can build its own machine from different state data.
2. `get_state_name()` returns the current state id, such as `"run"` or `"standing_idle"`.
3. `get_state()` returns the current state's data table. This is useful when state data stores things like animation ids or loop flags.
4. `can_transition()` checks whether one direct step is legal in the transition graph.
5. The first guard makes sure the target state actually exists in the machine definition.
6. A machine with no active state yet may enter any defined state, and re-entering the same state is also allowed.
7. If the machine is already in some other state, the function looks through the transition list for the current state.
8. `set_state()` performs one direct transition and returns `true` only when that move is legal.
9. The module changes the active state by simply replacing `machine.state`. The module does not run callbacks automatically, so the caller stays in control of side effects.
10. `find_path()` solves a different problem from `set_state()`: instead of checking one direct move, it searches for a legal multi-step route.
11. If the requested target state is not defined, there is no valid path.
12. If the machine has no active state yet, the shortest path is just a one-step path containing the requested state.
13. If the machine is already in the requested state, the path is empty because no transition is needed.
14. The search uses a queue and a `previous` table. This is a breadth-first search, which finds the shortest path in number of transitions.
15. Each loop step explores all outgoing transitions from the current state.
16. As soon as the search reaches the requested state, the function can rebuild the path and return it.
17. The path is rebuilt by walking backward through the `previous` table, then inserting those states at the front of the result.
18. If a state has not been visited before, it is queued so the search can continue from there later.
--]]
