Spawn enemies with central management


Setup

This example shows how to dynamically spawn enemy game objects using a factory component and use a central manager to control movement and behavior of all enemies. The setup consists of three main components: a player ship, enemy spawner, and different enemy types with customizable properties.

Press keys 1, 2, or 3 to spawn different enemy types.

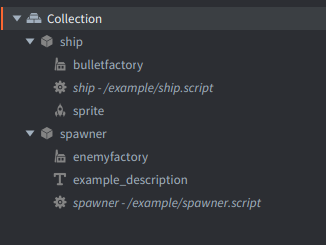

Example collection consists of 2 game objects:

Screenshot showing enemy types and spawner in action

Ship

The red ship at the bottom that automatically moves and shoots. Consists of:

  • A Factory component bulletfactory to spawn bullet game objects
  • A Script ship that handles automatic movement (ping-pong animation) and bullet spawning every 0.25 seconds
  • A Sprite component with the spaceship image

Bullets are simply animated upward and automatically deleted when they reach the top.

Spawner

Controls enemy spawning with keyboard input. Consists of:

  • A Factory enemyfactory to spawn enemies with different properties
  • A Label example_description with instructions text displayed on top
  • A Script spawner that spawns enemies.

The spawner script defines three different enemy types: random, diagonal, and straight. Uses a factory to create enemies and store their ids and properties in a look-up table:

local properties = ENEMY_TYPES[enemy_type]
local id factory.create("#enemyfactory", position)

self.enemies[id] = { ... }

The spawner script handles enemy movement by looping over the list of currently spawned enemies in the update() lifecycle function. It also uses a physics event listener to detect any enemy to bullet collisions. The spawner script also deletes enemy objects and removes them from the look-up table.

Enemy Types

Random Enemy (Key 1):

  • Green UFO sprite
  • 1 health point
  • Random horizontal movement that changes every second
  • Speed: 40 horizontal, -100 vertical

Diagonal Enemy (Key 2):

  • Red enemy sprite
  • 2 health points
  • Fixed diagonal movement
  • Speed: 120 horizontal, -80 vertical

Straight Enemy (Key 3):

  • Blue enemy sprite
  • 3 health points
  • Straight downward movement
  • Speed: 0 horizontal, -40 vertical

Combine this example with other movement and physics examples to create a complete shoot’em up game!

Scripts

ship.script

function init(self)
    -- Animate automatic player position
    go.animate(".", "position.x", go.PLAYBACK_LOOP_PINGPONG, 620, go.EASING_LINEAR, 6.0)

    -- Create a timer to tick every 0.25 second:
    timer.delay(0.25, true, function()

        -- Create a simple bullet bullet using the factory
        local bullet_id = factory.create("#bulletfactory", go.get_position())

        -- Animate the created bullet towards top of screen, where it is deleted
        if bullet_id then
            go.animate(bullet_id, "position.y", go.PLAYBACK_ONCE_FORWARD, 600, go.EASING_LINEAR, 1, 0, function()
                go.delete(bullet_id)
            end)
        end
    end)
end

spawner.script

-- Pre-hash some strings string since they will be used a lot
local TRIGGER_EVENT = hash("trigger_event")
local GROUP_BULLET = hash("bullet")
local GROUP_ENEMY = hash("enemy")

-- Define different properties for different enemies:
local ENEMY_TYPES = {
    random = {
        sprite = hash("ufoGreen"),
        health_points = 1,
        speed = vmath.vector3(40, -100, 0),
        is_random = true
    },
    diagonal = {
        sprite = hash("enemyRed2"),
        health_points = 2,
        speed = vmath.vector3(120, -80, 0),
        is_random = false
    },
    straight = {
        sprite = hash("enemyBlue4"),
        health_points = 3,
        speed = vmath.vector3(0, -40, 0),
        is_random = false
    }
}

-- Helper function to spawn given enemy by its type:
local function spawn_enemy(self, enemy_type)

    -- Select properties of the enemy by type:
    local properties = ENEMY_TYPES[enemy_type]

    -- Set initial position of the spawned ship.
    local position = go.get_position()

    -- This will make the position one out of (-180, -90, 0, 90, 180):
    position.x = position.x + math.random(-2,2) * 90

    -- create enemy
    local id = factory.create("#enemyfactory", position)

    -- set animation of the sprite to the one defined by enemy properties
    local sprite_url = msg.url(nil, id, "sprite")
    sprite.play_flipbook(sprite_url, properties.sprite)

    -- Add randomness to horizontal direction - this way enemy horizontal speed may be inverted or cleared:
    -- -1 * self.speed.x - inverted direction
    --  0 * self.speed.x - cleared direction
    --  1 * self.speed.x - regular direction
    local speed = vmath.vector3(properties.speed)
    speed.x = speed.x * math.random(-1, 1)

    -- store enemy
    self.enemies[id] = {
        id = id,
        health = properties.health_points,
        speed = speed,
        is_random = properties.is_random,
        timer = 1
    }
end

function init(self)
    -- Acquire input focus here, so we can handle inputs:
    msg.post(".", "acquire_input_focus")
    self.enemies = {}

    -- listen to physics events
    -- in this case we care about trigger events between
    -- enemies and bullets
    physics.set_event_listener(function(self, events)
        for _,event in ipairs(events) do
            local event_type = event.type
            if event_type == TRIGGER_EVENT then
                -- get the bullet id and enemy id if the colliding objects belong to
                -- groups "bullet" and "enemy"
                -- this is the Lua way of writing a ternary operator
                local bullet_id = (event.a.group == GROUP_BULLET and event.a.id) or (event.b.group == GROUP_BULLET and event.b.id)
                local enemy_id = (event.a.group == GROUP_ENEMY and event.a.id) or (event.b.group == GROUP_ENEMY and event.b.id)

                -- not really necessary in this example but we might as well
                -- double-check that the detected collision was for a bullet and enemy
                if bullet_id and enemy_id then
                    -- remove the bullet
                    go.delete(bullet_id)

                    -- get the enemy from the managed enemies list
                    local enemy = self.enemies[enemy_id]

                    -- Remove one health point
                    enemy.health = enemy.health - 1

                    -- When no health points left - remove this ship
                    if enemy.health == 0 then
                        go.delete(enemy_id)
                        self.enemies[enemy_id] = nil

                        -- Play particlefx for damage taken:
                        particlefx.play(msg.url(nil, enemy_id, "boom"))
                    end
                end
            end
        end
    end)
end


function update(self, dt)
    for id,enemy in pairs(self.enemies) do
        -- Update enemy position based on its current speed:
        local pos = go.get_position(id)
        pos = pos + enemy.speed * dt
        go.set_position(pos, id)

        -- Bounce enemy off "walls":
        if pos.x > 600 or pos.x < 50 then
            enemy.speed.x = -enemy.speed.x
        end

        -- Remove enemy if it goes out of screen:
        if pos.y < -50 then
            go.delete(id)
            self.enemies[id] = nil
        end

        -- If enemy has random movement decrease timer to
        -- randomly switch horizontal speed every second
        if enemy.is_random then
            enemy.timer = enemy.timer - dt
            if enemy.timer < 0 then
                enemy.timer = enemy.timer + 1
                enemy.speed.x = math.random(-1, 1) * enemy.speed.x
            end
        end
    end
end


function on_input(self, action_id, action)
    -- React to different key presses with spawning different enemies:
    if action_id == hash("key_1") and action.released then
        spawn_enemy(self, "random")
    elseif action_id == hash("key_2") and action.released then
        spawn_enemy(self, "diagonal")
    elseif action_id == hash("key_3") and action.released then
        spawn_enemy(self, "straight")
    end
end

This example was created by Defold Foundation.
