Billboarding

Setup

This example shows how to render camera-facing quads (billboards) in 3D using Defold materials. The core idea is to keep using Defold’s built-in sprite/particle fragment shader, but replace the vertex shader so that each quad is re-oriented towards the camera.

The effect is used in two places:

• Sprite components for trees and rocks
• ParticleFX emitters for smoke

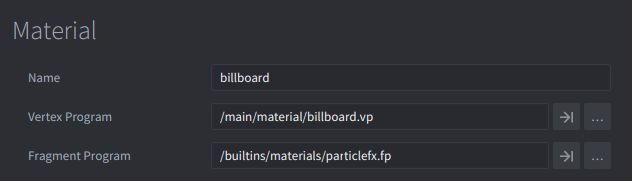

Material setup

Create a custom material for billboarding (for example example/billboard.material) and set it up like this:

• Vertex program: example/billboard.vp
• Fragment program: /builtins/materials/particlefx.fp
  • This keeps standard particle/sprite sampling, tinting and alpha handling.

The material must provide these shader inputs:

• Vertex attributes

  Name	Semantic Type	Vector Type	Description

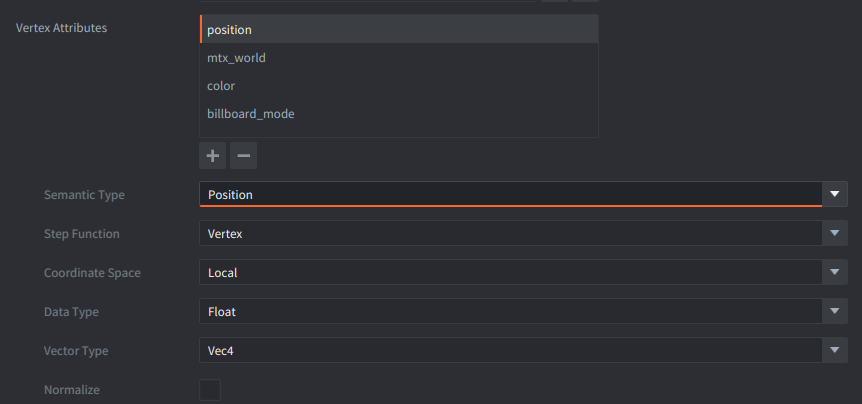

  position	Position	Vector	Local quad vertex position

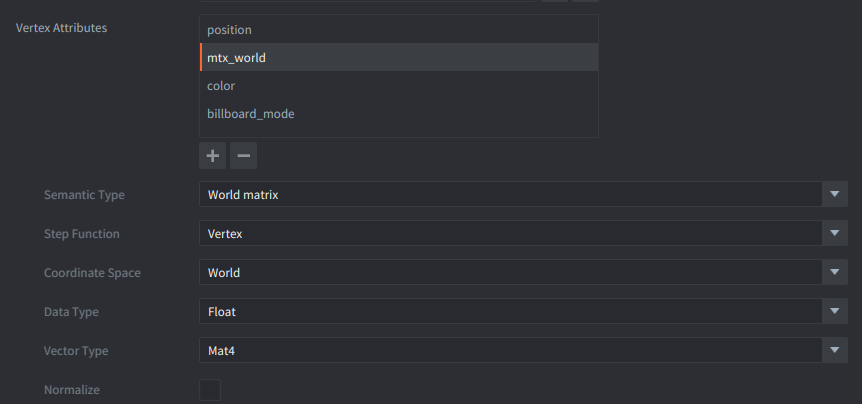

  mtx_world	World matrix	Mat4	Quad center (translation) and scale; coordinate space: World

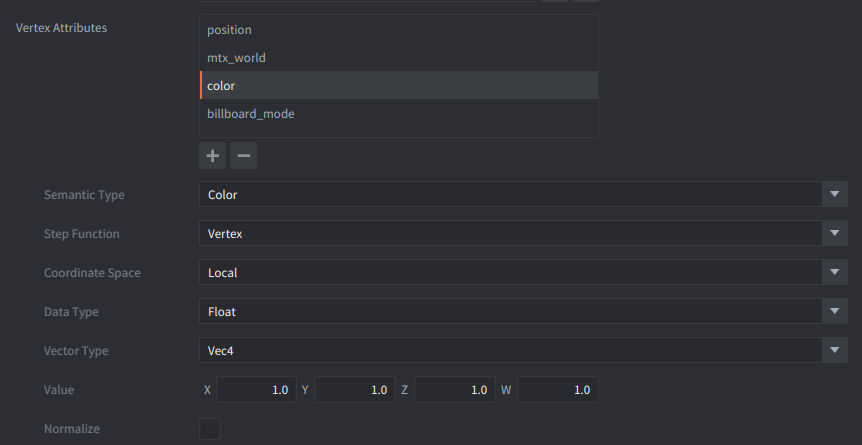

  color	Color	Vector	Forwarded to the fragment shader (for particlefx)

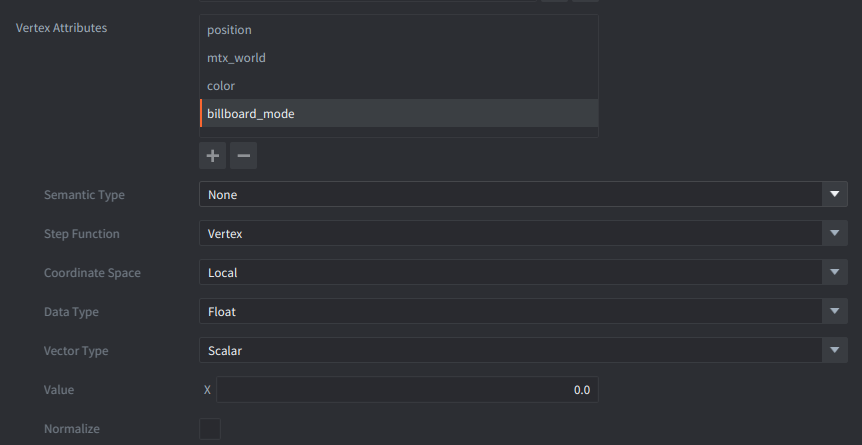

  billboard_mode	None	Scalar	Selects the billboarding mode per instance/emitter

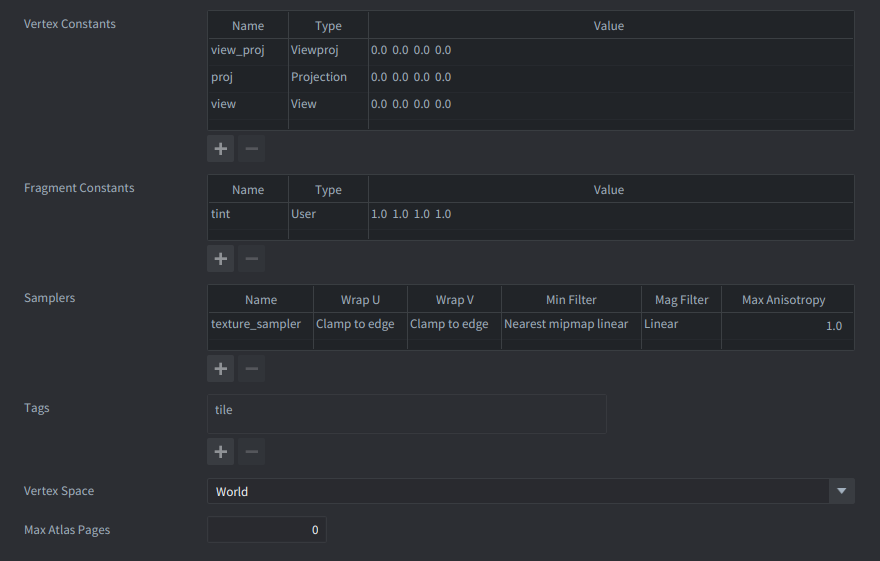

• Vertex constants

  Name	Type	Description
  view_proj	ViewProj	Transforms world position to clip space
  view	View	Used to derive camera right/up vectors in world

Sprite setup (foliage/rocks)

The foliage and rock game objects (for example assets/foliage/tree1.go and assets/foliage/rock1.go) each contain:

1. A Sprite component using the atlas assets/foliage/foliage.atlas
2. The material example/billboard.material
3. A per-sprite vertex attribute:
   • billboard_mode = 1.0 (axis-locked billboard; see below)

This is enough to make each sprite face the camera without changing the sprite’s transform in the game logic.

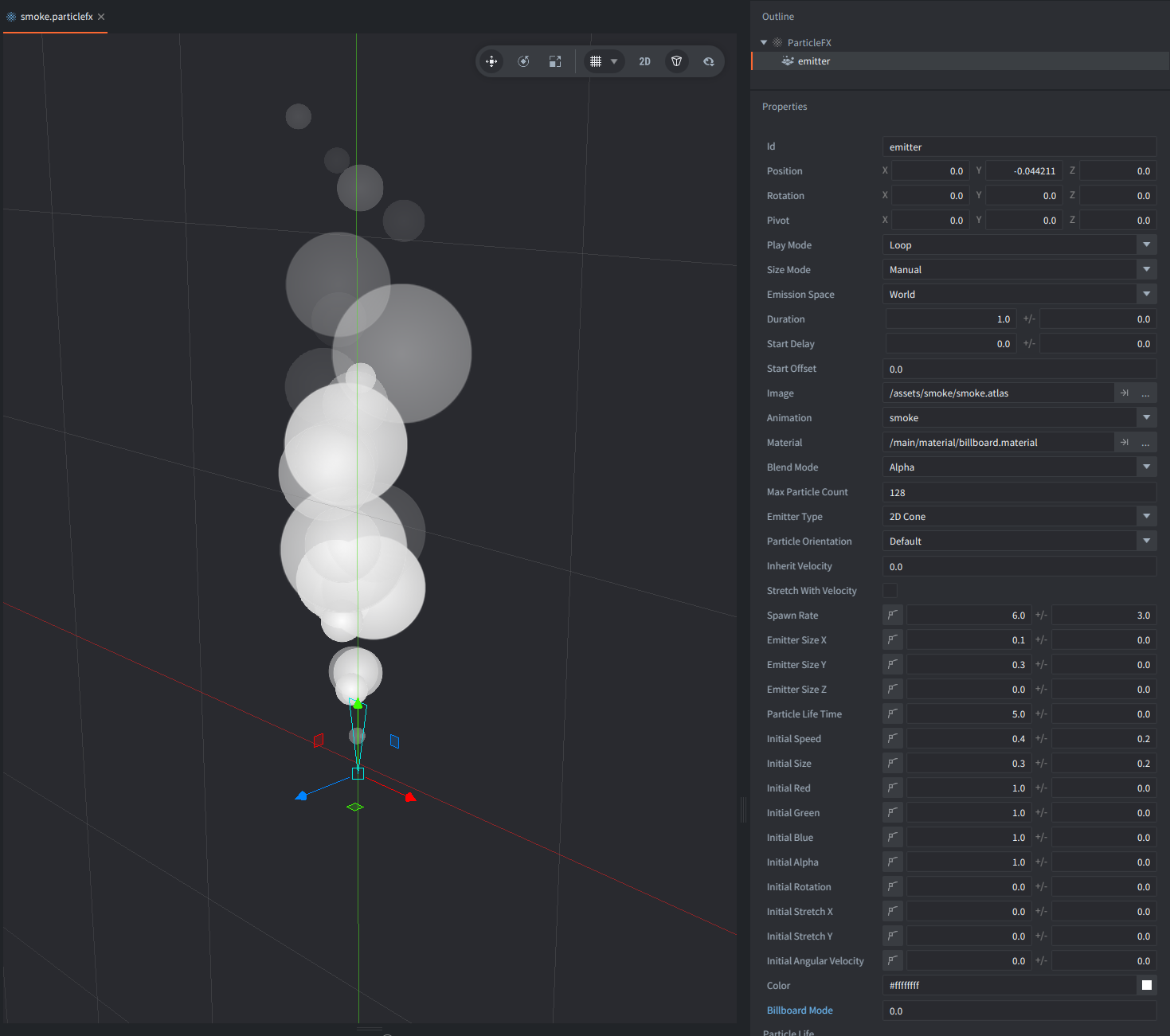

ParticleFX setup (smoke)

The smoke effect is defined in assets/smoke/smoke.particlefx. The relevant settings are:

1. Emitter material: example/billboard.material
2. Emitter attribute: billboard_mode = 0.0 (screen-aligned billboard; see below)
3. Emission space: World
   • This ensures particles exist in world space, while still being oriented towards the camera by the vertex shader.

Billboard modes

The vertex shader supports two simple modes controlled by billboard_mode:

• 0.0 - screen-aligned billboard (faces the camera fully using the camera’s right/up vectors)
• 1.0 - axis-locked billboard (rotates only around the world Y axis; useful for upright foliage)

You can set this value per Sprite instance or per ParticleFX emitter.

Camera

This example uses the Simple FPS Camera extension by Jhonny for camera control:

• Click Left Mouse Button and move to orbit the camera around the scene.
• Scroll to zoom in or out.

Credits

Assets by:

• 3D buildings and props by Kay Lousberg: KayKit - Medieval Hexagon
• Trees and rocks - screenshots of 3D models by Kenney: Fantasy Town Kit
• Particlefx smoke texture - Defold Foundation - free to use - CC0

Scripts

billboard.vp

#version 140

in highp vec4 position;   // Local quad vertex position (XY plane).
in highp mat4 mtx_world;  // Per-instance world matrix (translation = center, columns contain scale).
in mediump vec2 texcoord0;
in mediump vec4 color;
in lowp float billboard_mode; // 0.0 = screen-aligned, 1.0 = axis-locked (world Y axis).

uniform vs_uniforms
{
    mat4 view_proj;
    // View matrix used to derive camera basis vectors (right/up) and camera position.
    mat4 view;
    mat4 proj;
};

out mediump vec2 var_texcoord0;
out mediump vec4 var_color;

// Screen-aligned billboard:
// Uses camera right/up vectors (from the view matrix) so the quad always faces the camera.
vec3 computeScreenBillboard(vec3 center, vec2 local, float scaleX, float scaleY)
{
    // Camera basis vectors in world space.
    vec3 right = vec3(view[0][0], view[1][0], view[2][0]);
    vec3 up    = vec3(view[0][1], view[1][1], view[2][1]);
    return center + right * local.x * scaleX + up * local.y * scaleY;
}

// Axis-locked billboard (Y-up):
// Rotates towards the camera only around the world Y axis, keeping the quad upright.
vec3 computeAxisLockedBillboard(vec3 center, vec2 local, float scaleX, float scaleY)
{
    vec3 world_up = vec3(0.0, 1.0, 0.0);

    // Reconstruct camera world position from the view matrix.
    // (Equivalent to inverse(view) * vec4(0,0,0,1), but cheaper.)
    vec3 camera_position = vec3(
        -dot(view[0].xyz, view[3].xyz),
        -dot(view[1].xyz, view[3].xyz),
        -dot(view[2].xyz, view[3].xyz)
    );
    vec3 camera_vector = camera_position - center;

    // Project onto horizontal plane so we only rotate around Y.
    camera_vector.y = 0.0;

    // Avoid NaN when the camera is directly above the center (zero-length vector).
    if (length(camera_vector) < 0.0001)
    {
        camera_vector = vec3(0.0, 0.0, 1.0);
    }

    camera_vector = normalize(camera_vector);
    vec3 right = normalize(cross(world_up, camera_vector));
    vec3 up = world_up;

    return center + right * local.x * scaleX + up * local.y * scaleY;
}

void main()
{
    // Extract per-instance scale from the world matrix columns.
    // This preserves scaling applied to the sprite/particle in the editor.
    float scaleX = length(mtx_world[0].xyz);
    float scaleY = length(mtx_world[1].xyz);

    // Billboard center in world space is the translation part of the world matrix.
    vec3 center_position = mtx_world[3].xyz;

    // Local quad coordinates (in the same space as sprite/particle vertex data).
    vec2 local_position = position.xy;
    vec3 world_position;

    // Select the billboarding mode (treat anything < 1.0 as mode 0).
    if (billboard_mode < 1.0)
    {
        world_position = computeScreenBillboard(center_position, local_position, scaleX, scaleY);
    }
    else
    {
        world_position = computeAxisLockedBillboard(center_position, local_position, scaleX, scaleY);
    }

    // Transform to clip space and forward varyings to the fragment stage.
    gl_Position = view_proj * vec4(world_position, 1.0);
    var_texcoord0 = texcoord0;

    // Premultiply RGB by alpha to match Defold's built-in particle/sprite expectations.
    var_color = vec4(color.rgb * color.a, color.a);
}
