Apply Linear Impulse
Setup
This example shows how a Box2D body can be pushed instantly with a linear impulse.
What You’ll Learn
- How to get the Box2D body from a collision object.
- How to apply an impulse at a world position.
- How to receive touch and mouse input in a script.
Setup

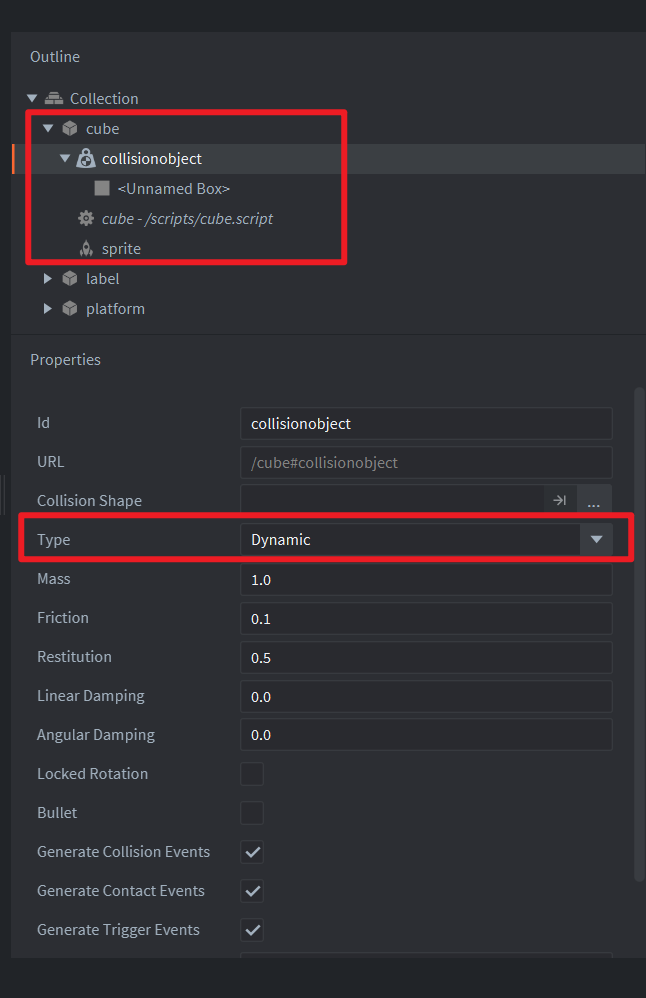

The collection contains a cube game object with a sprite, a dynamic collision object, and /example/cube.script. A static platform collision object catches the cube after the impulse. The project enables fixed-step physics and uses Box2D through Defold’s built-in b2d API.
How It Works
The script acquires input focus and listens for the built-in touch action. When the player clicks or touches the screen, it gets the cube’s Box2D body, reads the body’s current world position, and applies an upward linear impulse at that point.
Read more about the Box2D API here.
Scripts
cube.script
function init(self)
msg.post(".", "acquire_input_focus") -- <1>
end
function on_input(self, action_id, action)
if action_id == hash("touch") and action.pressed then -- <2>
local body = b2d.get_body("#collisionobject") -- <3>
local position = b2d.body.get_position(body) -- <4>
b2d.body.apply_linear_impulse(body, vmath.vector3(0, 600, 0), position) -- <5>
end
end
function final(self)
msg.post(".", "release_input_focus") -- <6>
end
--[[
1. The cube game object receives touch and mouse input.
2. The built-in touch action is sent when clicking or touching the screen.
3. b2d.get_body() gets the Box2D body from the cube collision object.
4. The body's current world position is used as the impulse application point.
5. apply_linear_impulse() immediately changes the body's velocity upward.
6. Input focus is released when the script instance is destroyed.
--]]
