Box2D dynamic shape scale and mass

Description

This example shows how to change bodies shapes and mass in runtime.

It includes 4 independent dynamic Box2D bodies.

Click or tap to give every square body a new random size, update its collision shape, recalculate its mass, and apply a random impulse.

What You’ll Learn

How to get a Box2D body from a Defold collision object
How to detect the active Box2D version with b2d.get_version()
How to resize collision geometry through the V2 fixture API
How to resize collision geometry through the V3 shape API
How update_mass = true makes body mass follow the new collision size
How to apply a dynamic impulse to the body

Setup

The collection contains four instances of block.go game object. The block.go prototype contains:

script_v3, which runs only with the Box2D V3 backend
script_v2, which runs only with the Box2D V2 backend
a square sprite
a dynamic box collision object with base half-extents of 40.0

The collection also contains walls game object with:

one static collision object with four box shapes around the play area
a label that explains the click or tap interaction.

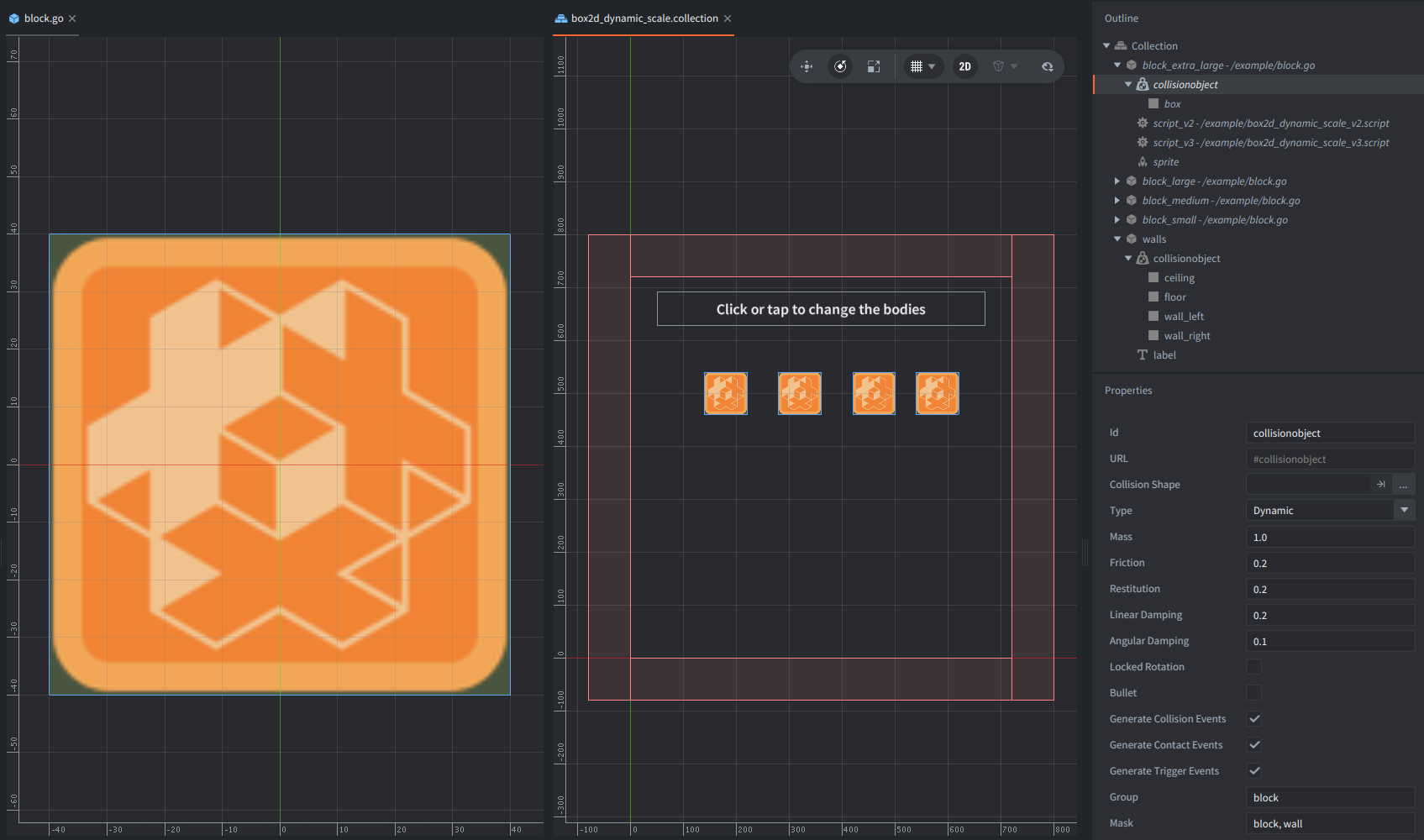

setup

The game.project of this example is configured to build with /box2d_v3.appmanifest by default. To test V2 locally after downloading the example, change Native Extensions -> App Manifest in game.project to /box2d_v2.appmanifest.

How It Works

Both scripts read b2d.get_version() in init() and are only active if a matching version is used - box2d_dynamic_scale_v2.script only continues when the major version is 2, while box2d_dynamic_scale_v3.script only continues when the major version is 3.

The active script acquires input focus and initialized a random number generator.

When the built-in touch action is pressed, each block picks a random uniform scale from 0.5 to 1.5. The script multiplies the base sprite size and base collision half-extent by that scale, so the visible square and physics box stay aligned.

The mass changes because update_mass = true makes Box2D recalculate the body mass from the resized shape.

In Box2D V2, collision geometry is attached to a body through fixtures. The V2 script reads the first fixture with b2d.body.get_fixtures() and resizes it with b2d.fixture.set_shape(body, fixture.index, shape, true).

In Box2D V3, collision geometry is attached through shapes. The V3 script reads the first shape with b2d.body.get_shapes() and resizes it with b2d.shape.set_shape(shape.shape_id, shape, true).

After resizing, the active script applies a random linear impulse at the body’s world center. Since each body has just recalculated its mass from its new collision size, the resulting movement makes the size and mass changes visible.

Scripts

box2d_dynamic_scale_v3.script

function init(self)
    -- This script uses the Box2D V3 fixture API.
    self.active = b2d.get_version().major == 3

    -- If Box2D V3 is not used, skip further processing
    if not self.active then
        return
    end

    -- `b2d.get_body()` returns the native Box2D body created by the given collision object.
    self.body = b2d.get_body("#collisionobject")

    -- In Box2D V3, collision geometry and material data live in shapes.
    self.shape_id = b2d.body.get_shapes(self.body)[1].shape_id

    -- Acquire input focus to handle inputs
    msg.post(".", "acquire_input_focus")

    -- Initialize random number generator
    math.randomseed(os.time())
end

-- The built-in touch action also covers mouse clicks in the built-in all.input_binding.
local TOUCH = hash("touch")

-- Base size will be used to change the scale around the initial size
local BASE_SIZE = 80.0
local BASE_HALF_EXTENT = 40.0

-- Helper function to get a random scale with values in range 0.5-1.5
local function get_random_scale()
    local random_number = math.random(5,15)/10
    return vmath.vector3(random_number, random_number, 0)
end

local function resize_body(self, scale_vector)
    local half_extent = BASE_HALF_EXTENT * scale_vector.x

    -- The last parameter update_mass set to true will cause the mass to be updated.
    local update_mass = true

    -- Update a box shape using the polygon box convenience format.
    -- V3 collision geometry is addressed through shapes.
    -- The shape type must match the current fixture shape type.
    b2d.shape.set_shape(self.shape_id, {
        type = b2d.shape.SHAPE_TYPE_BOX,
        hx = half_extent,
        hy = half_extent,
    }, update_mass)

    -- Also change the vector size to match the new shape
    local size_vector = BASE_SIZE * scale_vector
    go.set("#sprite", "size", size_vector)
end

function on_input(self, action_id, action)
    -- If Box2D V3 is not used, skip further processing
    if not self.active then
        return
    end

    if action_id == TOUCH and action.pressed then
        -- When click or touch is pressed - change the scale randomly
        resize_body(self, get_random_scale())

        -- And apply a random impulse to the center of the body
        -- to notice mass differences applied
        local random_impulse_x = math.random(-400,400)
        local random_impulse_y = math.random(-400,400)
        local impulse = vmath.vector3(random_impulse_x, random_impulse_y, 0)
        b2d.body.apply_linear_impulse(self.body, impulse, b2d.body.get_world_center(self.body))
    end
end

box2d_dynamic_scale_v2.script

function init(self)
    -- This script uses the Box2D V2 fixture API.
    self.active = b2d.get_version().major == 2

    -- If Box2D V2 is not used, skip further processing
    if not self.active then
        return
    end

    -- `b2d.get_body()` returns the native Box2D body created by the given collision object.
    self.body = b2d.get_body("#collisionobject")

    -- In Box2D V2, collision geometry and material data live in fixtures.
    self.fixture_index = b2d.body.get_fixtures(self.body)[1].index
    -- v3:
    self.shape_id = b2d.body.get_shapes(self.body)[1].shape_id

    -- Acquire input focus to handle inputs
    msg.post(".", "acquire_input_focus")

    -- Initialize random number generator
    math.randomseed(os.time())
end

-- The built-in touch action also covers mouse clicks in the built-in all.input_binding.
local TOUCH = hash("touch")

-- Base size will be used to change the scale around the initial size
local BASE_SIZE = 80.0
local BASE_HALF_EXTENT = 40.0

-- Helper function to get a random scale with values in range 0.5-1.5
local function get_random_scale()
    local random_number = math.random(5,15)/10
    return vmath.vector3(random_number, random_number, 0)
end

local function resize_body(self, scale_vector)
    local half_extent = BASE_HALF_EXTENT * scale_vector.x

    -- The last parameter update_mass set to true will cause the mass to be updated.
    local update_mass = true

    -- Update a box shape using the polygon box convenience format.
    -- V2 collision geometry is addressed through fixtures attached to the body.
    -- The shape type must match the current fixture shape type.
    b2d.fixture.set_shape(self.body, self.fixture_index, {
        type = b2d.shape.SHAPE_TYPE_BOX,
        hx = half_extent,
        hy = half_extent,
    }, update_mass)

    -- Also change the vector size to match the new shape
    local size_vector = BASE_SIZE * scale_vector
    go.set("#sprite", "size", size_vector)
end

function on_input(self, action_id, action)
    -- If Box2D V2 is not used, skip further processing
    if not self.active then
        return
    end

    if action_id == TOUCH and action.pressed then
        -- When click or touch is pressed - change the scale randomly
        resize_body(self, get_random_scale())

        -- And apply a random impulse to the center of the body
        -- to notice mass differences applied
        local random_impulse_x = math.random(-400,400)
        local random_impulse_y = math.random(-400,400)
        local impulse = vmath.vector3(random_impulse_x, random_impulse_y, 0)
        b2d.body.apply_linear_impulse(self.body, impulse, b2d.body.get_world_center(self.body))
    end
end
