Box2D Motor Joint

Description

This example creates a motorized Box2D joint at runtime. It works with both Box2D V2 and V3 by attaching one script for each backend. Each script checks b2d.get_version() during init() and becomes a no-op when the other backend is active.

Click or tap the window to reverse the motor direction.

What You’ll Learn

How to get Box2D body handles from Defold collision objects
How to detect the active Box2D version with b2d.get_version()
How to create a pivoted motor joint with b2d.joint.create_revolute()
How to control joint motor speed with b2d.joint.set_motor_speed()
How to tune the Box2D V3 joint solver with b2d.world.set_joint_tuning()

Setup

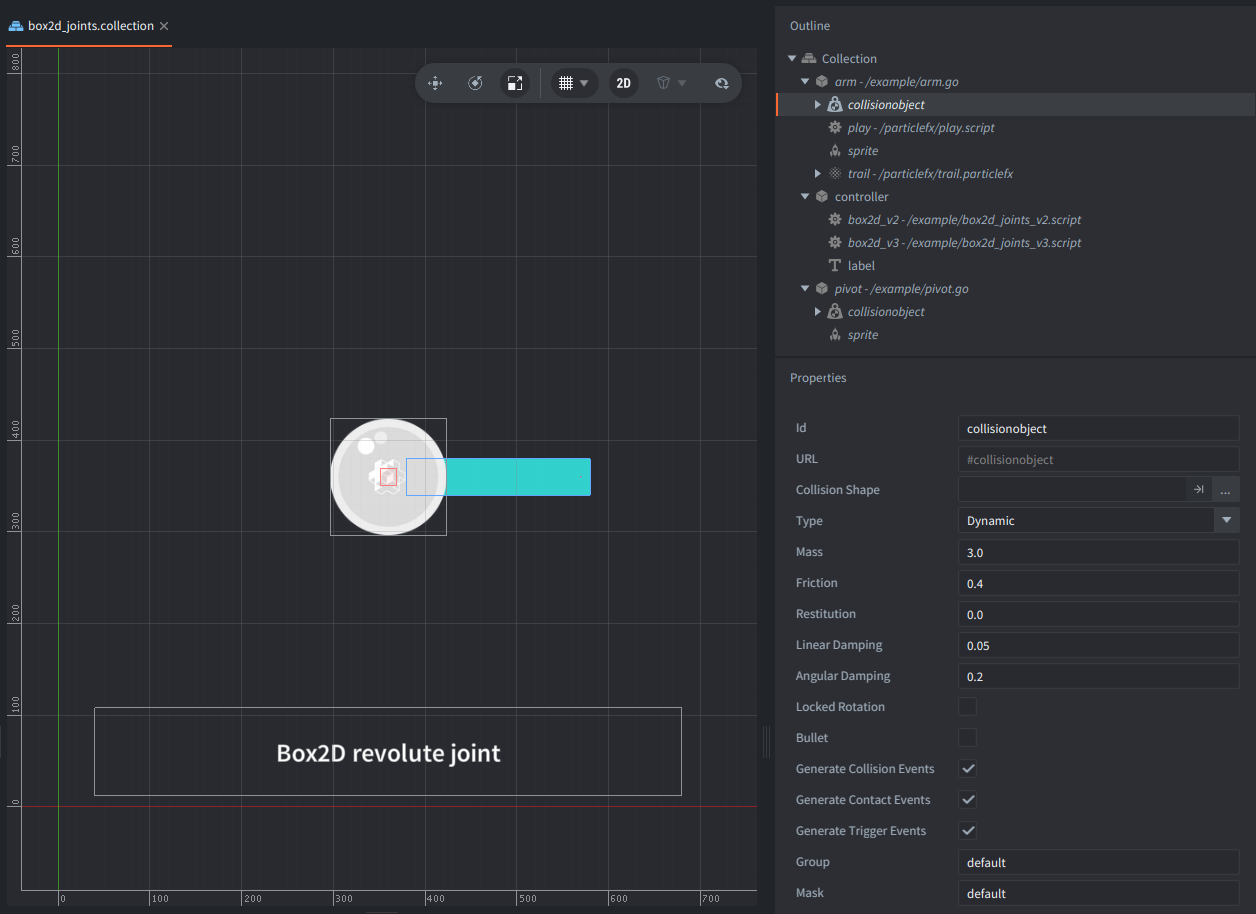

The collection contains a static pivot game object, one dynamic arm game object with a particle effect, and a controller game object.

The pivot object marks the world point the arm should rotate around. The arm object is the dynamic body driven by the joint. The example uses a revolute joint with its motor enabled, because the revolute joint provides a stable hinge pivot while the motor drives the rotation.

The controller has both backend scripts attached. Each script checks b2d.get_version() and only runs when the selected app manifest matches its Box2D backend.

setup

The game.project of this example is configured to build with /box2D_V3.appmanifest by default. To test V2 locally after downloading the example, change Native Extensions -> App Manifest in game.project to /box2D_V2.appmanifest.

game_project

How It Works

Both scripts read b2d.get_version() once. box2d_motor_joint_v2.script only continues when the major version is 2, while box2d_motor_joint_v3.script only continues when the major version is 3.

b2d.get_body() returns the Box2D bodies owned by the pivot and arm collision objects. The active script then creates a revolute joint between those bodies with b2d.joint.create_revolute().

The joint definition uses:

local_anchor_a on the pivot body
local_anchor_b on the arm body
enable_motor to turn on the joint motor
max_motor_torque to limit how strongly the motor can rotate the arm
motor_speed to set the current motor direction and speed

The important part is the arm anchor. The pivot is placed in the collection as a visible reference point. The scripts convert that world position into the arm’s local space, so the arm rotates around the same visible pivot instead of rotating around its center.

Click or tap to reverse the motor with b2d.joint.set_motor_speed(). The V3 script also calls b2d.world.set_joint_tuning() to adjust the joint solver used by the Box2D V3 backend.

Scripts

box2d_motor_joint_v3.script

local TOUCH = hash("touch")
local MOTOR_SPEED = 1.5
local MAX_MOTOR_TORQUE = 50000

local function update_label(self)
    local direction = self.direction > 0 and "counter-clockwise" or "clockwise"
    label.set_text("#label", string.format("Box2D V3 motor joint\nMotor: %s\nClick or touch to reverse", direction)) -- <1>
end

local function set_motor_speed(self)
    b2d.joint.set_motor_speed(self.joint, self.direction * MOTOR_SPEED) -- <2>
    update_label(self)
end

local function reverse_motor(self)
    self.direction = -self.direction -- <3>
    set_motor_speed(self)
end

function init(self)
    self.direction = -1

    local b2d_version = b2d.get_version() -- <4>
    self.active = b2d_version.major == 3 -- <5>

    if not self.active then -- <6>
        return
    end

    msg.post(".", "acquire_input_focus") -- <7>

    local world = b2d.get_world() -- <8>
    b2d.world.set_gravity(world, vmath.vector3()) -- <9>
    b2d.world.set_joint_tuning(world, 60, 1.0) -- <10>

    local pivot_position = go.get_position("pivot") -- <11>
    local pivot = b2d.get_body(msg.url(nil, "pivot", "collisionobject")) -- <12>
    local arm = b2d.get_body(msg.url(nil, "arm", "collisionobject")) -- <13>
    b2d.body.set_gravity_scale(arm, 0.0) -- <14>

    local arm_anchor = b2d.body.get_local_point(arm, pivot_position) -- <15>

    self.joint = b2d.joint.create_revolute(pivot, arm, { -- <16>
        local_anchor_a = vmath.vector3(),
        local_anchor_b = arm_anchor,
        enable_motor = true,
        max_motor_torque = MAX_MOTOR_TORQUE,
        motor_speed = self.direction * MOTOR_SPEED,
        collide_connected = false,
    })

    update_label(self)
end

-------------------
-- Input handling:

function on_input(self, action_id, action)
    if not self.active then -- <17>
        return
    end

    if action_id == TOUCH and action.pressed then -- <18>
        reverse_motor(self)
    end
end

function final(self)
    if not self.active then
        return
    end

    if self.joint then
        b2d.joint.destroy(self.joint) -- <19>
        self.joint = nil
    end

    msg.post(".", "release_input_focus") -- <20>
end

--[[
1. Updates the label with the active backend and the current motor direction.
2. Sets the motor speed on the revolute joint through the Box2D joint API.
3. Reverses the stored motor direction before applying the new speed.
4. Reads the active Box2D backend version.
5. Enables this script only when the project is running the Box2D V3 backend.
6. Stops the script early when Box2D V3 is not active.
7. Acquires input focus so this script can receive click or touch input.
8. Gets the current Box2D world handle.
9. Clears world gravity so the arm stays in the editor-placed setup.
10. Tunes the Box2D V3 joint solver used by the motorized joint.
11. Reads the editor-placed pivot position, which is the world point the arm should rotate around.
12. Gets the Box2D body from the static `pivot` collision object.
13. Gets the Box2D body from the dynamic `arm` collision object.
14. Disables gravity on the arm body so the example focuses on the joint motor.
15. Converts the pivot world position into the arm's local space using the V3 body helper. This keeps the arm rotating around the visible pivot.
16. Creates a revolute joint with its motor enabled. The revolute joint provides the pivot, while the motor drives the rotation.
17. Skips input handling if this script is inactive.
18. Handles a click or touch press and uses it to reverse the motor direction.
19. Destroys the runtime-created joint during cleanup.
20. Releases input focus when the script or collection is unloaded.
]]

box2d_motor_joint_v2.script

local TOUCH = hash("touch")
local MOTOR_SPEED = 1.5
local MAX_MOTOR_TORQUE = 50000

local function update_label(self)
    local direction = self.direction > 0 and "counter-clockwise" or "clockwise"
    label.set_text("#label", string.format("Box2D V2 motor joint\nMotor: %s\nClick or touch to reverse", direction)) -- <1>
end

local function set_motor_speed(self)
    b2d.joint.set_motor_speed(self.joint, self.direction * MOTOR_SPEED) -- <2>
    update_label(self)
end

local function reverse_motor(self)
    self.direction = -self.direction -- <3>
    set_motor_speed(self)
end

function init(self)
    self.direction = -1

    local b2d_version = b2d.get_version() -- <4>
    self.active = b2d_version.major == 2 -- <5>

    if not self.active then -- <6>
        return
    end

    msg.post(".", "acquire_input_focus") -- <7>

    local pivot_position = go.get_position("pivot") -- <8>
    local arm_position = go.get_position("arm")
    local pivot = b2d.get_body(msg.url(nil, "pivot", "collisionobject")) -- <9>
    local arm = b2d.get_body(msg.url(nil, "arm", "collisionobject")) -- <10>
    b2d.body.set_gravity_scale(arm, 0.0) -- <11>

    local arm_anchor = vmath.vector3(
        pivot_position.x - arm_position.x,
        pivot_position.y - arm_position.y,
        pivot_position.z - arm_position.z
    ) -- <12>

    self.joint = b2d.joint.create_revolute(pivot, arm, { -- <13>
        local_anchor_a = vmath.vector3(),
        local_anchor_b = arm_anchor,
        enable_motor = true,
        max_motor_torque = MAX_MOTOR_TORQUE,
        motor_speed = self.direction * MOTOR_SPEED,
        collide_connected = false,
    })

    update_label(self)
end

-------------------
-- Input handling:

function on_input(self, action_id, action)
    if not self.active then -- <14>
        return
    end

    if action_id == TOUCH and action.pressed then -- <15>
        reverse_motor(self)
    end
end

function final(self)
    if not self.active then
        return
    end

    if self.joint then
        b2d.joint.destroy(self.joint) -- <16>
        self.joint = nil
    end

    msg.post(".", "release_input_focus") -- <17>
end

--[[
1. Updates the label with the active backend and the current motor direction.
2. Sets the motor speed on the revolute joint through the Box2D joint API.
3. Reverses the stored motor direction before applying the new speed.
4. Reads the active Box2D backend version.
5. Enables this script only when the project is running the Box2D V2 backend.
6. Stops the script early when Box2D V2 is not active.
7. Acquires input focus so this script can receive click or touch input.
8. Reads the editor-placed pivot and arm positions used to calculate the local joint anchor.
9. Gets the Box2D body from the static `pivot` collision object.
10. Gets the Box2D body from the dynamic `arm` collision object.
11. Disables gravity on the arm body so the example focuses on the joint motor.
12. Converts the pivot world position into the arm's local space using the editor positions. This keeps the arm rotating around the visible pivot.
13. Creates a revolute joint with its motor enabled. The revolute joint provides the pivot, while the motor drives the rotation.
14. Skips input handling if this script is inactive.
15. Handles a click or touch press and uses it to reverse the motor direction.
16. Destroys the runtime-created joint during cleanup.
17. Releases input focus when the script or collection is unloaded.
]]
