Orthographic Zoom

Setup

This example shows the recommended setup for gameplay zoom with an orthographic camera: keep the camera component in orthographic Fixed mode, then change orthographic_zoom from script.

Setup

The setup consists of three parts:

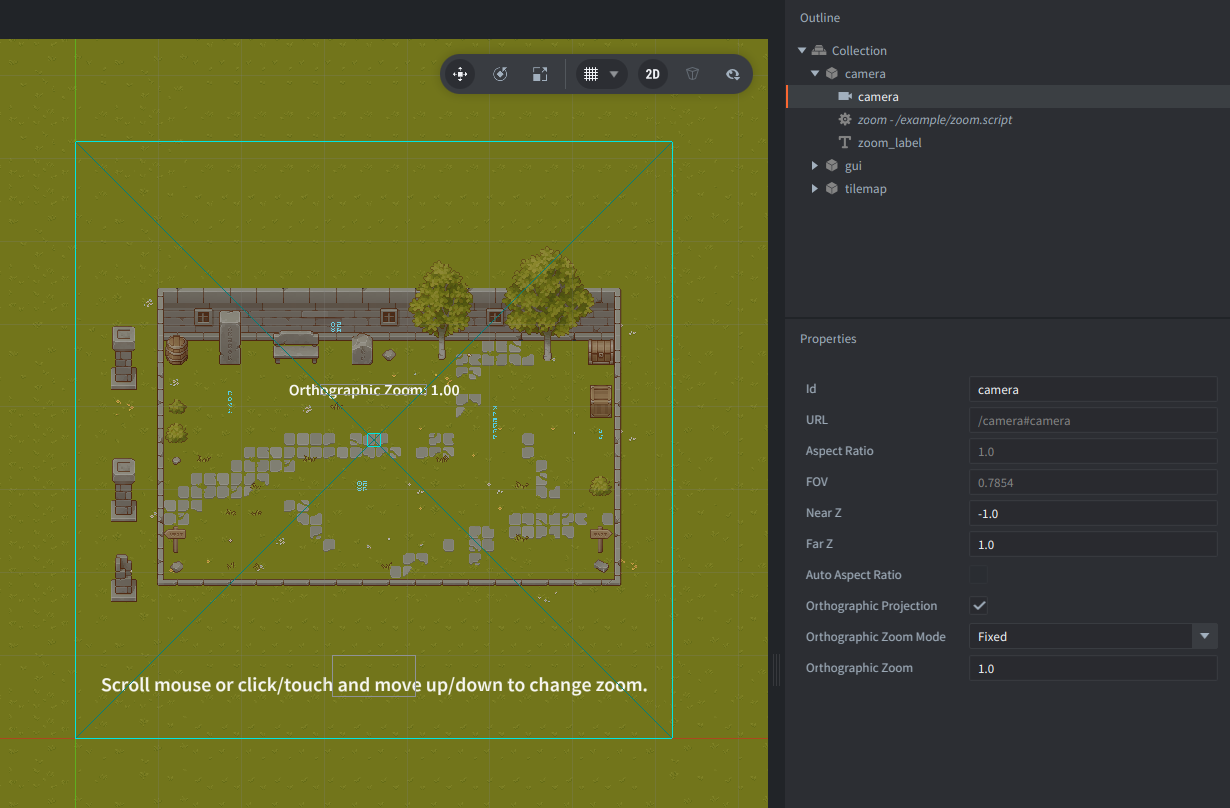

camera - game object containing the camera component, the zoom.script, and a label that displays the current zoom value. The camera component has Orthographic Projection enabled and Orthographic Zoom Mode set to Fixed with Orthographic Zoom set to 1.0 initially.
tilemap- a simple level tilemap that makes the zoom effect easy to see as you move between a closer and wider view.
gui - a GUI scene with a short instruction label describing the available controls.

How it works

Scrolling the mouse wheel changes the camera zoom in small fixed steps.
Clicking or touching and moving up and down changes the zoom continuously based on the pointer delta.
The script clamps the zoom between minimum and maximum values before writing it back to the camera component, so the example stays within a useful range.

Because the camera is in orthographic Fixed mode, the zoom behavior is controlled directly by the orthographic_zoom value instead of being recalculated by another orthographic mode.

Credits

This project uses the following free art assets:

Pixel Art Top Down Basic tilesets by Cainos: https://cainos.itch.io/pixel-art-top-down-basic

Scripts

zoom.script

-- Local constants to define maximum and minimum zoom:
local MIN_ZOOM = 0.75
local MAX_ZOOM = 3.0

-- Local constants to define how fast zooming is on input:
local SCROLL_ZOOM_STEP = 0.1
local DRAG_ZOOM_SCALE = 0.01

-- Helper function to update the label with information on current zoom value.
local function update_zoom_label(zoom)
    label.set_text("#zoom_label", string.format("Orthographic Zoom: %.2f", zoom))
end

-- Helper function to clamp the zoom between minimum and maximum values.
local function clamp_zoom(zoom)
    return math.min(MAX_ZOOM, math.max(MIN_ZOOM, zoom))
end

-- Helper function to set the new clamped zoom on the camera component and update label.
local function set_zoom(self, zoom)
    self.zoom = clamp_zoom(zoom)
    go.set("#camera", "orthographic_zoom", self.zoom)
    update_zoom_label(self.zoom)
end

function init(self)
    -- Acquire input focus for the example:
    msg.post(".", "acquire_input_focus")

    -- You can set manually the orthographic mode to fixed too
    -- (optional, as we set it in the component already):
    camera.set_orthographic_mode("#camera", camera.ORTHO_MODE_FIXED)

    -- Get the current zoom of the camera component:
    self.zoom = go.get("#camera", "orthographic_zoom")

    -- Update the information about zoom on the label:
    update_zoom_label(self.zoom)
end

function on_input(self, action_id, action)
    -- Handle input on mouse scroll and touch/click:
    if action_id == hash("mouse_wheel_up") then
        -- Increasing zoom makes the orthographic camera zoom in.
        set_zoom(self, self.zoom + SCROLL_ZOOM_STEP)
    elseif action_id == hash("mouse_wheel_down") then
        -- Decreasing zoom makes the orthographic camera zoom out.
        set_zoom(self, self.zoom - SCROLL_ZOOM_STEP)
    elseif action_id == hash("touch") and not action.pressed and not action.released then
        -- While dragging, use the vertical pointer delta for continuous zoom control.
        -- Positive `action.dy` means the pointer moved up on screen.
        go.cancel_animations("#camera", "orthographic_zoom")
        set_zoom(self, self.zoom + action.dy * DRAG_ZOOM_SCALE)
    end
end
