Character - Skeletal Animation

Description

This example uses a skinned glTF character with multiple animations and a simple orbit camera. The model contains both mesh and animation data, so the example can switch animations and visible mesh parts without loading any extra assets.

What You’ll Learn

How to play named skeletal animations from a glTF model
How to toggle mesh parts on a skinned model to change the visible equipment
How to use Defold’s built-in skinned model material for animated meshes
How to orbit a camera around a 3D character
How to trigger animations from GUI buttons

Setup

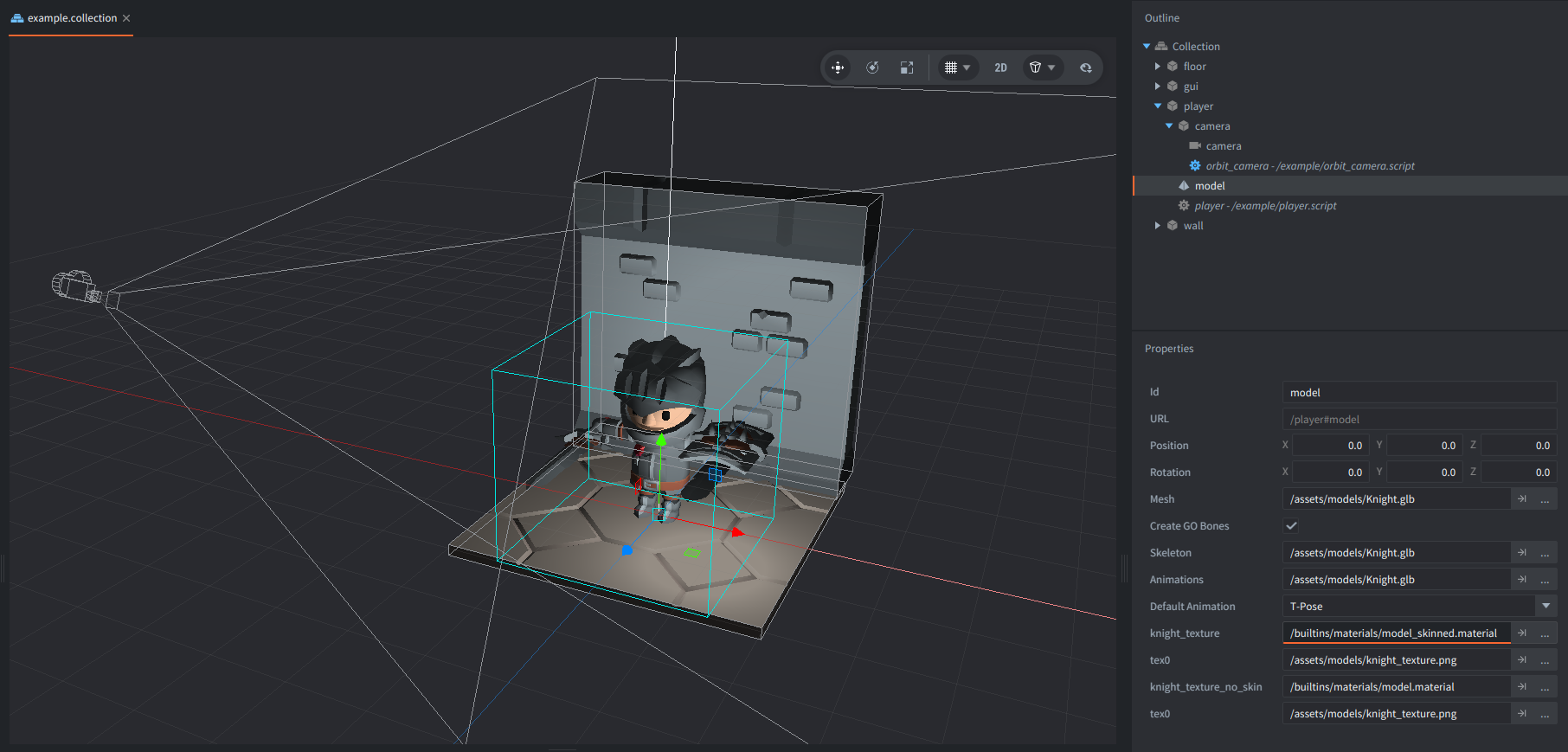

The collection contains five game objects: floor, wall, player, camera, and gui.

floor: Contains a Model component using floor_tile_large.gltf.glb with the dungeon texture. It forms the ground plane of the scene.
wall: Contains a Model component using wall.gltf.glb with the same dungeon texture. It closes off the back of the room.
player: Contains player.script and a skinned Model component using Knight.glb and knight_texture.png. The animated knight_texture material slot uses /builtins/materials/model_skinned.material, which supports the skeleton skinning used by the character mesh. The glTF file includes the character meshes, skeleton, and animation clips.
camera: Contains a Camera component and orbit_camera.script. Drag or touch to orbit around the character, and use the mouse wheel to zoom. The script exposes zoom, min_zoom, max_zoom, zoom_speed, rotation_speed, and offset as properties so the camera can be tuned from the collection.
gui: Contains example.gui and example.gui_script. The GUI shows a short instruction label plus five buttons labeled 1 to 5. Clicking or tapping them sends animation messages to the player.

setup

How It Works

player.script starts the model in Idle, then enables the mesh parts that define the chosen loadout. Pressing keys 1 to 5, or clicking the GUI buttons, calls model.play_anim() with different animation names stored in the glTF file.

example.gui_script uses gui.pick_node() to detect which button was clicked or tapped. It sends the chosen animation name to the player with msg.post(), so the GUI stays decoupled from the model logic.

The orbit camera script keeps the character centered while the player drags, touches, or scrolls. Zoom changes are clamped between the min_zoom and max_zoom properties, making it easy to inspect the animation from different angles without moving the character itself.

The model and assets are made by Kay Lousberg.

Scripts

player.script

local function play_animation(name)
    model.play_anim("#model", name, go.PLAYBACK_LOOP_FORWARD)
end

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>
    play_animation("Idle") -- <2>

    model.set_mesh_enabled("#model", "1H_Sword", true) -- <3>
    model.set_mesh_enabled("#model", "1H_Sword_Offhand", false)
    model.set_mesh_enabled("#model", "2H_Sword", false)

    model.set_mesh_enabled("#model", "Knight_Helmet", true)
    model.set_mesh_enabled("#model", "Knight_Cape", true)

    model.set_mesh_enabled("#model", "Spike_Shield", true)
    model.set_mesh_enabled("#model", "Round_Shield", false)
    model.set_mesh_enabled("#model", "Rectangle_Shield", false)
    model.set_mesh_enabled("#model", "Badge_Shield", false)
end

function on_message(self, message_id, message, sender)
    if message_id == hash("play_idle") then -- <4>
        play_animation("Idle")
    elseif message_id == hash("play_walk") then
        play_animation("Walking_A")
    elseif message_id == hash("play_attack") then
        play_animation("1H_Melee_Attack_Chop")
    elseif message_id == hash("play_block") then
        play_animation("Block")
    elseif message_id == hash("play_cheer") then
        play_animation("Cheer")
    end
end

function on_input(self, action_id, action)
    if action_id == hash("key_1") then
        play_animation("Idle") -- <5>
    elseif action_id == hash("key_2") then
        play_animation("Walking_A") -- <6>
    elseif action_id == hash("key_3") then
        play_animation("1H_Melee_Attack_Chop") -- <7>
    elseif action_id == hash("key_4") then
        play_animation("Block") -- <8>
    elseif action_id == hash("key_5") then
        play_animation("Cheer") -- <9>
    end
end

--[[
1. Acquire input focus so the number keys are sent to the script.
2. Start with the model's Idle animation.
3. Enable the mesh parts that define the visible weapon, helmet, cape, and shield.
4. Accept animation messages from the GUI and play the requested animation.
5. Play the idle animation.
6. Play the walking animation.
7. Play the chop attack animation.
8. Play the block animation.
9. Play the cheer animation.
]]

orbit_camera.script

go.property("zoom", 3) -- <1>
go.property("min_zoom", 3) -- <2>
go.property("max_zoom", 20) -- <3>
go.property("zoom_speed", 0.1) -- <4>
go.property("rotation_speed", 0.5) -- <5>
go.property("offset", vmath.vector3(0, 0, 0)) -- <6>

local function clamp_zoom(self)
    self.zoom_offset = math.min(math.max(self.zoom + self.zoom_offset, self.min_zoom), self.max_zoom) - self.zoom
end

function init(self)
    msg.post(".", "acquire_input_focus") -- <7>

    self.yaw = go.get(".", "euler.y") -- <8>
    self.pitch = go.get(".", "euler.x")
    self.zoom_offset = 0
    clamp_zoom(self)
    self.current_yaw = self.yaw
    self.current_pitch = self.pitch
    self.current_zoom = self.zoom_offset
end

function update(self, dt)
    self.current_yaw = vmath.lerp(0.15, self.current_yaw, self.yaw) -- <9>
    self.current_pitch = vmath.lerp(0.15, self.current_pitch, self.pitch)
    self.current_zoom = vmath.lerp(0.15, self.current_zoom, self.zoom_offset)

    local camera_yaw = vmath.quat_rotation_y(math.rad(self.current_yaw))
    local camera_pitch = vmath.quat_rotation_x(math.rad(self.current_pitch))
    local camera_rotation = camera_yaw * camera_pitch
    local camera_position = self.offset + vmath.rotate(camera_rotation, vmath.vector3(0, 0, self.zoom + self.current_zoom))

    go.set_position(camera_position) -- <10>
    go.set_rotation(camera_rotation)
end

function on_input(self, action_id, action)
    if action_id == hash("touch") and not action.pressed then
        self.yaw = self.yaw - action.dx * self.rotation_speed -- <11>
        self.pitch = self.pitch + action.dy * self.rotation_speed
    elseif action_id == hash("mouse_wheel_up") then
        self.zoom_offset = self.zoom_offset - self.zoom * self.zoom_speed -- <12>
        clamp_zoom(self)
    elseif action_id == hash("mouse_wheel_down") then
        self.zoom_offset = self.zoom_offset + self.zoom * self.zoom_speed -- <13>
        clamp_zoom(self)
    end
end

--[[
1. Default zoom distance from the model.
2. Minimum allowed zoom distance.
3. Maximum allowed zoom distance.
4. Zoom speed multiplier for the mouse wheel.
5. Rotation speed multiplier for drag and touch input.
6. Camera offset from the model origin.
7. Enable input so drag, touch, and wheel events reach the script.
8. Store the starting camera angles from the current game object rotation.
9. Smooth the camera toward the target rotation and zoom.
10. Apply the computed camera position every frame.
11. Drag or touch rotates the camera around the model.
12. Mouse wheel up zooms in, then clamps the zoom distance.
13. Mouse wheel down zooms out, then clamps the zoom distance.
]]

example.gui_script

local BUTTONS = {
    { node = "button_1", message = hash("play_idle") },
    { node = "button_2", message = hash("play_walk") },
    { node = "button_3", message = hash("play_attack") },
    { node = "button_4", message = hash("play_block") },
    { node = "button_5", message = hash("play_cheer") },
}

local function post_animation(message_id)
    msg.post("player#player", message_id)
end

function init(self)
    msg.post(".", "acquire_input_focus") -- <1>

    self.buttons = {}
    for i = 1, #BUTTONS do
        self.buttons[i] = {
            node = gui.get_node(BUTTONS[i].node),
            message = BUTTONS[i].message,
        }
    end
end

function on_input(self, action_id, action)
    if (action_id == hash("touch") or action_id == hash("mouse_button_left")) and action.pressed then -- <2>
        for i = 1, #self.buttons do
            local button = self.buttons[i]
            if gui.pick_node(button.node, action.x, action.y) then -- <3>
                post_animation(button.message) -- <4>
                break
            end
        end
    end
end

--[[
1. Acquire input focus so the GUI receives clicks and touches.
2. React to mouse or touch press events.
3. Check whether the pointer landed on one of the button nodes.
4. Send the selected animation message to the player script.
]]
