All user input is captured by the engine and dispatched as actions to script- and GUI script components in game objects that have acquired input focus and that implement the
on_input() function. This manual explains how you set up bindings to capture input and how you create code that responds to it.

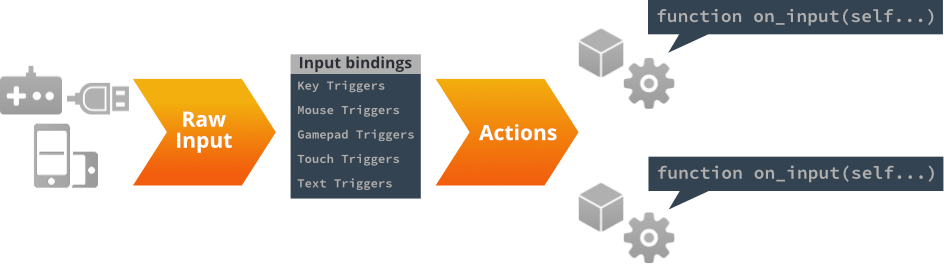

The input system uses a set of simple and powerful concepts, allowing you to manage input as you see fit for your game.

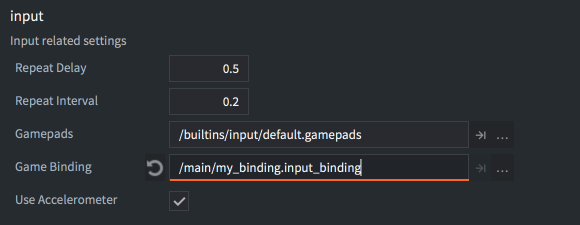

The input bindings is a project wide table that allows you to specify how device input should translate into named actions before they are dispatched to your script components and GUI scripts. You can create a new input binding file, right click a location in the Assets view and select New... ▸ Input Binding. To make the enginen use the new file, change the Game Binding entry in “game.project”.

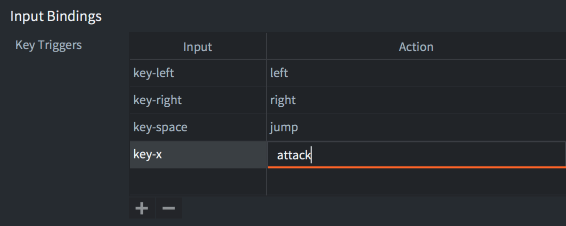

A default input binding file is automatically created with all new project templates so there is usually no need to create a new binding file. The default file is called “game.input_binding” and can be found in the “input” folder in the project root. Double click the file to open it in the editor:
To create a new binding, click the + button at the bottom of the relevant trigger type section. Each entry has two fields:
jump. Note that there is a known bug where touch inputs unfortunately cannot have the same action names as other inputs.
There are five device specific types of triggers that you can create
Mouse button inputs
MOUSE_BUTTON_MIDDLE are equivalent to
MOUSE_BUTTON_1) input actions are sent for single touch inputs as well.
Mouse wheel inputs detect scroll actions. The field
1 if the wheel is scrolled and
0 otherwise. (Scroll actions are dealt with as they were button presses. Defold does not currently support fine grained scroll input on touch pads.)
Mouse movement are not bound in the input bindings but
action_id is set to
nil and the
action table is populated with the location and delta movement of the mouse position.
gamepadfield of the action table to the gamepad number the input originated from:
if action_id == hash("gamepad_start") then if action.gamepad == 0 then -- gamepad 0 wants to join the game end end
Gamepad input and offers bindings for:
On Windows, only XBox 360 controllers are currently supported. To hook up your 360 controller to your Windows machine, make sure it is setup correctly. See http://www.wikihow.com/Use-Your-Xbox-360-Controller-for-Windows
Gamepad input setup uses a separate mapping file for each hardware gamepad type. See below for more information.
Multi-touch type triggers are available on iOS and Android devices in native applications and HTML5 bundles. They populate a table in the action table called
touch. The elements in the table are integer-indexed with numbers
N is the number of touch points. Each element of the table contains fields with input data:
-- Spawn at each touch point for i, touchdata in ipairs(action.touch) do local pos = vmath.vector3(touchdata.x, touchdata.y, 0) factory.create("#factory", pos) end
Multi-touch must not be assigned the same action as the mouse button input for
MOUSE_BUTTON_1. Assigning the same action will effectively override single-touch and prevent you from receiving any single-touch events.
The Defold-Input asset can be used to easily set up virtual on-screen controls such as buttons and analog sticks with support for multi touch.
text captures normal text input. It sets the
text field of the action table to a string containing the typed character. The action is only fired at the press of the button, no
repeated action is sent.
if action_id == hash("text") then -- Concatenate the typed character to the "user" node... local node = gui.get_node("user") local name = gui.get_text(node) name = name .. action.text gui.set_text(node, name) end
marked-text is used primarily for asian keyboards where multiple keypresses can map to single inputs. For example, with the iOS “Japanese-Kana” keyboard, the user can type combinations and the top of the keyboard will display avaliable symbols or sequences of symbols that can be entered.
textto the currently entered sequence of symbols (the “marked text”).
texttype trigger action is sent (provided that one is set up in the input binding list). The separate action sets the action field
textto the final sequence of symbols.
To listen to input actions in a script component or GUI script, the message
acquire_input_focus should be sent to the game object holding the component:
-- tell the current game object (".") to acquire input focus msg.post(".", "acquire_input_focus")

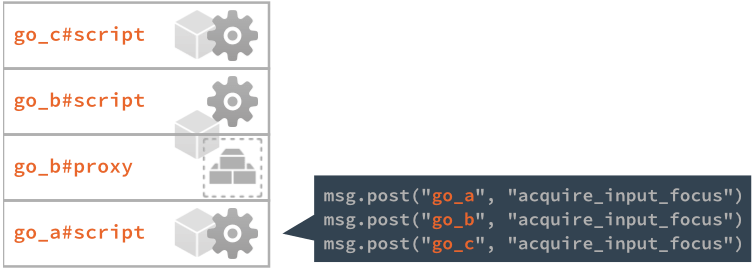

This message instructs the engine to add input capable components (script components, GUI components and collection proxies) in the game objects to the input stack. The game object components are put on top of the input stack; the component that is added last will be top of the stack. Note that if the game object contains more than one input capable component, all components will be added to the stack:
Each game world that is dynamically loaded through a collection proxy has its own input stack. For action dispatch to reach the loaded world’s input stack, the proxy component must be on the main world’s input stack.
If a game object that has already aquired input focus does so again, its component(s) will be moved to the top of the stack.
To stop listening to input actions, send a
release_input_focus message to the game object. This message will remove any of the game object’s components from the input stack:
-- tell the current game object (".") to release input focus. msg.post(".", "release_input_focus")

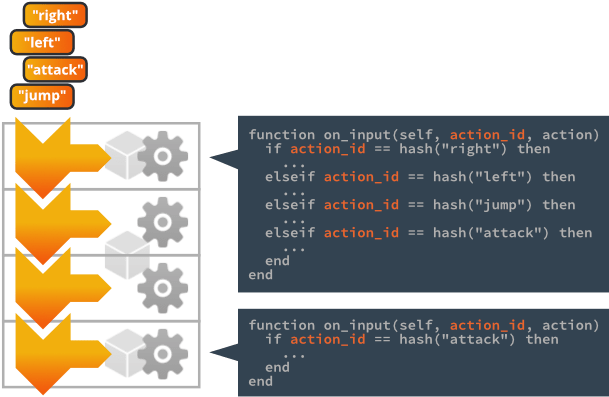

Input actions are dispatched according to the input stack, from the top to the bottom.
Any component that is on the stack containing an
on_input() function will have that function called, once for each input action during the frame, with the following arguments:
pressedetc. See on_input() for details on the available action fields.
function on_input(self, action_id, action) if action_id == hash("left") and action.pressed then -- move left local pos = go.get_position() pos.x = pos.x - 100 go.set_position(pos) elseif action_id == hash("right") and action.pressed then -- move right local pos = go.get_position() pos.x = pos.x + 100 go.set_position(pos) end end

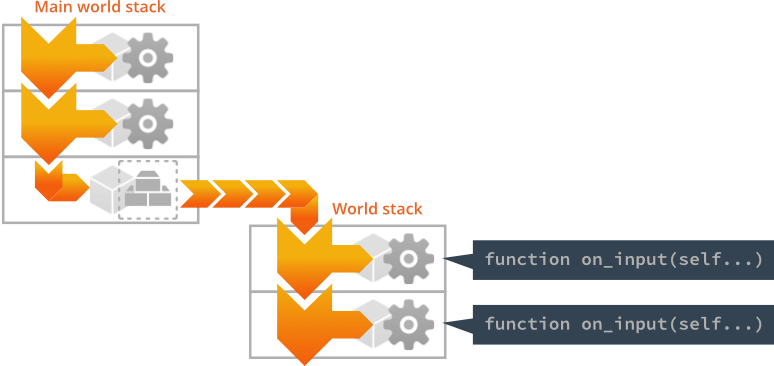

Collection proxy components must be on the main world’s stack for input to be dispatched to the components on the loaded world’s input stack. All components on a loaded world’s stack are handled before dispatch continues down the main stack:
It is a common error to forget to send
acquire_input_focus to the game object holding the collection proxy component. Skipping this step prevents input from reaching any of the components on the loaded world’s input stack.
on_input() can actively control whether actions should be passed on further down the stack or not:
false, or a return is omitted (this implies a
nilreturn which is a false value in Lua) input actions will be passed on to the next component on the input stack.

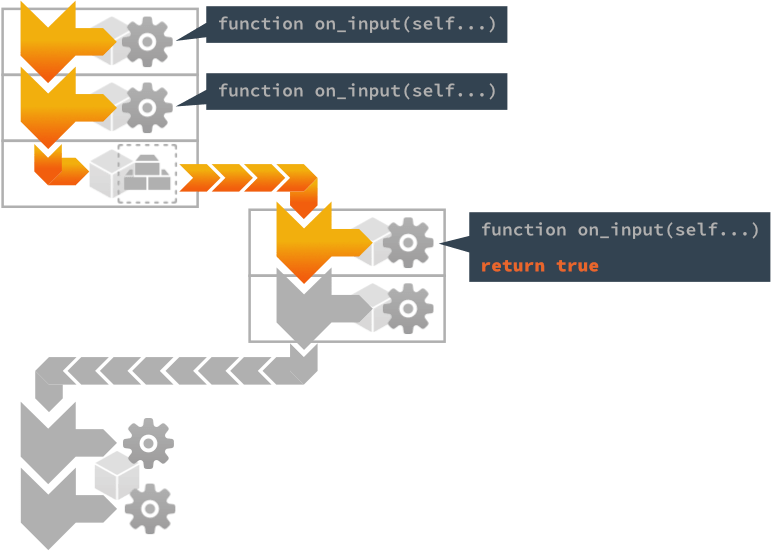

trueinput is consumed. No component further down the input stack will receive the input. Note that this applies to all input stacks. A component on a proxy-loaded world’s stack can consume input preventing components on the main stack to receive input:
There are many good use cases where input consumption provides a simple and powerful way to shift input between different parts of a game. For example, if you need a pop-up menu that temporarily is the only part of the game that listens to input:

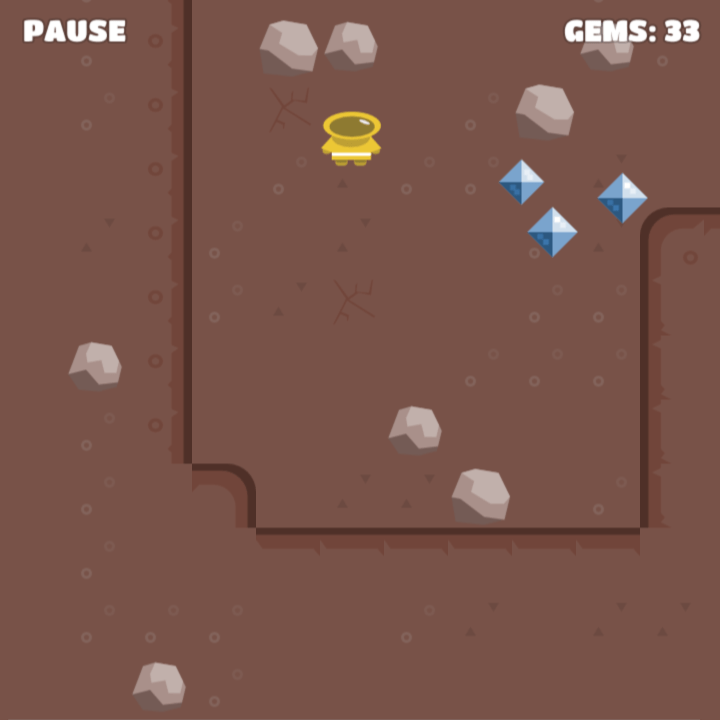

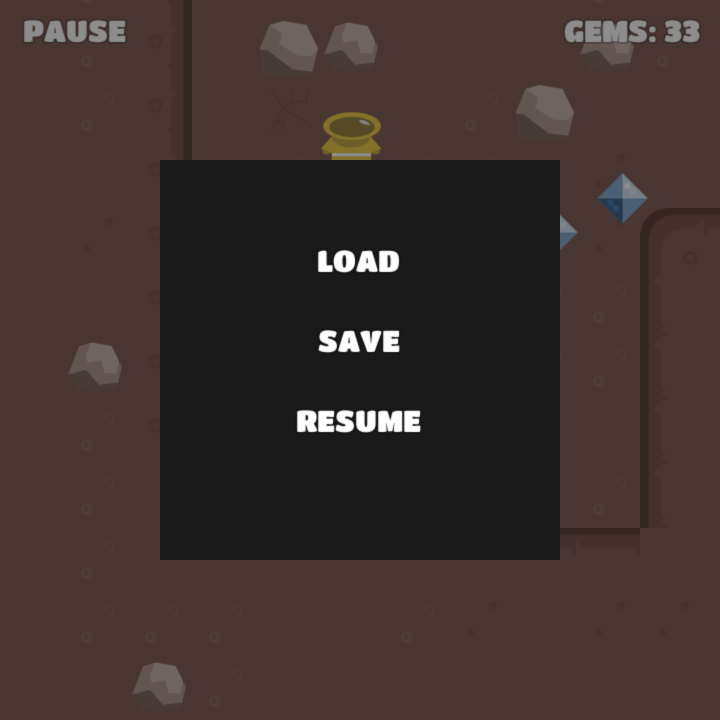

The pause menu is initially hidden (disabled) and when the player touches the “PAUSE” HUD item, it is enabled:
function on_input(self, action_id, action) if action_id == hash("mouse_press") and action.pressed then -- Did the player press PAUSE? local pausenode = gui.get_node("pause") if gui.pick_node(pausenode, action.x, action.y) then -- Tell the pause menu to take over. msg.post("pause_menu", "show") end end end
The pause menu GUI acquires input focus and consumes input, preventing any input other than what’s relevant for the pop-up menu:
function on_message(self, message_id, message, sender) if message_id == hash("show") then -- Show the pause menu. local node = gui.get_node("pause_menu") gui.set_enabled(node, true) -- Acquire input. msg.post(".", "acquire_input_focus") end end function on_input(self, action_id, action) if action_id == hash("mouse_press") and action.pressed then -- do things... local resumenode = gui.get_node("resume") if gui.pick_node(resumenode, action.x, action.y) then -- Hide the pause menu local node = gui.get_node("pause_menu") gui.set_enabled(node, false) -- Release input. msg.post(".", "release_input_focus") end end -- Consume all input. Anything below us on the input stack -- will never see input until we release input focus. return true end
Detecting when the user has clicked or tapped on a visual component is a very common operation that is needed in many games. It could be user interaction with a button or other UI element or the interaction with a game object such as a player controlled unit in a strategy game, some treasure on a level in a dungeon crawler or a quest giver in an RPG. The approach to use varies depending on the type of visual component.
For UI elements there is the
gui.pick_node(node, x, y) function that will return true or false depending on if the specified coordinate is within the bounds of a gui node or not. Refer to the API docs, the pointer over example or the button example to learn more.
For game objects it is more complicated to detect interaction since things such as camera translation and render script projection will impact the required calculations. There are two general approaches to detecting interaction with game objects:
A ready to use solution for using collision objects to detect user input can be found in the Defold-Input library asset.
In both cases there is a need to convert from the screen space coordinates of the mouse or touch event and the world space coordinates of the game objects. This can be done in a couple of different ways:
Gamepad mappings for specific hardware gamepads are set in a gamepads file. Defold ships with a built in gamepads file with settings for common gamepads:
If you need to create a new gamepad settings file, we have a simple tool to help:
It includes binaries for Windows, Linux and macOS. Run it from the command line:
The tool will ask you to press different buttons on your connected controller. It will then output a new gamepads file with correct mappings for your controller. Save the new file, or merge it with your existing gamepads file, then update the setting in “game.project”:
