属性动画

数值类的属性 (numbers, vector3, vector4 和 quaterions) 以及着色器常量都可以由内置的属性动画系统制作属性动画, 即使用 go.animate() 函数. 引擎会在属性值之间进行 “补间” 依照指定的播放和缓动模式进行播放. 你也可以自定义缓动函数.

Property animation{.inline srcset=”images/animation/property_animation@2x.png 2x”} Bounce loop

属性动画

制作游戏对象或者组件的属性动画, 可以使用函数 go.animate(). 对于 GUI 节点属性, 可以使用函数 gui.animate().

-- 设置 y 轴位置为 200
go.set(".", "position.y", 200)
-- 制作动画
go.animate(".", "position.y", go.PLAYBACK_LOOP_PINGPONG, 100, go.EASING_OUTBOUNCE, 2)

停止某个属性的所有动画, 调用 go.cancel_animations(), 对于 GUI 节点, 调用 gui.cancel_animation():

-- 停止当前游戏对象欧拉 z 轴旋转动画
go.cancel_animation(".", "euler.z")

如果取消组合属性的动画, 例如 position, 其所有子属性 (position.x, position.yposition.z) 动画也会一同取消.

属性教程 涵盖游戏对象, 组件和 GUI 节点的所有属性.

GUI 节点属性动画

几乎所有 GUI 节点属性都可以制作动画. 比如说, 把一个节点的 color 设置成透明看不见然后制作属性动画到全白使其可见 (也就是没有染色).

local node = gui.get_node("button")
local color = gui.get_color(node)
-- 节点白色动画
gui.animate(node, gui.PROP_COLOR, vmath.vector4(1, 1, 1, 1), gui.EASING_INOUTQUAD, 0.5)
-- 边框红色动画
gui.animate(node, "outline.x", 1, gui.EASING_INOUTQUAD, 0.5)
-- 位置延 x 轴移动 100 像素动画
gui.animate(node, hash("position.x"), 100, gui.EASING_INOUTQUAD, 0.5)

播放完成回调函数

动画函数 (go.animate()gui.animate()) 可以在最后一个参数上传入Lua回调函数. 当动画播放完成时会调用这个函数. 对于循环动画和用 go.cancel_animations()gui.cancel_animation() 取消的动画,不会调用回调函数. 回调函数里可以发送消息或者继续播放其他动画.

缓动

缓动决定动画基于时间的变化. 下面列出了内置的缓动函数.

以下可用于 go.animate() 函数:

go.EASING_LINEAR
go.EASING_INBACK go.EASING_OUTBACK
go.EASING_INOUTBACK go.EASING_OUTINBACK
go.EASING_INBOUNCE go.EASING_OUTBOUNCE
go.EASING_INOUTBOUNCE go.EASING_OUTINBOUNCE
go.EASING_INELASTIC go.EASING_OUTELASTIC
go.EASING_INOUTELASTIC go.EASING_OUTINELASTIC
go.EASING_INSINE go.EASING_OUTSINE
go.EASING_INOUTSINE go.EASING_OUTINSINE
go.EASING_INEXPO go.EASING_OUTEXPO
go.EASING_INOUTEXPO go.EASING_OUTINEXPO
go.EASING_INCIRC go.EASING_OUTCIRC
go.EASING_INOUTCIRC go.EASING_OUTINCIRC
go.EASING_INQUAD go.EASING_OUTQUAD
go.EASING_INOUTQUAD go.EASING_OUTINQUAD
go.EASING_INCUBIC go.EASING_OUTCUBIC
go.EASING_INOUTCUBIC go.EASING_OUTINCUBIC
go.EASING_INQUART go.EASING_OUTQUART
go.EASING_INOUTQUART go.EASING_OUTINQUART
go.EASING_INQUINT go.EASING_OUTQUINT
go.EASING_INOUTQUINT go.EASING_OUTINQUINT

以下可用于 gui.animate() 函数:

gui.EASING_LINEAR
gui.EASING_INBACK gui.EASING_OUTBACK
gui.EASING_INOUTBACK gui.EASING_OUTINBACK
gui.EASING_INBOUNCE gui.EASING_OUTBOUNCE
gui.EASING_INOUTBOUNCE gui.EASING_OUTINBOUNCE
gui.EASING_INELASTIC gui.EASING_OUTELASTIC
gui.EASING_INOUTELASTIC gui.EASING_OUTINELASTIC
gui.EASING_INSINE gui.EASING_OUTSINE
gui.EASING_INOUTSINE gui.EASING_OUTINSINE
gui.EASING_INEXPO gui.EASING_OUTEXPO
gui.EASING_INOUTEXPO gui.EASING_OUTINEXPO
gui.EASING_INCIRC gui.EASING_OUTCIRC
gui.EASING_INOUTCIRC gui.EASING_OUTINCIRC
gui.EASING_INQUAD gui.EASING_OUTQUAD
gui.EASING_INOUTQUAD gui.EASING_OUTINQUAD
gui.EASING_INCUBIC gui.EASING_OUTCUBIC
gui.EASING_INOUTCUBIC gui.EASING_OUTINCUBIC
gui.EASING_INQUART gui.EASING_OUTQUART
gui.EASING_INOUTQUART gui.EASING_OUTINQUART
gui.EASING_INQUINT gui.EASING_OUTQUINT
gui.EASING_INOUTQUINT gui.EASING_OUTINQUINT

Linear interpolation In back Out back In-out back Out-in back In bounce Out bounce In-out bounce Out-in bounce In elastic Out elastic In-out elastic Out-in elastic In sine Out sine In-out sine Out-in sine In exponential Out exponential In-out exponential Out-in exponential In circlic Out circlic In-out circlic Out-in circlic In quadratic Out quadratic In-out quadratic Out-in quadratic In cubic Out cubic In-out cubic Out-in cubic In quartic Out quartic In-out quartic Out-in quartic In quintic Out quintic In-out quintic Out-in quintic

自定义缓动

可以使用 vector 和其中的一系列值代替预置缓动函数. 矢量值从 (0) 过渡到 (1). 引擎会从矢量中取样并自动线性插值生成缓动曲线.

示例如下:

local values = { 0, 0.4, 0.2, 0.2, 0.5. 1 }
local my_easing = vmath.vector(values)

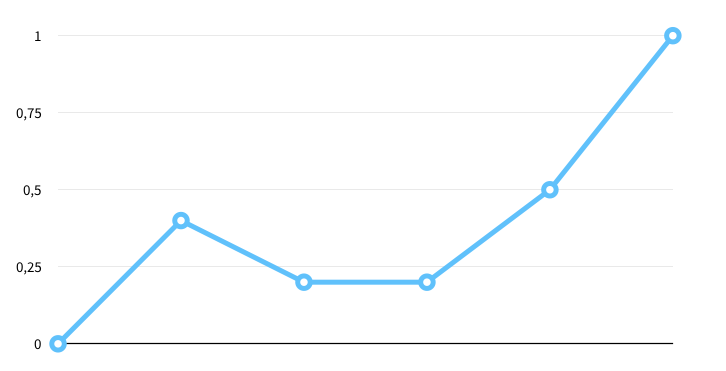

生成的缓动曲线如下:

Custom curve

下面的例子是让游戏对象的 y 轴位置依照自定义曲线从当前位置到 200 来回跳跃:

local values = { 0, 0, 0, 0, 0, 0, 0, 0,
                 1, 1, 1, 1, 1, 1, 1, 1,
                 0, 0, 0, 0, 0, 0, 0, 0,
                 1, 1, 1, 1, 1, 1, 1, 1,
                 0, 0, 0, 0, 0, 0, 0, 0,
                 1, 1, 1, 1, 1, 1, 1, 1,
                 0, 0, 0, 0, 0, 0, 0, 0,
                 1, 1, 1, 1, 1, 1, 1, 1 }
local square_easing = vmath.vector(values)
go.animate("go", "position.y", go.PLAYBACK_LOOP_PINGPONG, 200, square_easing, 2.0)

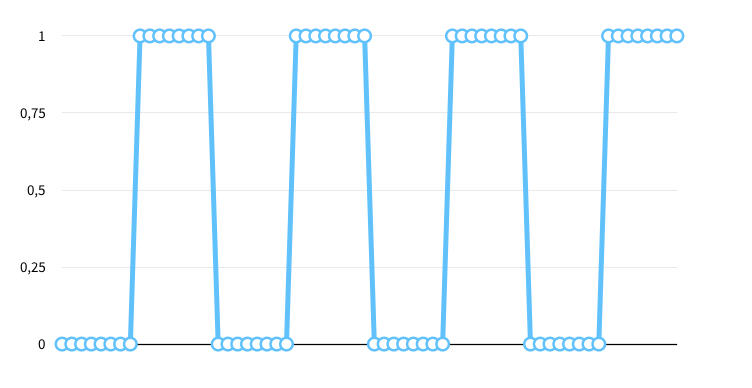

Square curve
